Toxic effect of cyanobacterial (blue–green algae) extracts as natural pesticides for the control of Spodoptera frugiperda (J. E. Smith) (Lepidoptera: Noctuidae)

Abstract

Background

The Spodoptera frugiperda (J. E. Smith) (Lepidoptera: Noctuidae) is a cosmopolitan polyphagous pest that feeds on nearly 80 species of plants The pest can cause upto 100% damage to crops if neglected. It is also resistant to the most of the chemical molecules available in the market, so it is necessary to identify alternate technology to combat this pest.

Results

The crude cyanobacterial extracts of hexane, petroleum ether, ethanol and methanol extracts of Spirulina sp. and Nostoc muscorum were evaluated against second instar larvae of S. frugiperda through diet overlay method of bioassay. The results revealed that N. muscorum hexane extract and N. muscorum petroleum ether extract recorded the lowest LC₅₀ value of 49.09 and 61.37 ppm, respectively. This was followed by Spirulina hexane extract, Spirulina petroleum ether extract, N. muscorum ethanol extract, N. muscorum methanol extract, Spirulina ethanol and methanol extract which were recorded 173.16, 227.22, 530, 730, 970 and 1000 ppm, respectively. Further, their potential effects on different biological parameters of S. frugiperda, viz. larval duration, pupal duration, percent pupation, pupal weight, pupal malformation, adult malformation, percent adult emergence, fecundity, and male and female adult longevity, were studied. The significant effects on different biological parameters were recorded by N. muscorum hexane and petroleum ether extract, followed by Spirulina hexane and petroleum ether extract. Similarly, an experiment was repeated for the confirmation of the first set of results, which followed by a similar trend. The first-ever novel study on S. frugiperda concluded that crude extracts of Spirulina sp. and N. muscorum extracts showed significant effects in causing larval mortality and affecting different biological parameters.

Conclusions

The experimental results can be recommended as a potential source of natural pesticides for the control of S. frugiperda.

Background

Cyanobacteria also called as blue–green algae are morphologically diverse groups of prokaryotic, photosynthetic organisms that flourish in diverse types of habitats. The cyanobacterial species, namely Spirulina sp. and N.ostoc muscorum, are free-living microorganism that inhabits both terrestrial and freshwater aquatic environments. Most species of cyanobacteria are live in freshwater, marine, or terrestrial habitat (Cameron 1960). Spirulina is a freshwater spiral unicellular prokaryote (Mitchell et al. 1990). Spirulina thrives at a pH of 8 and above and a temperature of around 25–30 °C (Supramaniyan and Jeeji 1992). It is beneficial in the treatment of diabetes, arthritis, anemia, cardiovascular disease and cancer (Mendiola et al. 2007). Though it is a beneficial for human beings, its toxic effect on insects reported by Aly and Abdou (2010) and Rania et al. (2020) found that water and ethanolic extract of S. platensis increased larval mortality and affected different biological parameters of Spodoptera littoralis (Boisduval). N. muscorum (cyanobacteria) is a free-living microorganism that inhabits both terrestrial and freshwater aquatic environments (Cameron 1960). N. muscorum cells are filamentous, gram-negative green–brown-colored algal cells that can form spores under desiccation conditions. N. muscorum is important for the nutrient cycling of carbon and nitrogen fixation within the soil ecosystems. The ideal environment for N. muscorum is one with a pH in the range of 7.0–8.5, with a lower pH limit of 5.7 and N. muscorum grows best when light intensity is less than that of direct sunlight, but can continue to grow and fix nitrogen in the presence of glucose and absence of sunlight (Allison et al. 1937). Due to the rapid rise in industrialization and urbanization, environmental pollution is a serious issue around the world; in particular, the widespread use of chemical pesticides has led to several environmental issues in many different nations (Aydinalp and Porca 2004). There is an urgent need for alternative management approaches since the overuse of conventional pesticides to eradicate insect pests disturbs ecosystem stability and breeds pests with greater pesticide resistance (Mohan and Gujar 2003).

The polyphagous pest fall armyworm, Spodoptera frugiperda (J. E. Smith) (Lepidoptera: Noctuidae), has been observed feeding on all parts of the plant causing economic damage to maize, rice, sorghum, millet, sugarcane, vegetable crops and cotton, as well as more than 80 other crop species (Chormule et al. 2019). It is invasive, wreaking havoc on cereal crops in general and maize crops in particular. This pest is a tropical and subtropical American species that was first reported on maize in Shivamogga, Karnataka, India, in May and June of 2018 (Sharanabasappa et al. 2018). The pest was thought to have migrated from Africa, where it was initially discovered in late 2016 (Nagoshi et al. 2019) and was found in 44 African countries (Rwomushana et al. 2018). The maize is a more favoured host, with infection rates ranging from 6 to 100% in Africa and India (Mallapur et al. 2018). In the absence of appropriate management techniques, the FAW is projected to cause maize yield losses in Africa ranging from 8.3 to 20.6 MT per year (Day et al. 2017).

The use of chemical pesticides has played a major role in increasing agricultural production and also in protecting crops from injury caused by insect pests. But the overuse of traditional pesticides to control insect pests leads to disturbance in ecosystem stability and increased resistance to pesticides in pests; therefore, there is an urgent need for alternative control methods (Mohan and Gujar 2003; Kariyanna 2019). The need for natural pesticides is one of the scientific research goals (Rahim and Mohamed 2013). Botanical pesticides are environmentally friendly alternative means to protect crops (Asaraja and Sahayaraj 2013). Examining natural alternative pesticides and extracts to identify new pesticides provides a method for researchers to uncover new chemical entities that have never been produced. Although plants hold considerable promise for the development of new pesticides, cyanobacteria (blue–green algae) make up the majority of the world's biomass and are a largely unexplored source. The insecticidal activity of Spirulina sp. and Nostoc muscorum extracts were not explored for their efficacy against S. frugiperda. Keeping this in view, an endeavor was made to study the toxic effect of cyanobacterial or blue–green algal extracts as natural pesticides for the management of fall armyworm, S. frugiperda.

Methods

Source of cyanobacteria and media suitable for their cultivation

The pure cultures of cyanobacterial species Spirulina sp. and N. muscorum were procured from the National Centre for Industrial Microorganisms (NCIM), Pune, Maharashtra. Spirulina media (NCIM, Pune) and Zarrouk media (Zarrouk, 1996) were prepared for mass production of Spirulina sp. Fogs media (NCIM, Pune) and BG-11 media (Allen and Stanier 1968) for mass production of N. muscorum.

Growth conditions and mass multiplication of cyanobacterial cultures (Spirulina sp. and N. muscorum)

A loopful of pure culture were inoculated into test tubes containing 10 ml liquid media for subculturing purposes in a laminar airflow, plugged with cotton wool and kept in a growth chamber which was set at a temperature of 25 ± 2 °C and 75 ± 2 percent relative humidity with a constant illumination of a light source. Cultures attained maximum growth after one month of inoculation, and further 100 ml liquid media was prepared and inoculated with 1 ml of culture and then kept in a growth chamber. Similarly, the same procedures were followed for 500, 1000, 2000 and 3000 ml liquid media to get a sufficient quantity of culture according to Rahim and Hamed (2013) with a slight modification. As the dry weight of the culture is very low, so it is required to maintain in different quantities of liquid media (Figs. 1 and 2).

Fig. 1

Mass production of Spirulina sp. a Spirulina sp., b subculturing of Spirulina sp. in 10 ml broth, c subculturing of Spirulina sp. in 100 ml broth, d subculturing of Spirulina sp. in 500 ml broth, e subculturing of Spirulina sp. in 1000 ml broth, f subculturing of Spirulina sp. in 3000 ml broth, g harvesting of Spirulina sp. biomass, h Spirulina sp. biomass, i shade drying of Spirulina sp., j dried form of Spirulina sp, k powder form of Spirilina sp

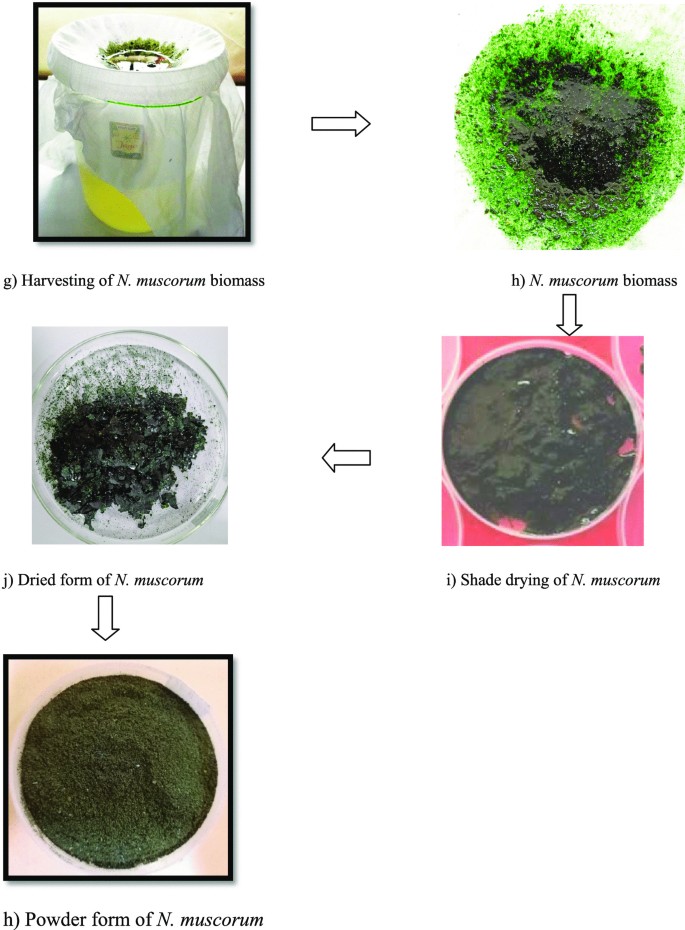

Fig. 2

Mass production of N. muscorum, a N. muscorum, b subculturing of N. muscorum in 10 ml broth, c subculturing of N. muscorum in 100 ml broth, d subculturing of N. muscorum in 500 ml broth, e subculturing of N. muscorum in 1000 ml broth, f subculturing of N. muscorum in 3000 ml broth, g harvesting of N. muscorum biomass, h N. muscorum biomass, i shade drying of N. muscorum, j dried form of N. muscorum, h powder form of N. muscorum

Harvesting of biomass and powder preparation of Spirulina sp. and N. muscorum

After complete growth of cultures, it was filtered through a muslin cloth and shade dried at room temperature for one week. Cultures were powdered by using an electric blender. Dry powder forms of Spirulina sp. and N. muscorum were kept in the refrigerator (4 °C) until further use (Figs. 1 and 2).

Extraction of Spirulina sp. and N. muscorum

Extraction was carried out by taking five grams of Spirulina sp. and N. muscorum powder. Each species were extracted using two different solvents like hexane and petroleum ether (PE) through the Soxhlet apparatus, whereas ethanol and methanol were used for extraction through the mechanical shaking method.

Soxhlet extraction

Extractions were carried out according to Rahim and Hamed (2013) with a slight modification. Five grams of the powdered material was extracted using 120 ml of hexane and petroleum ether in automated Soxhlet apparatus. The extract was concentrated under a desiccator to yield crude extracts. Standard stock solutions were prepared by dissolving crude material in dimethyl sulfoxide and stored at 4 °C.

Mechanical shaking method of extraction

Five grams of Spirulina sp. and N. muscorum powder was soaked in 50 ml of ethanol and methanol solvent and then kept in a mechanical shaker for three days continuously for the complete extraction of bioactive compounds, and then, it was filtered through Whatman no. 1 filter paper after that extract was kept in room temperature for about one day for the evaporation of solvents and to get a concentrated form of crude extract. Standard stock solutions were prepared by dissolving crude material in dimethyl sulfoxide and stored at 4 °C. Extractions were carried out according to Saber et al. (2018) with a slight modification.

Bioassay study of cyanobacterial extracts against fall armyworm, S. frugiperda

Insect rearing

The larvae of S. frugiperda were reared using an insect-breeding circular dish containing the maize cut leaf bits and closed with a lid and maintained at 25 ± 2 °C, 75 ± 2% RH and L12: D12 photoperiod. The emerged adults were allowed into oviposition cages. In these cages, paper towels were lined as an oviposition substrate. In each cage, pair of male and female adults were released. The adults were fed with 10% honey solution, soaked on cotton pads offer in small plastic caps inside the cages and replaced daily. Eggs were collected and kept in an insect-breeding circular dish for hatching. The eggs were examined at an interval of 12 h for hatching. The second instar larvae were used for the bioactivity test (Sharanabasappa et al. 2018b). Larvae were also reared on an artificial diet in the laboratory and the diet was prepared according to Omar and David (2019).

Bioassay test

The bioassay test was conducted by using the diet overlay method of bioassay. A series of six different concentrations, viz. 0, 100, 200, 400, 800 and 1600 ppm, were prepared from the stock solutions extracted through the Soxhlet apparatus and 0, 500, 1000, 2000, 4000 and 8000 ppm were prepared from the stock solutions extracted through mechanical shaking method, based on bracketing technique.

Diet overlay method

In the diet overlay method, the artificial diet of FAW was poured into a multi-well cavity tray. After drying to each well, 100 µl of the extract was gently smeared on the surface and allowed for the evaporation of solvents under room temperature until the formation of a thin layer of the extract on the diet. In each well, a one-second instar larva was placed for feeding. Thus, for each treatment, 40 larval individuals were used. After the exhaustion of the treated diet, a fresh diet without extract was provided until the larvae enter into pupation (Omar et al. 2019). LC₅₀ values were calculated after 96 h. Similarly, a second set of experiments was conducted for the confirmation of the first set of bioassay results.

Effect of LC₅₀ values on different biological parameters

The toxic effect of Spirulina sp. and N. muscorum extracts at their LC₅₀ values on some biological parameters such as larval and pupal duration, pupation, adult emergence, pupal weight, pupal and adult malformation, male and female adult longevity and fecundity was recorded.

Statistical analysis

The LC₅₀ values were calculated after 96 h of treatments and corrected according to the Abbott formula (Abbott 1925). The data were analyzed using the probit analysis (Finney 1971) for the determination of median lethal concentration (LC₅₀) and their 95% confidence limits (CLs) by using the POLO plus (Leora software 2002, Brkeliy, CA, USA). Bioassay data on different biological parameters of S. frugiperda were analyzed using one-way ANOVA (analysis of variance) with DMRT (Duncan multiple range test) using spss, wasp 2 (Ashok kumar, J. ICAR Research complex for Goa, Ela, old Goa, India) and opstat software (Sheoran, O. P., COBS & H CCS HAU, Hisar). The values were transformed to square root for the parameters, viz. larval duration, pupal duration, pupal weight, fecundity as well as male and female adult longevity. The values were transformed to arc sine for the parameters, viz. percent pupation, percent adult emergence, pupal and adult malformation. The obtained data were also statically calculated through excel for windows computer program to determine P value, F value and degrees of freedom.

Results

The diet overlay method of bioassay revealed that among different treatments, N. muscorum hexane extract and N. muscorum petroleum ether extract were the most toxic and recorded the lowest LC₅₀ values of 49.09 and 61.37 ppm, respectively. This was followed by Spirulina hexane extract (173.16 ppm), Spirulina petroleum ether extract (227.22 ppm), N. muscorum ethanol extract (530 ppm) and N. muscorum methanol extract (730 ppm). Spirulina methanol extract and Spirulina ethanol extract were recorded high LC₅₀ values of 970 and 1000 ppm, respectively. Similar results were obtained during the second set of experiment wherein N. muscorum hexane and N. muscorum petroleum ether extract were recorded with the lowest LC₅₀ values of 55.01 and 78.73 ppm, respectively, and Spirulina methanol extract recorded with a high LC₅₀ value of 960 ppm (Table 1).

Table 1 Insecticidal activity of Spirulina sp. and Nostoc muscorum extracts against Spodoptera frugiperda

Toxic effects of Spirulina sp. and N. muscorum extracts at their LC₅₀ values on different biological parameters of S. frugiperda

Larvae of S. frugiperda that were fed on a diet treated with different cyanobacterial extracts at their LC₅₀ level had a significant effect on different biological parameters, as compared to their control.

Larval duration

Potential toxic activities of crude cyanobacterial extracts on the larval duration of S. frugiperda were observed. Second instar larvae of S. frugiperda fed on a diet treated with N. muscorum hexane extract at their LC₅₀ level significantly increased the larval duration (18.33 days). This was followed by N. muscorum petroleum ether extract (17.73 days) and Spirulina hexane extract (17.33 days) and these treatments were at par with each other and significantly superior to the rest of the treatments. The remaining treatments, viz. Spirulina petroleum ether extract, N. muscorum ethanol extract, N. muscorum methanol extract, Spirulina ethanol extract and Spirulina methanol extract, were moderately effective in increasing the larval duration with a mean of 17, 16.83, 16.66, 16.50 and 16.16 days, respectively, as compared to their control which was recorded a low larval duration (15.33 days). Similarly, the second set of experiments was conducted for the confirmation of the first set results and the same trend was observed.

The pooled data on larval duration indicated that among different treatments N. muscorum hexane extract significantly increased the larval duration (18.42 days). This was followed by N. muscorum petroleum ether extract (17.73 days) and Spirulina hexane extract (17.42 days) and these treatments were at par with each other and significantly superior over the rest of the treatments. The remaining treatments, viz. Spirulina petroleum ether extract, N. muscorum ethanol extract, N. muscorum methanol extract, Spirulina ethanol extract and Spirulina methanol extract, were moderately effective in increasing the larval duration with means of 16.83, 16.67, 16.50, 16.33 and 16.17 days, respectively, as compared to their control (15.17 days) (Table 2).

Table 2 Toxic effect of Spirulina sp. and Nostoc muscorum extracts at their LC₅₀ values on larval and pupal duration of Spodoptera frugiperda

Pupal duration

In the case of pupal duration, second instar larvae of S. frugiperda fed on a diet treated with N. muscorum hexane extract at their LC₅₀ level significantly increased the pupal duration (13.83 days), followed by N. muscorum petroleum ether extract (12.83 days) and Spirulina hexane extract (12.33 days) and these treatments were at par with each other and significantly superior to rest of the treatments. The remaining treatments, viz. Spirulina petroleum ether extract, N. muscorum ethanol extract, N. muscorum methanol extract, Spirulina ethanol extract and Spirulina methanol extract, were moderately effective in increasing the pupal duration with means of 12, 11.83, 11.50, 11.33 and 10.66 days, respectively, as compared to their control (10.16 days). Similarly, an experiment was repeated and results, followed a similar trend wherein N. muscorum hexane extract significantly prolonged the pupal duration with a mean of 13.83 days. This was followed by N. muscorum petroleum ether extract (13 days), whereas the control population significantly recorded low pupal duration with a mean of 10 days.

The pooled data indicated that among different treatments, N. muscorum hexane extract significantly increased the pupal duration (13.83 days) followed by N. muscorum petroleum ether extract (12.92 days) and Spirulina hexane extract (12.42 days) and these treatments were at par with each other and significantly superior to rest of the treatments. The remaining treatments, viz. Spirulina petroleum ether extract, N. muscorum ethanol extract, N. muscorum methanol extract, Spirulina ethanol extract and Spirulina methanol extract, were moderately effective in increasing the pupal duration with means of 12.08, 11.92, 11.50, 11.25 and 10.75 days, respectively, as compared to their control which was recorded a low pupal duration (10.08 days) (Table 2).

Percent pupation

The second instar larvae of S. frugiperda fed on a diet treated with N. muscorum hexane extract at their LC₅₀ level showed a significant reduction in percent pupation (51.66%). This was followed by N. muscorum petroleum ether extract, Spirulina hexane extract, Spirulina petroleum ether extract and N. muscorum ethanol extract and these treatments were at par with each other and significantly superior to the rest of the treatments with means of 53.33, 54, 55 and 56.66%, respectively. The remaining treatments N. muscorum methanol extract, Spirulina ethanol extract and Spirulina methanol extract were minimum effect in reducing percent pupation with means of 58.33, 59 and 60%, respectively, but significantly superior over control (98.66%). A similar trend was followed during the second set of experiments wherein N. muscorum hexane extract and N. muscorum petroleum ether extract significantly decreased the percent pupation with a mean of 50 and 51.66%, respectively, as compared to 99% pupation in control.

In the case of pooled data, the results revealed that among different treatments, N. muscorum hexane extract at their LC₅₀ level showed a significant reduction in percent pupation (50.83%), followed by N. muscorum petroleum ether extract, Spirulina hexane extract, Spirulina petroleum ether extract and N. muscorum ethanol extract and these treatments were at par with each other and significantly superior to rest of the treatments with means of 52.50, 53.67, 54.50 and 55.83%, respectively. The remaining treatments, viz. N. muscorum methanol extract, Spirulina ethanol extract and Spirulina methanol extract, were minimum effect in reducing % pupation with means of 57.50, 58.67 and 60%, respectively, and these treatments were significantly superior over control which was recorded higher pupation with a mean of 98.83% (Table 3).

Table 3 Toxic effect of Spirulina sp. and Nostoc muscorum extracts at their LC₅₀ values on pupation and pupal weight of Spodoptera frugiperda

Pupal weight

Similarly, in the case of pupal weight among different treatments N. muscorum hexane extract and N. muscorum petroleum extract significantly reduced the pupal weight with means of 0.12 and 0.15 g, respectively, followed by Spirulina hexane extract, Spirulina petroleum ether extract, N. muscorum ethanol extract and these treatments were at par with each other and recorded 0.17, 0.19 and 0.20 g, respectively. N. muscorum methanol extract (0.21 g), Spirulina ethanol extract (0.22 g) and Spirulina methanol extract (0.23 g) were moderately effective in reducing pupal weight but significantly superior to the control which was recorded the highest pupal weight with a mean of 0.29 g. In the same manner, an experiment was repeated and the results followed the same trend as that of the first set of experiments.

The pooled data indicated that among different treatments, N. muscorum hexane extract significantly reduced the pupal weight with a mean of 0.12 g. This was followed by N. muscorum petroleum ether extract (0.15 g) and the treatments Spirulina hexane extract, Spirulina petroleum ether extract, N. muscorum ethanol extract were at par with each other and recorded 0.18, 0.19 and 0.19 g, respectively. N. muscorum methanol extract (0.20 g), Spirulina ethanol extract (0.22 g) and Spirulina methanol extract (0.23 g) were least effective in reducing pupal weight but significantly superior to the control which was recorded the highest pupal weight with a mean of 0.29 g (Table 3).

Pupal malformation

The second instar larvae of S. frugiperda fed on a diet treated with N. muscorum hexane and N. muscorum petroleum ether extract at their LC₅₀ values showed a significant increase in pupal malformation with a mean of 56.67 and 53.33%, respectively, followed by Spirulina hexane extract (49%) and Spirulina petroleum ether extract (46.67%) and the treatments N. muscorum ethanol extract (42.33%), N. muscorum methanol extract (40%), Spirulina ethanol extract (38%) and Spirulina methanol extract (36.67%) were at par with each other but significantly superior over control, which had no effect in causing pupal malformation (0%). Likewise, the experiment was repeated for the confirmation of previous results and the same trend was followed during the second set of observations.

The pooled data showed that among different treatments N. muscorum hexane and N. muscorum petroleum ether extract showed a significant increase in pupal malformation with means of 57.50 and 54.17%, respectively, followed by Spirulina hexane extract (49.83%) and Spirulina petroleum ether extract (47.50%) and the treatments N. muscorum ethanol extract (43.50%), N. muscorum methanol extract (41.33%), Spirulina ethanol extract (39.33%) and Spirulina methanol extract (38%) were at par with each other but significantly superior over control, which was no effect in causing pupal malformation (0%) (Table 4) (Fig. 3A). Pupal and adult intermediates were also observed (Fig. 4).

Table 4 Toxic effect of Spirulina sp. and Nostoc muscorum extracts at their LC₅₀ values on pupal and adult malformation of Spodoptera frugiperda

Fig. 3

A Pupal malformation of S. frugiperda resulted from the effect of Spirulina sp and N. muscorum extracts, B normal pupa

Fig. 4

Pupal–adult intermediates of S. frugiperda resulted from the effect of cyanobacterial extracts

Adult malformation

Similarly, in case of adult malformation, among different treatments N. muscorum hexane extract and N. muscorum petroleum ether extract at their LC₅₀ values significantly increased the adult malformation with means of 58 and 53%, respectively, followed by Spirulina hexane extract (43.33%) and the remaining treatments like Spirulina petroleum ether extract (39%), N. muscorum ethanol extract (38%), N. muscorum methanol extract (36.33%), Spirulina ethanol extract (34.66%) and Spirulina methanol extract (31.33%) were at par with each other and significantly superior to control, which had no effect in causing adult malformation (0%). Similarly, the experiment was repeated in the second set for the confirmation of the first set of results.

The pooled data indicated that among different treatments N. muscorum hexane extract and N. muscorum petroleum ether extract at their LC₅₀ values significantly increased the adult malformation with means of 58.17 and 53.17%, respectively, followed by Spirulina hexane extract (44.50%) and the remaining treatments like Spirulina petroleum ether extract (39.17%), N. muscorum ethanol extract (38.17%), N. muscorum methanol extract (36.50%), Spirulina ethanol extract (34.83%) and Spirulina methanol extract (31.50%) were at par with each other and significantly superior to control, which was no effect in causing adult malformation (0%) (Table 4) (Fig. 5A–C).

Fig. 5

A Adult malformation of S. frugiperda resulted from the effect of different cyanobacterial extracts, B normal male, C normal female

Percent adult emergence

The second instar larvae of S. frugiperda fed on a diet treated with N. muscorum hexane extract at their LC₅₀ level significantly reduced the percent adult emergence with a mean of 50%. This was followed by N. muscorum petroleum ether extract, Spirulina hexane extract, Spirulina petroleum ether extract, N. muscorum ethanol extract, N. muscorum methanol extract and Spirulina ethanol extract which were at par with each other and recorded 51.66, 52.33, 53.33, 55, 56.66 and 56.66%, respectively. Spirulina methanol extract (58.33%) was the least effective in reducing percent adult emergence but significantly superior over control which was recorded a high percent adult emergence (98%). The study was repeated for the confirmation of previous results and the observations followed a similar trend.

The pooled data results revealed that among different treatments, N. muscorum hexane extract at their LC₅₀ level significantly reduced the percent adult emergence with a mean of 50.83%. This was followed by N. muscorum petroleum ether extract, Spirulina hexane extract, Spirulina petroleum ether extract, N. muscorum ethanol extract, N. muscorum methanol extract and Spirulina ethanol which were at par with each other and recorded 52, 52.83, 54.17, 55.83, 57.17 and 57.50%, respectively. Spirulina methanol extract (59.17%) was least effective in reducing percent adult emergence but significantly superior over control (98.17%).

Fecundity

With respect to fecundity S. frugiperda at their LC₅₀ value caused a significant reduction in the number of eggs laid by the female in all the treatments than their control. Among the different treatments, N. muscorum hexane extract significantly recorded the lowest number of eggs with a mean of 533 eggs. This was followed by N. muscorum petroleum ether extract (600.66 eggs) and Spirulina hexane extract (619 eggs), which were significantly superior to the rest of the treatments and the treatments Spirulina petroleum ether extract, N. muscorum ethanol extract, N. muscorum methanol extract, Spirulina ethanol extract and Spirulina methanol extract were moderately effective in recording a low number of eggs with means of 645.33, 720.33, 723.66, 733.66 and 749 eggs, respectively, and these treatments were at par with each other but significantly superior over control which has recorded the highest number of eggs (1064.66 eggs). The same trend was followed during the second set of experiments.

The pooled data indicated that among different treatments, N. muscorum hexane extract significantly recorded the lowest number of eggs with a mean of 532.17 eggs, followed by N. muscorum petroleum ether extract (599.83 eggs), Spirulina hexane extract (618.17 eggs) and Spirulina petroleum ether extract (644.50 eggs) which were significantly superior to the rest of the treatments and the treatments, N. muscorum ethanol extract, N. muscorum methanol extract, Spirulina ethanol extract and Spirulina methanol extract were moderately effective in recording the lowest number of eggs with a mean of 719.50, 722.83, 732.83 and 748.17 eggs, respectively, and these treatments were at par with each other but significantly superior over control which was recorded the highest number of eggs (1065.67 eggs) (Table 5).

Table 5 Toxic effect of Spirulina sp. and Nostoc muscorum extracts at their LC₅₀ values on adult emergence and fecundity of Spodoptera frugiperda

Male adult longevity

The second instar larvae of S. frugiperda fed on a diet treated with N. muscorum hexane extract at their LC₅₀ significantly reduced the male adult longevity (5.16 days). This was followed by N. muscorum petroleum ether, Spirulina hexane extract, Spirulina petroleum ether extract and N. muscorum ethanol extract which were at par with each other with means of 5.91, 6.16, 6.50 and 6.66 days, respectively, and the remaining treatments like N. muscorum methanol extract (6.83 days), Spirulina ethanol extract (6.83 days) and Spirulina methanol extract (7 days) were the least effective in reducing male adult longevity but significantly superior to control (8 days). Likewise, the experiment was repeated and the observations followed a similar trend.

The pooled data results indicated that among different treatments N. muscorum hexane extract (5.08 days) and N. muscorum petroleum ether (5.83 days) at their LC₅₀ significantly reduced the male adult longevity. These were followed by Spirulina hexane extract, Spirulina petroleum ether extract and N. muscorum ethanol extract which were at par with each other with means of 6.08, 6.33 and 6.50 days, respectively, and the remaining treatments like N. muscorum methanol extract, Spirulina ethanol extract and Spirulina methanol extract were the least effective in reducing male adult longevity but significantly superior to control and recorded 6.67, 6.75, 6.92 days, respectively, than their control which was recorded higher male adult longevity (8 days) (Table 6).

Table 6 Toxic effect of Spirulina sp. and Nostoc muscorum extracts at their LC₅₀ values on male and female adult longevity of Spodoptera frugiperda

Female adult longevity

Similarly, female adult longevity was significantly reduced by N. muscorum hexane extract (7.16 days). This was followed by N. muscorum petroleum ether extract and Spirulina hexane extract with a mean of 7.83 and 8 days, respectively, and the remaining treatments like Spirulina petroleum ether extract, N. muscorum ethanol extract, N. muscorum methanol extract, Spirulina ethanol extract and Spirulina methanol extract were at par with each other and recorded 8.5, 8.66, 8.83, 8.83 and 9 days, respectively, and showed significant difference over control (10.83 days) and similar trends were observed in second set of the experiment.

In the case of pooled data, the results revealed that N. muscorum hexane extract at their LC₅₀ values significantly decreased the female adult longevity with a mean of 7.08 days. This was followed by N. muscorum petroleum ether extract (7.75 days) extract and Spirulina hexane extract (7.92 days) and the remaining treatments like Spirulina petroleum ether extract, N. muscorum ethanol extract, N. muscorum methanol extract, Spirulina ethanol extract and Spirulina methanol extract were at par with each other and recorded 8.33, 8.50, 8.67, 8.75 and 9 days, respectively, and showed significant difference over control which was recorded high female adult longevity (10.75 days) (Table 6).

The overall results revealed that crude cyanobacterial extracts of Spirulina sp. and N. muscorum, in general, had a potential effect against larvae and other developmental stages of S. frugiperda. However, the degree of toxicity varied among different extracts wherein N. muscorum hexane extract and N. muscorum petroleum ether extract were proved to be the most effective against different biological parameters of S. frugiperda, followed by Spirulina hexane extract and Spirulina petroleum ether extract. Since it is of the first kind of study, similar kinds of studies were not reported against S. frugiperda but some other algae and cyanobacteria having insecticidal properties against other crop pests were reported. However, from a larger perspective, cyanobacterial extracts were also a type of biopesticides so, extracts of plant-originated biopesticides were utilized for discussion.

Discussion

The increase in the larval and pupal periods may be due to the toxicant may bind to the midgut epithelium and affecting the digestive system this results in decreasing the efficiency of conversion of ingested food to the efficiency of conversion of digested food, this may also affect the percent pupation and pupal weight (Mandeep et al. 2019). An increase in pupal and adult malformation may be due to the effect of the toxicant during metamorphosis and a decrease in adult longevity may be due to a decrease in sugar, carbohydrate and fats, etc. in the body of the insect which are required for survival of adults and this may results in lower production of eggs (Mohan et al. 2013).

The insecticidal activity of N. muscorum and Spirulina sp. extracts on different biological parameters of S. frugiperda in the present study are in line with the insecticidal activity of other cyanobacterial, algal and plant extracts reported by the many authors, viz. hexane extract of Inula racemosa Hook, when mixed with diet against Spodoptera litura (Fab) lead to a significant increase in larval duration than the control. Later significantly affected pupal malformation, decreased adult emergence, male and female adult longevity (Mandeep et al. 2019). Similarly, hexane extract of Eurybia divaricate (L.) (Asterace) significantly increased larval and pupal duration of S. litura (Amala et al. 2021), hexane extract of Cascabela peruviana (L.) (Apocynaceae) significantly increased the pupal and adult malformation of S. litura than the control (Ramanan and Muthukumaran 2020), hexane extract of castor seed resulted in growing inhibition of S. frugiperda and in prolonged larval and pupal durations than the control (López et al. 2010) and petroleum ether extracts of Ulva lactuca caused the highest percentages of inhibition of adult emergence in S. littoralis than the control (Moustafa et al. 2014).

The results are contradictory with some of the reports such as ethanolic extract of N. muscorum and A. fertilissima significantly increased the larval and pupal durations than the control. Later noticed significantly decreased percent pupation, pupal weight and percent moth emergence of Agrotis ipsilon (Hufnagel) (Rahim and Mohamed 2013), ethanolic extract of the N. carneum significantly prolonged the larval and pupal duration of S. littoralis, whereas P. kessleri and N. carneum distinctly reduced the formation of pupae and significantly decreased the pupal weights, adult emergence, fecundity, and male and female longevity and increased pupal and adult malformation (Saber et al. 2018), ethanol extract of S. platensis significantly increased larval, pupal durations, pupal, adult malformation and significantly decreased fecundity of S. littoralis (Rania et al. 2020), and hydroalcoholic extracts of three seaweeds Sargassum asperifolium, S. dentifolium and S. linifolium affected different biological parameters of S. littoralis and S. frugiperda (Matloub et al. 2012). These contradictory results may be because each solvent has the capability of dissolving different bioactive compounds; moreover, hexane and petroleum ether extracts of N. muscorum and Spirulina sp. were not reported against S. frugiperda and results also varied with a different strain of cyanobacterial species, method of extraction and varied with each species of insects.

Conclusions

The novel study of the insecticidal activity of Spirulina sp. and N. muscorum extracts had a potential impact on larval mortality and different biological parameters of S. frugiperda. From the various cyanobacterial extracts, N. muscorum hexane and petroleum ether extracts recorded low LC₅₀ values and significantly affected different biological parameters, viz. larval duration, pupal duration, pupation, pupal weight, pupal malformation, adult malformation, adult emergence, fecundity, and male and female adult longevity. These treatments were followed by Spirulina hexane and petroleum ether extract. The cyanobacterial extracts of Spirulina sp. N. muscorum were also a type of biopesticides which are eco-friendly in nature and serve as a natural and alternative source for the management of fall armyworm and other crop pests in various crop ecosystems.
