Synergistic effect of Metarhizium flavoviride and Serratia marcescens on western flower thrips, Frankliniella occidentalis Pergande (Thysanoptera: Thripidae)
Egyptian Journal of Biological Pest Control volume 34, Article number: 49 (2024)
Abstract
Background
The western flower thrips (WFT), Frankliniella occidentalis Pergande (Thysanoptera: Thripidae), is an important polyphagous pest in both greenhouses and fields. Due to its wide range of host plants and short life cycle, the pest causes overwhelming damage and has led to the destruction of many crops. The combined use of entomopathogenic microorganisms could be an important option to overcome the difficulties in controlling WFT. The virulence of thirty local entomopathogen isolates was tested on WFT, and possibilities of combined application for WFT control were investigated.
Results
All isolates were virulent for both the second larval stage and the adult stage of WFT. Serratia marcescens Se9 was the most virulent bacterial isolate with a mortality of 54 and 69.6% against the second larval and the adult stages of WFT, respectively. The LC50 values of the Se9 isolate were determined to be 4 × 106 cfu/ml for the second larval stage and 6.3 × 106 cfu/ml for the adult stage. Among the fungal isolates, Metarhizium flavoviride As18 showed a mortality rate of 92.1 and 74.5% against the second larval and the adult stages of WFT, respectively. The LC50 value was determined to be 1.6 × 104 and 7.1 × 104 conidia/ml for the second larval and adult stages of WFT, respectively. The combined application of S. marcescens Se9 and M. flavoviride As18 at different concentrations generally performed better than single treatments, indicating an additive or synergistic interaction. While the single treatment with S. marcescens and M. flavoviride caused a mortality of 20.4 and 49.5%, respectively, the combined application (S. marcescens LC25; M. flavoviride 100 × LC25) resulted in a mortality of 95.7% of the second larval stage. Similarly, the combined application caused 96% mortality in the adult stage, while the single treatments with S. marcescens and M. flavoviride caused 11.3 and 61.3% mortality, respectively.
Conclusion
The study showed that the combined application of S. marcescens (LC25) and M. flavoviride (LC25 × 100) resulted in synergism against both second larval and adult stages of WFT. This is the first study to show that the combination of S. marcescens and M. flavoviride had synergistic potential to suppress the WFT population. In future studies, these microorganisms should be formulated together as biopesticides and tested under greenhouse or field conditions.
Background
The western flower thrips, Frankliniella occidentalis Pergande (WFT) (Thysanoptera: Thripidae), is an important destructive sucking pest of a wide range of more than 250 plant species from 65 families (Reitz 2009). They not only cause direct feeding damage to leaves, flowers and fruits, but are also the most effective vectors of tospoviruses such as tomato spotted wilt virus (TSWV) and impatiens necrotic spot virus (He et al. 2020). Biological characteristics such as polyphagous, short development times, high reproductive potential, high dispersal ability and competitiveness make the pest difficult to control (Mouden et al. 2017).
Control of WFT is mainly based on the frequent use of broad-spectrum insecticides, including organophosphates, carbamates and pyrethroids. The overuse of insecticides has led to the development of resistant populations to more than 30 active ingredients (Mavridis et al. 2023). In addition, toxicity to beneficial nontarget organisms, environmental pollution and residue problems on marketable crops limit their use (Mouden et al. 2017). For these reasons, the search for reliable biological control methods that can protect the ecological environment and effectively and continuously control the population of WFT has become an important area of research for the integrated control of WFT.
Entomopathogenic microorganisms are natural means of controlling insects’ populations because they are naturally pathogenic to a range of insect pests and are derived from nature; therefore, they have little to no adverse effects on the environment. Entomopathogenic viruses and bacteria needed to be ingested or enter the host body in some way to cause the infection, but entomopathogenic fungi (EPF) directly infect through insect cuticle and do not require ingestion to cause infection (Mannino et al. 2019). This offers an advantage in the control of sap‐feeding insect species with piercing‐sucking mouthparts such as WFT. Several EPF, Lecanicillium lecanii, Beauveria bassiana, Metarhizium anisopliae, M. brunneum, M. flavoviride, Neozygites parvispora and Isaria fumosorosea, have been successfully used to control WFT (Skinner et al. 2012). Among them, B. bassiana and M. anisopliae are the most effective for controlling WFT (Li et al. 2021).
EPFs have been shown to control insect pests but have a relatively slow action compared to chemical insecticides, as fungal pathogens have a latent period in their host after infection (Sharma and Sharma 2021). Another potential disadvantage of EPFs is their relatively short shelf life compared to conventional chemical insecticides. To overcome this disadvantage, EPFs have been combined with adjuvants, insecticides, predatory mites or other entomopathogens. For example, Zhang et al. (2021) showed that the combined use of predatory mites Stratiolaelaps scimitus and granular formulation of B. bassiana improved control of WFT in eggplant under greenhouse conditions. Similarly, Kivett et al. (2016) showed that the combination of M. anisopliae and insect growth regulator azadirachtin improved control of WFT under laboratory conditions. Furthermore, Ge et al. (2020) demonstrated that M. anisopliae in combination with sublethal doses of conventional insecticide imidacloprid had a better control effect on WFT than the individual fungal biocontrol agent. However, synergism between EPF and bacteria against WFT has not been reported.
Therefore, the main objective of this study was to screen the virulence of thirty indigenous entomopathogen isolates against second larval and adult stages of WFT and to show the possibilities of the combined use of the most virulent bacterium and fungus in the biocontrol of WFT.
Methods
Rearing western flower thrips
WFT collected from infested greenhouses in Antalya, Turkey, were used to establish a laboratory colony. To obtain uniformly aged thrips for the experiments, synchronized rearing of WFT was performed on kidney beans (Phaseolus vulgaris L.) in 1-l glass jars (18 cm × 10 cm) with snap lids fitted with fine-mesh ventilation holes. Rearing jars were maintained in a climate chamber at 25 °C, 70% RH and L16: D8 h photoperiod (Price et al. 2022). The second larval stage and adults were the target used in bioassays.
Entomopathogens
Entomopathogens were obtained from the Entomopathogen Culture Collection of the Department of Biology, Karadeniz Technical University in Trabzon, Turkey. Thirty entomopathogenic microorganisms isolated and defined in previous studies and whose insecticidal properties were determined were used for the study (Table 1).
Frozen glycerol stock suspension of bacteria (100 µl) was spread on nutrient agar medium to obtain single colonies for each isolate and incubated overnight at 30 °C. A single pure colony was inoculated into 10 ml nutrient broth medium. After incubation, the culture was centrifuged at 5000 rpm for 5 min to remove the medium. The pellet was washed with sterile phosphate buffer solution (PBS) and resuspended in sterile distilled water. Then the bacterial density was measured at OD600 (optical density) and adjusted to 1.89 (≈ 1.8 × 109 cfu/ml) (Ben-Dov et al. 1995). The bacterial suspensions were then serially diluted to 108 cfu/ml and stored at 4 °C until used in the bioassays.
Frozen glycerol stock suspension of fungi (100 µl) was grown for 3 days at 25 °C by spreading on Saboraud Dextrose Agar (SDA) medium. A single colony was inoculated onto fresh SDA medium and sporulated for 2 weeks at 25 °C. The conidia were harvested by adding 10 ml of sterile distilled water containing 0.01% Tween 80 to the sporulating fungi and scraping the conidia from the agar surface with a sterile cell spreader. The resulting suspension was vortexed for 1 min to homogenize it. The suspension was then filtered through a double layer of sterile cheesecloth into 50-ml sterile Falcon tubes to remove mycelium and agar pieces. The conidial concentration was determined with the Neubauer haemocytometer under the light microscope and adjusted to concentration of 107 conidia/ml.
Screening test
The efficacy of the entomopathogens was tested separately against the second larval stage and the adult WFT under laboratory conditions. The tests were carried out according to IRAC test method No. 10. Bean leaves were placed in plastic boxes (15 × 15 cm), which were disinfected with sodium hypochlorite (1%). Moist cotton was used to prevent the leaves from drying out. Thirty second instar larvae were transferred to the leaves in the boxes using a suction tube. 1 ml of the prepared bacterial (108 cfu/ml) and fungal (107 conidia/ml) suspensions was sprayed onto the leaves using a mini hand sprayer. Sterile water was used as control for bacteria and sterile water with 0.01% Tween80 for fungi. Experiments were performed according to a completely randomized experimental design with 4 replicates, where each box was scored as a single plot and replicated 2 times. Bioassays were performed in a climate chamber with a temperature of 26 °C, 70% relative humidity and a 16/8 photoperiod (light: dark). The bioassays were also performed with the adult stage described above. Mortality was monitored daily for 5 days, followed by rate corrections according to the Abbott formula (Abbott 1925). Data were then subjected to analysis of variance (ANOVA), followed by Tukey’s HSD multiple comparison test using SPSS statistical software to assess differences between treatments. In addition, the estimates of the median lethal time (LT50) and their confidence limits were calculated using probit analysis (Finney 1971).
Concentration response test
Concentration experiments were carried out with 3 bacteria and 3 fungi that had the lowest LT50 value and the highest insecticidal effect on the larvae and adults of the pest. Six different concentrations of microorganisms were obtained by tenfold serial dilution of each stock suspension. The bacterial isolates S. marcescens Se9, B. safensis Cq1 and B. thuringiensis Sn10 were prepared at concentrations ranging from 108 to 103 cfu/ml, and fungal isolates M. flavoviride As18, B. bassiana Hp4 and L. muscarium Pa3 at concentrations ranging from 108 to 103 conidia/ml. The bioassays were then performed as indicated in the screening tests. The median lethal concentrations (LC50) of the microorganisms were calculated for the larvae and adult stages of WFT using probit analysis in the statistical software SPSS.
Determination of Synergism
Metarhizium flavoviride As18 and S. marcescens Se9, which had the lowest LC50 value, were used to investigate the synergistic effect of the isolates on WFT. The combinations of isolates were prepared at different concentrations (Table 2) and tested separately for the second larval stage and the adult stage of WFT as described in the screening test. The co-toxicity factors were calculated using the following equation:
where Oc is the mortality caused by the combination application and Oe is the sum of the mortality rates of the isolates making up the combination alone. Values > 20 represent synergistic effect, − 20 ≤ values ≤ 20 represent additive effect and values < − 20 represent combinations that are antagonistic (Ma et al. 2008).
Results
As a result of the screening tests performed with entomopathogenic bacteria, it was found that all bacteria are pathogenic for the larvae and adults of WFT, but their virulence was different. The highest virulence on the second larval stage at a concentration of 108 cfu/ml was observed with the isolates S. marcescens Se9 (54%) and B. safensis Cq1 (51%). The other isolates caused less than 50% mortality (F = 108.13; df = 14; p < 0.05) (Fig. 1). The median lethal time (LT50) for bacterial isolates with a concentration of 108 cfu/ml on the second larval stage of WFT was determined by probit analysis, and the lowest LT50 values were 4.67 (S. marcescens Se9), 4.79 (B. safensis Cq1) and 4.87 (B. thuringiensis Sn10) days (Table 3). The LC50 values of these isolates for the second larval stage were determined to be 4 × 106, 3.9 × 106 and 8.3 × 107 cfu/ml, respectively (Table 4). These isolates showed highest virulence also on the adult stage. S. marcescens Se9, B. safensis Cq1 and B. thuringiensis Sn10 caused 69.54, 62.5 and 54% mortality, respectively, on adult stage (Fig. 1). Virulence of the other isolates ranged from 6.25 to 29 (F = 122.89; df = 14; p < 0.05). The lowest LT50 value for adult stage was obtained with S. marcescens Se9, B. safensis Cq1 and B. thuringiensis Sn10 isolates at 4.35, 4.5 and 4.73 days, respectively (Table 3). The LC50 values of these isolates are given in Table 4.
Virulence of bacterial isolates on the second larval and adult stages of WFT at a concentration of 108 cfu/ml. The bars show the means of mortality rates obtained from bioassays with four replicates, corrected according to the Abbott formula. The error bars show the standard deviation between the mean values. The different lowercase and uppercase letters indicate statistical differences (ANOVA, Tukey’s HSD test, p < 0.05)
All fungi tested were pathogenic to the second larval stage of WFT. The virulence of the fungal isolates ranged from 8.7 to 92.1% (F = 144.4; df: 14; p < 0.05) (Fig. 2). Among the isolates, the virulence of M. flavoviride As18, L. muscarium Pa3 and B. bassiana Hp4 was 92.1, 85.1 and 86.1%, respectively. The LT50 values of the isolates for the second larval stage were 3.37 days for M. flavoviride As18, 3.68 days for B. bassiana Hp4 and 3.87 days for L. muscarium Pa3 (Table 4). As in the second larval stage, the isolates with the highest virulence on adult stage were M. flavoviride As18 (74.5%), B. bassiana Hp4 (70.5%) and L. muscarium Pa3 (69.2%) (Fig. 2). The LT50 values at a concentration of 107 conidia/ml for M. flavoviride As18, B. bassiana Hp4 and L. muscarium Pa3 were determined to be 4, 4.19 and 4.23 days, respectively (Table 4). The LC50 values of these isolates for the second larval stage and adults are shown in Table 5.

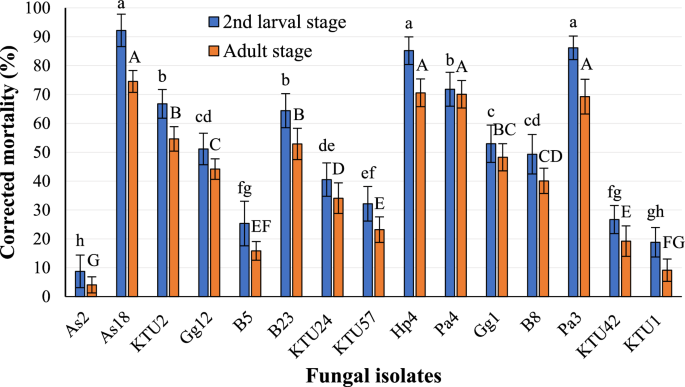

Virulence of fungal isolates on the second larval and adult stages of WFT at a concentration of 107 cfu/ml. The bars show the means of mortality rates obtained from bioassays with four replicates, corrected according to the Abbott formula. The error bars show the standard deviation between the mean values, different lowercase and uppercase letters indicate statistical differences (ANOVA, Tukey’s HSD test, p < 0.05)
Binary combinations of S. marcescens Se9 and M. flavoviride As18 were used to determine the synergistic effect, using the co-toxicity factor (CTF) as a criterion. The CTF values for combination 3 were + 36.92, indicating a strong synergy on the second larval stage. The other combinations with CTF values < + 20 showed an additive or antagonistic effect (Table 6). Moreover, combination 2 and 3 showed a synergistic effect on the adult stage of WFT with CTF values of + 22.49 and + 32.38, respectively. Combination 7 showed an antagonistic effect. The other combinations with CTF values between − 20 and 20 showed additive effects on the adult stage of WFT (Table 7).
Discussion
Natural enemies in an agroecosystem play a significant role in keeping pests from reaching economic threshold level. Insect-pathogenic microorganisms as pesticides not only suppress pest populations but also ensure sustainable agriculture as they are host-specific, leave no toxic residues, have no phytotoxic effects, are harmless to humans and provide self-sustaining pest control.
Results of the screening test showed that thirty different indigenous entomopathogenic microorganisms isolated from different sources were pathogenic to both the second larval stage and adult of WFT. However, the results also showed that there were differences in virulence within genera, species and isolates. Apart from two bacterial isolates, the virulence did not exceed 30%. Since entomopathogenic bacteria need to be digested by the insects to be effective, their use in the control of sucking pests such as WFT is not common. However, there are studies that show they can be effective. Helyer and Brobyn (1992) tested the commercial product Bactospeine garden, containing B. thuringiensis, against WFT larvae and observed a mortality of 87%. Similarly, Bilbo et al. (2020) indicated that two commercial bioinsecticides, Venerate (Burkholderia strain A396) and Grandevo (Chromobacterium subtsugae strain PRAA4-1), significantly reduced thrips populations in a commercial staked tomato field. In the present study, S. marcescens Se9 and B. safensis Cq1 isolates caused 54 and 51.3% mortality on the second larval stage, respectively. These isolates also showed 69.6 and 62.5% mortality rates on adult of WFT. Pathogenicity of S. marcescens has been reported in various agricultural pests such as Helicoverpa armigera (Mohan et al. 2011), Bemisia tabaci (Karut et al. 2020), Heliothis virescens (Sikorowski et al. 2001), Bombyx mori (Tao et al. 2022), Anoplophora glabripennis (Deng et al. 2008), Spodoptera exigua (Eski et al. 2018) and Rhynchophorus ferrugineus (Zhang et al. 2011). However, this study is the first report on the pathogenicity of S. marcescens against WFT. Its virulence depends on its extracellular hydrolytic enzymes, including chitinases, proteases and nucleases as well as toxins with hemolytic and cytotoxic activities (Tao et al. 2022). In these reports, virulence of S. marcescens isolates ranged between 50 and 100%, suggesting the existence of host species-specific interactions between these virulence factors and the insects’ innate immune system.
Similarly, the fungal isolates tested were found to be pathogenic for the WFT and differed in their virulence. Among the isolates, the virulence of M. flavoviride As18, L. muscarium Pa3 and B. bassiana Hp4 on second larval stage was 92.1, 85.1 and 86.1%, respectively, and the differences between their virulence were non-statistically significant (p > 0.05). There are many studies on the use of fungi in the control of WFT as they do not need to be eaten by insects to be effective and can initiate infection directly from the cuticle. These studies have also shown that the virulence of different species and even different strains of the same species may vary (Kim et al. 2020). Sengonca et al. (2006) investigated the virulence of two different strains of M. flavoviride to first instar larvae of WFT and reported that M. flavoviride strain 5744 was more pathogenic than M. flavoviride strain 1164. In the present study, M. flavoviride As18 caused 92% mortality, while M. flavoviride As2 caused only 8% mortality on second instar larvae. The susceptibility of WFT to EPF varied with the developmental stages. Sengonca et al. (2006) found that the LC50 value of B. bassiana strain 4591 was 3.55 × 104 conidia/ml for first larval stage and 1.32 × 106 for adult stage. Similarly, the LC50 value of M. flavoviride As18 was lower for second larval stage than for adult. It can be assumed that these differences in susceptibility at different stages of development are due to the thickness of the cuticle or metamorphosis. In addition, an increasing amount of antifungal substances on the cuticle may inhibit spore germination and penetration (Eski and Gezgin 2022). On the other hand, the pathogenicity of EPF depends on the ability of their enzymatic equipment, which consists of lipases, proteases and chitinases that degrade the insect's integument (Mondal et al. 2016; Shin et al. 2020). However, a variety of factors such as water, ions, fatty acids and nutrients on the surface of the cuticle influence spore germination (Liu et al. 2023). In addition, the microorganisms in the gut could also play a crucial role in the development and ecology of the host's defenses against fungal pathogens. Zhou et al. (2023) showed that internal microorganisms of F. occidentalis were involved in the infection process of Lecanicillium sp. and that disruption of the internal microbial balance leads to recognizable sublethal effects. Therefore, the differences in virulence could be explained by many factors that influence the infection process.
The use of two different biological control agents against the pest may increase virulence or accelerate the infection process as they act independently on different points of host susceptibility. Mantzoukas et al. (2013) suggested that when fungi and bacteria are applied simultaneously, their interactions have synergistic effects on insect mortality as both agents act independently, but it depends on the particular combinations of pathogens and host species. In the present study, the combined infections with different concentrations of M. flavoviride As18 and S. marcescens Se9 generally led to additive and in one case to synergistic interactions. The synergistic or additive effect in the infection of insects with bacterial–fungal mixtures can probably be attributed to two main reasons. Firstly, the intestinal disturbances and general intoxication caused by bacteria interfere with insect feeding, delay their growth and prolong the inter-molt period. The delayed growth and molting may assist the infection may increase the susceptibility of the larvae to bacterial infections.
The combined use of fungi and predators (Zhang et al. 2021), nematodes and predators (Ebssa et al. 2006) and entomopathogens with conventional insecticides (Ge et al. 2020) has been reported to significantly reduce WFT populations. However, the combined use of entomopathogenic microorganisms is limited. The combined treatment of S. carpocapsae Nemastar and M. anisopliae ICIPE-69 on soil stages of WFT resulted in lower emergence of adults and synergistic response compared to single treatment (Otieno et al. 2016). To our knowledge, this is the first study to show that the combined use of local M. flavoviride and S. marcescens isolates can control WFT through a synergistic effect. On the other hand, synergistic effects between EPF and bacteria have also been observed in other insect pests. For example, Beris and Korkas (2021) reported that a combination treatment of B. bassiana and B. thuringiensis caused significantly higher mortality on the larvae of the European grapevine moth, Lobesia botrana (Lepidoptera: Tortricidae), than a single treatment when applied at the same time. In contrast, Ma et al. (2008) reported that an additive effect on mortality was observed when the Asiatic corn borer, Ostrinia furnacalis (Lepidoptera: Crambidae) was exposed to a combination of B. bassiana (107 conidia/ml) and B. thuringiensis toxin Cry1Ac (0.2 µg/ml). However, in the same study, combinations of sublethal concentrations of Cry1Ac and B. bassiana resulted in antagonism. In the present study, although additive and synergistic effects were generally observed with the combination of M. flavoviride and S. marcescens, antagonistic effects were observed in combinations using 100 times the LC25 value of S. marcescens. Competing factors between the control agents can also lead to antagonistic effects. The pigment prodigiosin, which is produced by some Serratia species, has been reported to have an antifungal effect (Jimtha et al. 2017). This could explain the antagonistic effect that occurs in combinations using high concentrations of S. marcescens Se9. Similarly, Deng et al. (2022) reported that the Japanese pine sawyer, Monochamus alternatus associated Serratia species showed a strong inhibitory effect against B. bassiana by reducing the germination and growth of the fungal conidia. This clearly shows the importance of the concentrations of the agents used in the combinations.
Conclusion
This is the first study to show that the combined use of the M. flavoviride and S. marcescens has a synergistic effect on the second larval stage and adult of WFT. The combination of fungi and bacteria may be promising for the development of combination preparations that cause a high mortality rate of WFT. In further studies, M. flavoviride As18 and S. marcescens Se9 should be formulated as a biopesticide to overcome the adverse effects of the environment such as UV radiation and temperature, and efficacy of biopesticide should be tested under greenhouse or field conditions to validate the results.
Availability of data and materials
All data generated and analyzed during this study are indicated in the manuscript.
References
Abbott WS (1925) A method of computing the effectiveness of an insecticide. J Econ Entomol 18:265–267. https://doi.org/10.1093/jee/18.2.265a
Ben-Dov E, Boussiba S, Zaritsky A (1995) Mosquito larvicidal activity of Escherichia coli with combinations of genes from Bacillus thuringiensis subsp. israelensis. J Bacteriol 177:2851–2857. https://doi.org/10.1128/jb.177.10.2851-2857.1995
Beris E, Korkas E (2021) Additive and synergistic interactions of entomopathogenic fungi with Bacillus thuringiensis for the control of the European grapevine moth Lobesia botrana (Denis and Schiffermüller) (Lepidoptera: Tortricidae). Egypt J Biol Pest Control 31:109. https://doi.org/10.1186/s41938-021-00455-w
Bilbo TR, Schoof SC, Walgenbach JF (2020) Foliar insecticide efficacy against western flower thrips in staked tomato. Arthropod Manag Tests 45:tsaa063. https://doi.org/10.1093/amt/tsaa063
Biryol S, Davut EF, Demirbağ Z, Demir I (2020) Fungal pathogens of Amphimallon solstitiale Linnaeus,1758 (Coleoptera: Scarabaeidae). Turk J Entomol 44(3):375–384. https://doi.org/10.16970/entoted.663690
Biryol S, Araz N, Eski A, Aktürk R, Aksu Y, Çelik Göktürk B, Bilgin L, Demir I (2021) Biodiversity and pathogenicity of entomopathogenic fungi associated with the Lesser spruce sawfly, Pristiphora abietina. Entomol Exp Appl 169(5):414–423. https://doi.org/10.1111/eea.13035
Cakici FO, Ozgen I, Bolu H, Erbas Z, Demirbağ Z, Demir I (2015) Highly effective bacterial agents against Cimbex quadrimaculatus (Hymenoptera: Cimbicidae): isolation of bacteria and their insecticidal activities. World J Microbiol Biotechnol 31:59–67. https://doi.org/10.1007/s11274-014-1764-3
Demir İ, Sezen K, Demirbağ Z (2002) The first study on bacterial flora and biological control agent of Anoplus roboris (Sufr., Coleoptera). J Microbiol 40(2):104–8
Deng CP, Yan XZ, Liu HX, Luo YQ (2008) Pathogenicity of Serratia marcescens isolated from the egg niche of Anoplophora glabripennis. Chin J Biol Cont 24(3):244–248
Deng J, Xu W, Lv G, Yuan H, Zhang QH, Wickham JD, Xu L, Zhang L (2022) Associated bacteria of a pine sawyer beetle confer resistance to entomopathogenic fungi via fungal growth inhibition. Environ Microbiome 17:47. https://doi.org/10.1186/s40793-022-00443-z
Ebssa L, Borgemeister C, Poehling HM (2006) Simultaneous application of entomopathogenic nematodes and predatory mites to control western flower thrips Frankliniella occidentalis. Biol Control 39:66–74. https://doi.org/10.1016/j.biocontrol.2006.02.005
Eski A, Gezgin MM (2022) Susceptibility of different life stages of Tenebrio molitor (Coleoptera: Tenebrionidae) to indigenous entomopathogenic fungi. J Stored Prod 98:102008. https://doi.org/10.1016/j.jspr.2022.102008
Eski A, Cakıcı FO, Güllü M, Muratoğlu H, Demirbağ Z, Demir I (2015) Identification and pathogenicity of bacteria in the Mediterranean corn borer Sesamia nonagrioides Lefebvre (Lepidoptera: Noctuidae). Turk J Biol 39(1):31–48. https://doi.org/10.3906/biy-1402-69
Eski A, Demir I, Güllü M, Demirbağ Z (2018) Biodiversity and pathogenicity of bacteria associated with the gut microbiota of beet armyworm, Spodoptera exigua Hübner (Lepidoptera: Noctuidae). Microb Pathog 121:350–358. https://doi.org/10.1016/j.micpath.2018.05.012
Eski A, Erdoğan P, Demirbağ Z, Demir İ (2024) Isolation and identification of bacteria from the invasive pest Tuta absoluta (Meyrick) (Lepidoptera: Gelechiidae) and evaluation of their biocontrol potential. Int Microbiol. https://doi.org/10.1007/s10123-023-00418-1
Finney DJ (1971) Probit Analysis, 3rd edn. Cambridge University Press, London. https://doi.org/10.1002/jps.2600600940
Ge W, Du G, Zhang L, Li Z, Xiao G, Chen B (2020) The time–concentration–mortality responses of western flower thrips, Frankliniella occidentalis, to the synergistic interaction of entomopathogenic fungus Metarhizium flavoviride, insecticides, and diatomaceous earth 11:93. Insects. https://doi.org/10.3390/insects11020093
He Z, Guo JF, Reitz SR, Lei ZR, Wu SY (2020) A global invasion by the thrip, Frankliniella occidentalis: current virus vector status and its management. Insect Sci 27:626–645. https://doi.org/10.1111/1744-7917.12721
Helyer NL, Brobyn PJ (1992) Chemical control of western flower thrips (Frankliniella occidentalis Pergande). Ann Appl Biol 121:219–231. https://doi.org/10.1111/j.1744-7348.1992.tb03434.x
İnce IA, Katı H, Yilmaz H, Demir I, Demirbağ Z (2008) Isolation and identification of bacteria from Thaumetopoea pityocampa Den. and Schiff. (Lep., Thaumetopoeidae) and determination of their biocontrol potential. World J Microbiol Biotechnol 24:3005–3015. https://doi.org/10.1007/s11274-008-9845-9
Jimtha CJ, Jishma P, Sreelekha S, Chithra S, Radhakrishnan EK (2017) Antifungal properties of prodigiosin producing rhizospheric Serratia sp. Rhizosphere 3:105–108. https://doi.org/10.1016/j.rhisph.2017.02.003
Karut ST, Karut K, Aysan Y (2020) Culturable bacterial strains isolated from Bemisia tabaci (Gennadius, 1889) (Hemiptera: Aleyrodidae) populations of Adana and Mersin provinces of Turkey and their entomopathogen characteristics. Turk J Entomol 44:13–22. https://doi.org/10.16970/entoted.578542
Katı H, Sezen K, Belduz AO, Demırbag Z (2005) Characterization of a Bacillus thuringiensis subsp. kurstaki strain isolated from Malacosoma neustria L. (Lepidoptera: Lasiocampidae). Biol Brat 60(3):301–305
Kim S, Kim JC, Lee SJ, Lee MR, Park SE, Li D, Kim JS (2020) Beauveria bassiana ERL836 and JEF-007 with similar virulence show different gene expression when interacting with cuticles of western flower thrips, Frankniella occidentalis. BMC Genom 21:1–12. https://doi.org/10.1186/s12864-020-07253-y
Kivett JM, Cloyd RA, Bello NM (2016) Evaluation of entomopathogenic fungi against the western flower thrips (Thysanoptera: Thripidae) under laboratory conditions. J Entomol Sci 51(4):274–291. https://doi.org/10.18474/JES16-07.1
Li J, Xie J, Zeng D, Xia Y, Peng G (2021) Effective control of Frankliniella occidentalis by Metarhizium anisopliae CQMa421 under field conditions. J Pest Sci 94:111–117. https://doi.org/10.1007/s10340-020-01223-9
Liu GS, Li HL, Peng ZZ, Liu RL, Han YC, Wang YX, Zhao XD, Fu DQ (2023) Composition, metabolism and postharvest function and regulation of fruit cuticle: a review. Food Chem 411:135449. https://doi.org/10.1016/j.foodchem.2023.135449
Ma XM, Liu XX, Ning X, Zhang B, Han F, Guan XM, Tan YF, Zhang QW (2008) Effects of Bacillus thuringiensis toxin Cry1Ac and Beauveria bassiana on Asiatic corn borer (Lepidoptera: Crambidae). J Invertebr Pathol 99(2):123–128. https://doi.org/10.1016/j.jip.2008.06.014
Mannino MC, Huarte-Bonnet C, Davyt-Colo B, Pedrini N (2019) Is the insect cuticle the only entry gate for fungal infection? Insights into alternative modes of action of entomopathogenic fungi. J Fungi 5(2):33. https://doi.org/10.3390/jof5020033
Mantzoukas S, Milonas P, Kontodimas D, Angelopoulos K (2013) Interaction between the entomopathogenic bacterium Bacillus thuringiensis subsp. kurstaki and two entomopathogenic fungi in bio-control of Sesamia nonagrioides (Lefebvre) (Lepidoptera: Noctuidae). Ann Microbiol 63:1083–1091. https://doi.org/10.1007/s13213-012-0565-x
Mavridis K, Ilias A, Papapostolou KM, Varikou K, Michaelidou K, Tsagkarakou A, Vontas J (2023) Molecular diagnostics for monitoring insecticide resistance in the western flower thrips Frankliniella occidentalis. Pest Manag Sci 79(4):1615–1622. https://doi.org/10.1002/PS.7336
Mohan M, Selvakumar G, Sushil SN, Bhatt JC, Gupta HS (2011) Entomopathogenicity of endophytic Serratia marcescens strain SRM against larvae of Helicoverpa armigera (Noctuidae: Lepidoptera). World J Microbiol Biotechnol 27:2545–2551. https://doi.org/10.1007/s11274-011-0724-4
Mondal S, Baksi S, Koris A, Vatai G (2016) Journey of enzymes in entomopathogenic fungi. Pac Sci Rev A 18(2):85–99. https://doi.org/10.1016/j.psra.2016.10.001
Mouden S, Sarmiento KF, Klinkhamer PGL, Leiss KA (2017) Integrated pest management in western flower thrips: past, present and future. Pest Manag Sci 73(5):813–822. https://doi.org/10.1002/PS.4531
Muratoğlu H, Demirbağ Z, Sezen K (2011) An entomopathogenic bacterium, Pseudomonas putida, from Leptinotarsa decemlineata. Turk J Biol 35(3):275–282. https://doi.org/10.3906/biy-0902-19
Otieno JA, Pallmann P, Poehling HM (2016) The combined effect of soil-applied azadirachtin with entomopathogens for integrated management of western flower thrips. J Appl Entomol 140(3):174–186. https://doi.org/10.1111/jen.12242
Price BE, Raffin C, Yun SH, Velasco-Graham K, Choi MY (2022) A sustainable mass rearing method for western flower thrips, Frankliniella occidentalis (Thysanoptera: Thripidae). Fla Entomol 105(2):170–173. https://doi.org/10.1653/024.105.0211
Reitz SR (2009) Biology and ecology of the western flower thrips (Thysanoptera: Thripidae): the making of a pest. Fla Entomol 92(1):7–13. https://doi.org/10.1653/024.092.0102
Sengonca C, Thungrabeab M, Blaeser P (2006) Potential of different isolates of entomopathogenic fungi from Thailand as biological control agents against western flower thrips, Frankliniella occidentalis (Pergande) (Thysanoptera: Thripidae). J Plant Dis Prot 113:74–80. https://doi.org/10.1007/BF03356162
Sevim A, Demir I, Demirbağ Z (2010a) Molecular characterization and virulence of Beauveria spp. from the Pine processionary moth, Thaumetopoea pityocampa (Lepidoptera: Thaumetopoeidae). Mycopathologia 170:269–277. https://doi.org/10.1007/s11046-010-9321-6
Sevim A, Demir I, Hofte M, Humber RA, Demirbag Z (2010b) Isolation and characterization of entomopathogenic fungi from hazelnut-growing region of Turkey. Biocontrol 55:279–297. https://doi.org/10.1007/s10526-009-9235-8
Sevim A, Sevim E, Demir İ, Demirbağ Z (2014) Molecular characterization and pathogenicity of Beauveria bassiana isolated from Rhynchites bacchus L. (Coleoptera: Rhynchitidae). Nev J Sci Tech 3(2):33–47. https://doi.org/10.17100/nevbiltek.210929
Sezen K, Muratoglu H, Nalcacioglu R, Mert D, Demirbag Z, Kati H (2008) Highly pathogenic Bacillus thuringiensis subsp. tenebrionis from European shot-hole borer, Xyleborus dispar (Coleoptera: Scolytidae). New Zeal J Crop Hort Sci 36(1):77–84. https://doi.org/10.1080/01140670809510223
Sharma R, Sharma P (2021) Fungal entomopathogens: a systematic review. Egypt J Biol Pest Control 31:57. https://doi.org/10.1186/s41938-021-00404-7
Shin TY, Lee MR, Park SE, Lee SJ, Kim WJ, Kim JS (2020) Pathogenesis-related genes of entomopathogenic fungi. Arch Insect Biochem Physio 105(4):e21747. https://doi.org/10.1002/arch.21747
Sikorowski PP, Lawrence AM, Inglis GD (2001) Effects of Serratia marcescens on rearing of the Tobacco budworm (Lepidoptera: Noctuidae). Am Entomol 47:51–60. https://doi.org/10.1093/ae/47.1.51
Skinner M, Gouli S, Frank CE, Parker BL, Kim JS (2012) Management of Frankliniella occidentalis (Thysanoptera: Thripidae) with granular formulations of entomopathogenic fungi. Biol Control 63(3):246–252. https://doi.org/10.1016/j.biocontrol.2012.08.004
Sönmez E, Sevim A, Demirbağ Z, Demir I (2016) Isolation, characterization and virulence of entomopathogenic fungi from Gryllotalpa gryllotalpa (Orthoptera: Gryllotalpidae). Appl Entomol Zool 51:213–223. https://doi.org/10.1007/s13355-015-0390-3
Tao A, Wang T, Pang F, Zheng X, Ayra-Pardo C, Huang S, Xu R, Liu F, Li J, Wei Y, Wang Z, Niu Q, Li D (2022) Characterization of a novel chitinolytic Serratia marcescens strain TC-1 with broad insecticidal spectrum. AMB Express 12:100. https://doi.org/10.1186/s13568-022-01442-6
Yucel B, Gozuacik C, Gencer D, Demir I, Demirbag Z (2018) Determination of fungal pathogens of Hypera postica (Gyllenhall) (Coleoptera: Curculionidae): Isolation characterization and susceptibility. Egypt J Biol Pest Control 28:39. https://doi.org/10.1186/s41938-018-0043-2
Zhang J, Qin WQ, Yan W, Peng ZQ (2011) Isolation and identification of a pathogenic strain of Rhynchophorus ferrugineus Oliver. Chin J Trop Crops 32(11):2331–2335. https://doi.org/10.1111/jen.12293
Zhang X, Wu S, Reitz SR, Gao Y (2021) Simultaneous application of entomopathogenic Beauveria bassiana granules and predatory mites Stratiolaelaps scimitus for control of western flower thrips, Frankliniella occidentalis. J Pest Sci 94(1):119–127. https://doi.org/10.1007/s10340-020-01227-5
Zhou YM, Xie W, Zhi JR, Zou X (2023) Frankliniella occidentalis pathogenic fungus Lecanicillium interacts with internal microbes and produces sublethal effects. Pestic Biochem Physiol 197:105679. https://doi.org/10.1016/j.pestbp.2023.105679
