Heterorhabditis alii n. sp. (Nematoda: Heterorhabditidae), a novel entomopathogenic nematode from Egypt used against the fall armyworm, Spodoptera frugiperda (Smith 1797) (Lepidoptera: Noctuidae)

Abstract

Background

Isolation of novel species of entomopathogenic nematodes (EPNs) with biocontrol potential against important insect pests is very important for the sustainable management of economic pests damaging food crops and providing protection to the agricultural environment. This study was aimed to new indigenous EPN isolates from Egyptian agricultural soils and studies its biocontrol potential for further use in the biological control programs. Five out of 15 soil samples obtained from a farm located at the Cairo–Alexandria desert highway was positive for the presence of EPN, using the greater wax moth baiting method.

Results

Sequencing of the internal transcribed spacer (ITS) region of 4 of the nematode isolates suggested that they belong to the species Heterorhabditis indica. However, one isolate does not show a high similarity to any of the H. indica previously recorded in the database of the Gen Bank and hence was identified as a new Heterorhabditis species and was deposited at the National Center for Biotechnology Information (NCBI) and registered under accession no. (OP555450) under the name of Heterorhabditis alii. This new species was also registered in the ZooBank under the registration link of: LSID urn: lsid: zoobank.org: act: 306F9D57-CC30-4B8E-8B19-4F0E42B08F34. No males were found in this species. Morphological characterization using the light microscope (LM) and scanning electron microscope (SEM) confirmed the identification of this nematode as a new species of the genus Heterorhabditis. Moreover, virulence of this new species against the fall armyworm (FAW), Spodoptera frugiperda (Smith 1797) (Lepidoptera: Noctuidae) was tested in comparison with the foreign EPN species, Heterorhabditis bacteriophora (HP88) and the local Heterorhabditis indica (Mango 2 isolate) and proved to be more effective against this devastative insect pest than the two compared species.

Conclusions

The present study found out a new species of the EPN genus, Heterorhabditis in Egypt. Our results were confirmed by both morphological and molecular analyses. The efficacy of this new species against the FAW proved to be a potent and safe biocontrol agent that can be used in biological control programs against this invasive insect pest of corn in Egypt and other global countries.

Background

Entomopathogenic nematodes (EPNs) are very important biocontrol agents that are characterized by the ability to search and find their insect hosts, they are specific pathogens of insects and safe on nontarget insects and beneficial organisms (Gozel and Gozel 2016). EPNs of the family Heterorhabditidae are obligate insect parasites that spend part of their life cycle inside their hosts. The third juvenile stage in the cuticle of the second stage is the infective juvenile (IJ). Once the IJs penetrate the host, they release the bacteria that live in symbiosis within the EPN gut and multiply fast and under optimal conditions causing host mortality within 24–48 h (Bhat et al. 2020). Isolation of novel species and/or isolates of the EPNs with biocontrol potential against economic insect pests is very promising for the sustainable management of those pests on economic crops in addition to providing protection to the environment (Tarasco et al. 2023). Globally, about 22 species of Heterorhabditis and 102 species Steinernema have been reported before (Hazir et al. 2022). However, new EPN species still being found and described from different parts of the world (Půža et al. 2020). In Egypt, many surveys of different soil types were conducted and a lot of nematode isolates and different species were found from all over the country (Khashaba and Abd El Azim 2021).

In the study, the isolation of a new species of Heterorhabditis from Egypt was reported by morphological and molecular identification. In addition, the efficacy of the new species against the FAW compared to two local EPN isolates of Heterorhabditis indica was determined.

Methods

Soil sampling and isolations of the entomopathogenic nematodes

In 2021, 35 soil samples were randomly collected from a farm on Alexandria Highway desert road, Cairo, Egypt, with specific coordinates of N 30° 16′ 48.7″, E 30° 41′ 50.0″. Each soil sample (1 kg) was randomly taken from a depth of 3–30 cm using a hand shovel and sealed in a plastic bag. All soil samples were kept in an icebox and transported to the laboratory located in the building of the Applied Center for Entomonematodes (ACE), Faculty of Agriculture, Cairo University, Egypt, and stored at 13 °C separately for the detection of any EPN in the isolated soils. Nematodes were recovered from the soil samples using the insect-baiting technique (Tarasco et al 2020). Each sample was baited by 10 last instar larvae of the greater wax moth, Galleria mellonella (Linnaeus 1758). The baited cups were inverted and kept in the dark at 25 ± 2 °C and 75 ± 5 RH. During 10 days as a holding period, the samples were checked for dead insects. Cadavers of insect larvae were transferred individually to the modified White traps (Kaya and Stock 1997). If the larvae were found still alive, the results were considered negative and the soil sample was discarded. In the positive cups, cadavers were removed, rinsed carefully with sterile distilled water, and transferred to the White trap dishes (White 1927) to harvest nematode infective juveniles (IJs). Nematodes were harvested within the first week of emergence and used to inoculate G. mellonella last instar larvae to confirm their pathogenicity to the insects. Infective juveniles (IJs) were transferred onto moist filter paper in Petri dishes where living G. mellonella larvae were added. The new generations of IJs were collected in a beaker and rinsed twice with sterile distilled water and stored at 13 °C as described by (Kaya and Stock 1997).

Molecular identification of the novel nematode species

To identify the obtained five nematode isolates with a molecular method, the amplified fragments (700–800 bp) of the 18S rRNA and ITS1 regions were sequenced. Depending on the provided sequencing charts, the quality of sequenced 18S rRNA fragments was manually assessed and the low-quality sequences were trimmed accordingly. The sequence similarity comparisons between the five isolates and those previously deposited in NCBI, using nucleotide BLAST against the whole database, were established. Molecular characterization of the isolates was performed by the analysis of the ITS rDNA sequences. Infective juveniles of each isolate were concentrated by a centrifugation at 3000 g for 10 min. in EN buffer (100 Mm NaCl, 10 mM EDTA) and then washed three times with sterile distilled water. The resulting nematode pellet was ground in liquid nitrogen and genomic DNA was extracted using the QIAamp® DNA Mini Kit (QIGEN Cat. No. 51304) according to the manufacturer’s recommendations. The quality and quantity of DNA were determined using the Thermo Scientific Nanodrop 2000c. The amplification of ITS region of the nematode 18S rDNA was performed in the Veriti® 96-well Thermal Cycler (Applied biosystems) at the biotechnology laboratory of Cairo University Research Park. The 50 μl reaction mix contained 25 μl of DreamTaq Green PCR Master Mix (2X) (Thermo Scientific Cat. No. #K1081), 100 ng of the DNA suspension and 2 μl of each of the forward and reverse primers were observed. The PCR cycling profile included initial denaturation at 95 °C for 3 min., followed by 35 cycles of 95 °C for 30 s, 58 °C for 30 s, and 72 °C for 1 min, followed by a final extension at 72 °C for 10 min. Subsequently, the product was loaded on a 1.5% agarose gel. The primer set used for the amplification was the ITS primers: 5′-TTGATTACGTCCCTGCCCTTT-3′ (forward) and 5′-TTTCAC TCGCCGTTACTAAGG-3′ (reverse) (Subbotin et al. 2000). The PCR products were purified using the Wizard® SV Gel and PCR Clean-Up System Kit (Promega) following the manufacturer’s instructions. PCR products were sequenced using sequence-specific primers with a BigDye Terminator Cycle Sequencing Ready Reaction Kit (PE Applied Biosystem, USA) and carried out on ABI PRISM 310 Genetic Analyzer (PE Applied Biosystems, USA) in both directions by the Macrogen Inc. service, South Korea. All obtained DNA sequences were firstly edited to remove low-quality sequences, using Bioedit sequence alignment editor (Hall 1999). The identity of approximately 700–800 bp sequences was confirmed by a BLAST (Basic Local Alignment Search Tool) for sequence similarity searches at NCBI (National Center for Biotechnology Information). The obtained sequences of the heterorhabditid isolate were compared by sequences of Heterorhabditis spp. and submitted to the NCBI database with the accession numbers.

Identification of the isolated five heterorhabditid nematode species

All the isolated EPNs samples were identified as Heterorhabditis spp. due to the reddish color of their cadaver’s affected by the symbiotic bacterial colonies. The isolated nematode species was cultured on the last instar larvae of G. mellonella. Infective juveniles (IJs) were killed in hot (55 OC) Ringer's solution (10% saline solution) or water, fixed in TAF, and processed to glycerin for measurements. Three and four days after infection, insect cadavers were dissected in Ringer’s solution to recover the hermaphroditic females by dissecting the cadavers after five to six days post-infection. Further morphological identification of the obtained five heterorhabditid isolates to the species level was conducted by the use of both light and scanning electron microscope (SEM). One of the five nematode isolates was different according to the SEM examination. This isolate was identified as the new species, Heterorhabditis alii.

Sample preparation for scanning electron microscope (SEM)

For Scanning Electron Microscopic (SEM) examination, nematode specimens were first fixed in 3% glutaraldehyde in a 0.1 M. phosphate buffer at pH 7.2 4–8 °C for two days (Nguyen and Smart 1995). They were post-fixed overnight in 2% osmium tetroxide at 23 °C for 12 h, dehydrated in a graded ethanol series, critical point dried with liquid CO2, mounted on SEM stubs, and coated with gold and examined under the JEOL JSM-5410 scanning electron microscope (SEM). Infective juveniles (IJs) were fixed in 3% glutaraldehyde buffered with 0.1 M sodium cacodylate at pH 7.2 for 24 h at 8 °C (in the refrigerator) (Nguyen and Smart 1990). All nematode stages were post-fixed with 2% osmium tetroxide solution for 12 h at 25 °C and dehydrated in a graded ethanol series, critical point dried with liquid CO2, mounted on SEM stubs, and gold coated. All specimens were examined with SEM operating at 5 kV.

Laboratory testing of isolated EPNs for virulence against the fall armyworm (FAW)

Experimental design

The efficacy of the new EPN isolated species of H. alii n. sp. in addition to two other isolates of EPN, one foreign isolate of Heterorhabditis bacteriophora (HP88), and one local, Heterorhabditis indica (Mango 2) against FAW larvae was determined. Nematodes infective juveniles were tested against 3rd, 4th, 5th, and 6th larval instars of the FAW. A completely randomized design (CRD) was used for each isolate. All experiments were replicated three times. Treatments consisted of three different concentrations of each EPN per ml. of sterile distilled water 100, 250, and 500 IJs per ml. and the same volume of sterile distilled water without EPN was used as controls.

Treatment of the new EPN species against the fall armyworm larvae

Fall armyworm (FAW) larvae were in vivo cultured to the 3rd, 4th, 5th, and 6th larval instars and three larvae were placed into a Petri dish (5.5 cm in diameter) and fed on castor leaves. Using a micropipette, 1 ml. of the infective nematode juvenile suspension was mixed with 1 ml. of sterile distilled water and the mixture was added to cover the leaf and the larvae. As a control, 2 ml of sterile distilled water without nematode IJs was applied. Treated larvae then were incubated at 25 ± 2 °C under 60 ± 5% RH at 14:10 (light: dark) photoperiod. Food was changed every 24 h, each treatment was repeated three times.

Assessment of mortality and data collection

Mortality was assessed 24, 48, and 72 h post-treatment. Insect larvae were detected and counted as dead when they did not respond to the touch of the forceps. For the white trapping technique (White 1927), within 7–10 days, insect cadavers were observed for the emergence of infective nematode juveniles. Only larvae with emerging infective nematode juveniles were recorded as nematode-killed larvae.

Statistical analysis

Analysis of variance (ANOVA) was applied on the collected data. ANOVA was performed on the number of dead insect larvae with different nematode isolates and different IJs concentrations. Means were compared using the least significant differences (LSD) test to detect differences between treatments at (p ≤ 0.05) using the SPSS software.

Results

Due to the limited numbers of heterorhabditid species in comparison with other EPNs belong to the genus Steinernema and relatively low variations of morphological differences among the heterorhabditids, molecular approach was adopted first in this publication to identify the heterorhabditid nematode isolates found by the authors. The present molecular work confirmed that the strain SBIH2 is a new heterorhabditid species. Furthermore, the nematode examination with both the light and scanning electron microscopes supports the new identity of this novel species.

Identification of the isolated entomopathogenic nematodes based on molecular analysis

Five EPNs isolates were found in the soil samples under grape trees et al.—Khatatba Center, Menoufia Governorate, Egypt.

Numerous species of Heterorhabditis EPNs were globally identified based on morphometrical and molecular data. Morphology was not the only decisive criterion to surely identify a certain nematode species and that is why it was depended first on molecular analysis to classify the collected nematode isolates.

The results of applying our molecular techniques indicate that four out of the five sequenced isolates were identified as H. indica due to the high identity and coverage score of their 18S rRNA with those of H. indica species. Interestingly, a single isolate was found to be relatively different from other sequenced isolates. Since the sequence could place this isolate under a different Heterorhabditis species, it could not exclusively classify as H. indica based on nucleotide similarity of its 18S rRNA (Fig. 1). It was found that the sequenced forward strand of this isolate had a similarity score to multiple Heterorhabditis species, such as H. indica, H. hawaiienesis, H. brevicaudis and H. sp. MM7 at equal E-score of 0.0, equal coverage of 62%, and percentage identity more than 97.70%. The closest NCBI-deposited strain was Heterorhabditis sp. isolate SBIH2 (Sankaranarayanan et al. 2017) with an E-score of 0.0, coverage of 100%, and percentage identity of 86.86% to the sequenced forward strand of our isolate. Therefore, this isolate was identified as a new Heterorhabditis species and its sequence was deposited at the National Center for Biotechnology Information (NCBI) and registered under accession no. (OP555450) with the name of Heterorhabditis alii (isolate SHM). New nematode isolate requires further morphometrical and Scanning Electron Microscopy investigations as well as detailed behavioral studies as a novel heterorhabditid nematode species.

Fig. 1
figure 1

Drawn cladogram using the Fast Minimum Evolution method with 0.75 maximum sequence differences of our novel isolate # 2 and other similar species retrieved from NCBI BLAST

Morphometrical and morphological identification of Heterorhabditis alii n. sp. measurements

No males were found when the cadavers of the infected last instar larvae of G. mellonella were dissected starting from the 7th up to the 11th days post-infection.

Infective 3rd stage Juvenile (Fig. 2) (n = 20): L = 497.64 (474.26–526.45) greatest diameter = 19.51 (17.80–22.33) pharynx length = 110.37 (100.95–118.00) Tail length = 95.96 (88.50–102.10) (Table 1).

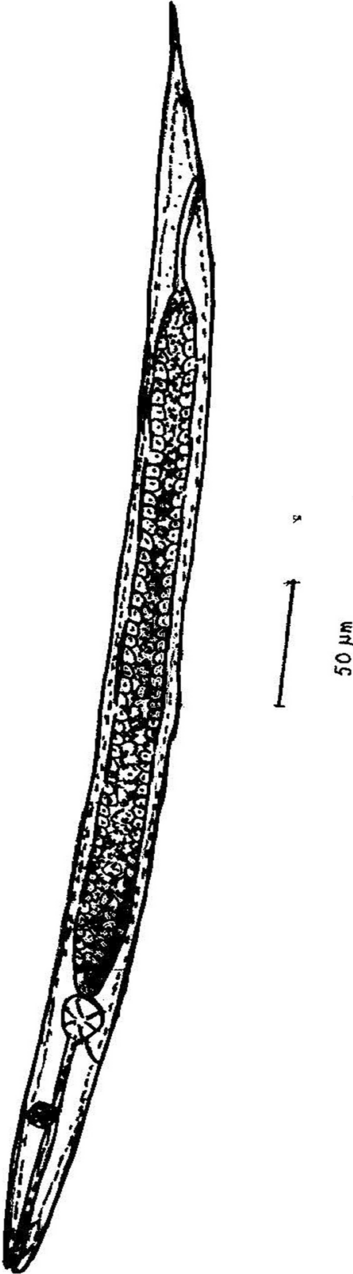

Fig. 2
figure 2

The third infective juvenile stage of Heterorahbditis alii, a the whole body; b Anterior end; c Posterior end

Table 1 Morphometrics in micrometers of infective nematode juveniles of the novel species, Heterorhabditis alii

Hermaphroditic female (Fig. 3) (n = 20): L = 3532.67 (2646.28–4760.54) Distance from head to vulva opening = 1565.44 ( 1264.81–2054.81) Great diameter = 185.47 (157.59–207.84) Esophagus length = 171.06 (165.00–204.43) Tail length = 116.35 (98.30–137.52) Body diameter at anus = 48.02 (40.67–56.34) (Table 2).

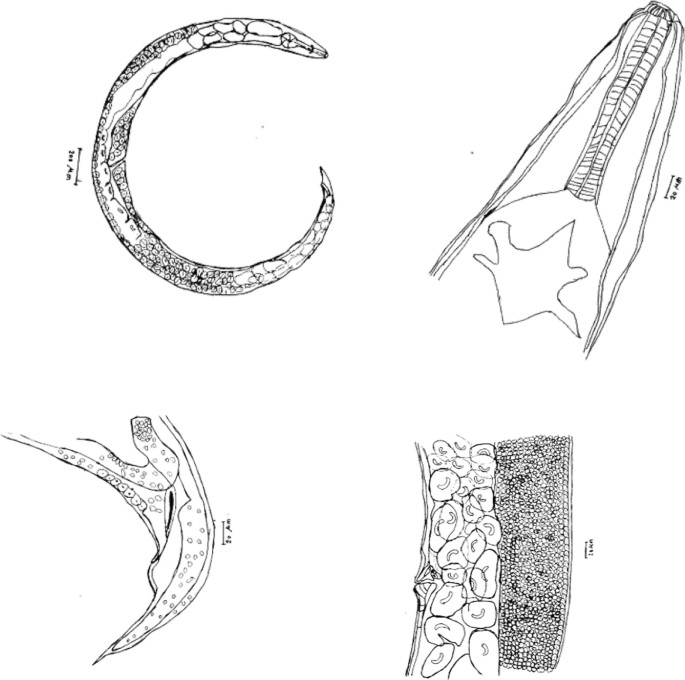

Fig. 3
figure 3

Hermaphroditic female of the novel species Heterorhabditis alii, a The whole female body; b Anterior end; c Region of the vulva; d) posterior end

Table 2 Morphometrics in micrometers of the hermaphrodite female of the novel species, Heterorhabditis alii

Description

Cadavers of the nematode infected greater wax moth were dissected and examined for five generations, with no males or amphimictic females were found in this new species. The only available stages found out in the life cycle of H. alii were the hermaphroditic females and the third juvenile stages. This phenomenon is a unique character in H. alii as a new EPN species. Neither the males nor amphimictic females found in this novel species, cross hybridization between this species nor other closely related nematode species could not be performed.

Hermaphroditic females: with paired, amphidelphic reflexed ovaries with sperm occurring in the proximal portion of the ovotestis; anal region conspicuously swollen. The anus occurred approximately at the anterior third of the anal swelling. The rectum is heavily cuticularized and a conspicuous valve separates it from the intestine. In comparison with other species that belong to the genus Heterorhabditis, the novel species H. alii is a medium size species in most measurements.

Third-stage infective juveniles: The infective juveniles (third-stage juveniles inside second stage cuticles). This species is one of the shortest among the previously described species of the genus Heterorhabditis The lips of the third-stage juvenile contain a large dorsal tooth and two smaller but distinct subventral teeth. The stoma walls are opened and not collapsed at the base. The outer second stage cuticle is strongly ribbed longitudinally and is closely oppressed to the third-stage cuticle. The hemizonid is quite distinct and located just anterior to the excretory pore. The smaller less distinct hemizonion is located in the anterior intestinal region. The ventricular portion of the intestine was devoid of intestinal cells and forms an intestinal pouch which was filled with the symbiotic bacteria. These bacteria also occurred in the lumen of the intestine, mainly in the anterior portion.

The described new species was preliminary registered in the ZooBank under the registration link of: LSID urn: lsid: zoobank.org: act: 306F9D57-CC30-4B8E-8B19-4F0E42B08F34.

The present research article was also preliminary registered in the ZooBank under the following link: LSID urn: lsid: zoobank.org: pub:541C0F91-8EA9-4660-A0B0-CA00FA7621D3.

This novel species will have an official status on the website of the ZooBank after the publication of the present manuscript.

Scanning electron microscope examination

The nematode infective juveniles were prepared for scanning electron microscope to demonstrate the morphological differences between H. indica and the novel species of H. alii. Ridges exists on the ventral side of the infective juveniles of H. alii were obvious while all IJs of H. indica had no ridges on their ventral side (Figs. 4, 5, and 6).

Fig. 4
figure 4

Scanning electron photomicrographs of Heterorhabditis alii infective juveniles show the transverse ridges exist on the nematode ventral side

Fig. 5
figure 5

Scanning electron photomicrographs of the infective juvenile ventral side of Heterorhabditis indica (right side of the graph) without transverse ridges and Heterorhabditis alii (left side of the graph) with transverse ridges

Fig. 6
figure 6

Scanning electron micrographs of the infective juveniles to compare between Heterorhabditis indica (upper two pictures) and Heterorhabditis alii (bottom two pictures). Notice the transverse ridges in the novel species of H. alii (bottom pictures)

Etymology

The new species of H. alii described here is named after the late Prof. Mohamed A. M. Ali of the Department of Plant Protection, Faculty of Agriculture, Al-Azhar University, Cairo, Egypt, in recognition of his endeavors to start the field of Entomonematology as early as the year 1968 in Egypt.

Laboratory bioassay of the new species against the FAW larvae

Virulence of the novel H. alii species against the FAW larvae was tested in comparison with one local EPN species, H. indica (Mango 2) and another foreign species of H. bacteriophora (HP88) using three different concentrations of 100, 250, and 500 IJs of the nematode infective juveniles (IJs) per 1 ml. of nematode suspension. The concentration screening assay showed that the new species, H. alii, with all tested instar larvae caused the highest mortality rate followed by H. bacteriophora (HP88), while H. indica (mango 2) caused the least mortality among the three tested nematodes (Table 3 and Figs. 7, 8, 9, and 10).

Table 3 Mortality rate of Spodoptera frugiperda for four larval instars induced by three concentrations of infective juveniles (IJs) for two native and one foreign heterorhabditid species in three time intervals
Fig. 7
figure 7

Effect of Heterorhabditis alii, H. bacteriophora (HP88), and H. indica on the 3rd instar larvae of Spodoptera frugiperda. Different letters on the bars indicate significant statistical differences

Fig. 8
figure 8

Effect of Heterorhabditis alii, H. bacteriophora (HP88), and H. indica on the 4th instar larvae of Spodoptera frugiperda. Different letters on the bars indicate significant statistical differences

Fig. 9
figure 9

Effect of Heterorhabditis alii, H. bacteriophora (HP88), and H. indica on the 5th instar larvae of Spodoptera frugiperda. Different letters on the bars indicate significant statistical differences

Fig. 10
figure 10

Effect of Heterorhabditis alii, H. bacteriophora (HP88), and H. indica on the 6th instar larvae of Spodoptera frugiperda. Different letters on the bars indicate significant statistical differences

After 24 h post-infection and when the novel species of H. alii was used at a concentration of 500 IJs/ml., 100% mortality rate was recorded for the 3rd, 4th, and 5th larval instars while the same concentration caused 78% with the 6th instar larvae (Table 3). In comparison, H. bacteriophora (HP88) caused less mortality rates of 44, 22, 22, and 11% on the 3rd, 4th, 5th, and 6th larval instars, respectively. As H. indica (Mango 2) when used at a concentration of 500 IJs/ml against the 3rd instar larvae. Mortality rates was the least and almost stable at 22, 11, 11, and 11% in the 3rd, 4th, 5th, and 6th larval instars, respectively (Table 3). The same trend was noticed with all tested nematode IJs concentrations.

The novel species of H. alii caused 100% mortality with the use of 500, 250, and 100 IJs/ml each treated after 24, 48, and 72 h post-infection, respectively, for all the tested larval instars. In comparison, H. bacteriophora (HP88) caused 100% mortality only in the 3rd instar larvae 72 h post-infection with all used nematode concentrations, while the two concentrations of 250 and 500 IJs/ml caused 100% mortality for the tested 4th, 5th, and 6th larval instars 72 h post-infection. When H. indica (Mango 2) was applied against the 3rd instar larvae of S. frugiperda, 100% mortality was occurred 72 h post-infection with all used nematode concentrations. When the same species was tested using 250 and 500 IJs/ml against the 4th instar larvae, 100% mortality occurred after 72 h post-infection, while the 5th and 6th larval instars were 100% killed after 72 h post-infection only when 500 IJs/ml were applied.

All used nematode IJs concentrations of H. alii caused 100% mortality rate after 48 and 72 h post-infection. The same results were obtained with the 3rd instar larvae of S. frugiperda after 72 h post-infection when H. bacteriophora (HP88) was used (Table 3 and Figs. 7, 8, 9, and 10). In contrast, H. indica (Mango 2) caused the least mortality rate with all tested instar larvae at all nematode IJs concentrations (Table 3 and Figs. 7, 8, 9, and 10). No mortality (0%) was observed in the non-treated control replicates.

Results of the conducted experimental work showed that our novel nematode species is promising for controlling the FAW invasive insect pest species and recently considered as one of the most destructive insect pests infesting corn in Egypt. All of the evaluated concentrations of this novel nematode species were effective and resulted in significant high mortality rates in all instar larvae of the FAW larvae at various time intervals comparing to the tested other two nematode species.

Discussion

The main objective of the present research efforts was to isolate and identify native species or isolates of EPN that can be used for the development of an efficient and sustainable biocontrol of the FAW, Spodoptera frugiperda, a devastative pest of corn in Egypt and other numerous global countries. Usually indigenous EPN species and/or isolates are more adapted to the local conditions compared to exotic ones, this will facilitate using them for direct commercial exploitation or as a source of genetic diversity in breeding programs aiming for production of improved beneficial nematodes (Choo et al. 1995).

The absence of males in the novel species of H. alii may attribute to a phenomenon called autotokous (producing progeny without males). Georgis and Gaugler (1991) stated that, however, heterorhabditid nematodes often perform better against certain insects than steinernematids but stable conditions for the production of Heterorhabditis spp. have not yet been achieved. In addition (Ehlers 1996), observed problems arise with the sensitivity of the nematodes to environmental extremes, e.g., high temperature, solar radiation, and desiccation, thus preventing exploitation of their maximal potential as control agents under field conditions. Strauch et al. (1994) assumed that in the genus Heterorhabditis., the offspring of the first generation hermaphrodite can either develop into amphimictic adults or automictic hermaphrodites. The pathway leading to amphimictic adults is induced by favorable nutritional conditions, whereas the development into automictic hermaphrodites is induced by low concentrations of nutrients or the absence of symbiotic bacteria. It is possible to have continuous lines of heterorhabditid hermaphrodites. The effect of infection level on reproduction potential has also been reported by Abd El-rahman (2006) who dealt with different species of heterorhabditid nematodes.

The present study explains the isolation and identification of five EPN isolates of Heterorhabditis spp. in Egypt. Based on molecular characterization using sequence homology data of the rRNA including the ITS-1 region, one isolate was identified as a new Heterorhabditis species. Our data are in agreement with Kajol et al. (2020) who reported that molecular characterization was essential for the validity of the taxonomic position as well as the phylogenetic relationships and authenticity among the species of a particular nematode genus. Moreover, the ITS-1 region is reportedly sufficient at assessing evolutionary relationships between species and differentiating them, particularly among Heterorhabditis spp. (Peat et al. 2009). Accurate identification of EPN has significant importance for the selection of species to be used in current and future biological control programs of insect pests. In addition, molecular identification of the present new species was supported by some differences in morphometrical and morphological observations when compared to Heterorhabditis indica.

EPNs occur naturally in the soil and show considerable promise as a biological control agent of insects (Bhairavi et al. 2021). The use of EPNs in insect pest management has been successfully demonstrated across the globe (Kumar et al. 2022). In a series of laboratory bioassays, when different species of EPNs that belong to the genera Steinernema and Heterorhabditis were used against different species of insect pests, mortality rate was also different throughout the years (Abbas, 2021).

The present study has evaluated the efficacy of two indigenous EPN species, Heterorhabditis alii and H. indica (mango 2) and one foreign EPN species, H. bacteriophora (HP88) against the FAW. A susceptibility test was performed by using different concentrations of each EPN species against this devastative pest. The result demonstrated that EPNs are capable of infecting and killing different instars of FAW larvae at different IJs concentrations in the laboratory.

The EPN virulence depends on their inherent characteristics and the type of their hosts (Acharya et al. 2020). Environment factors, stages of the host, the capability to find the host and the presence of the host lethal symbiotic bacteria, host penetration all influence the potentials of EPN were observed (Batalla-Carrera et al. 2010). Previous studies have also reported a positive relationship between IJs concentrations and mortality of treated insect larvae. There was a positive proportional increase in the mortality of the FAW larvae with an increase in density of infective juveniles per milliliter of sterilized distilled water.

In agreement with the present results, Viteri et al. (2018) found that when Heterorhabditis sp. and Steinernema arenarium were used in a concentration of 200 IJs/5th instar larvae of S. frugiperda, the mortality rates were 96.07 and 100.00%, respectively. In addition, Garcia et al. (2008) reported that Steinernema sp. caused 100% mortality when 280 IJs were used against the 3rd instar larvae of S. frugiperda. In contrast, H. indica at a concentration of 400 IJs/ml against the 3rd instar S. frugiperda larvae caused 75.00% mortality at 48 h post-incubation.

In another publication, the concentrations of 50 and 100 IJs/ml of the nematode Steinernema diaprepesi were tested against last instar larvae of S. frugiperda achieved mortality rates of 93.00 and 100.00% at 144 h post-incubation (Caccia et al. 2014).

Several studies are in agreement with obtained results, they have recorded decreases in susceptibility to EPNs when insect age increases (Fallet et al. 2022). In support to our findings, Acharya et al. (2020) reported that younger larvae of the first three instar larvae of the FAW were more susceptible to the nematodes H. indica and S. carpocapsae, while the last three older instars were susceptible to S. arenarium and S. longicaudum.

Findings about high virulence of EPN against 3rd instar larvae of S. frugiperda are in agreement with our results and the findings of other researchers (Patil et al. 2022). The current and previous results also agree with the findings of (Wattanachaiyingcharoen et al. 2021) who discovered that 2nd instar larvae of the FAW was more susceptible to H. indica (AUT 13.2) and S. siamkayai (APL 12.3) than the 5th instar larvae.

Variations observed in mortality of the FAW larvae by the nematode isolates can be attributed to differences in the virulence of the tested nematode isolates which is determined by the presence of symbiotic bacteria and the ability of the nematode to find and flourish inside the host (Shapiro-Ilan et al. 2006).

Further studies have revealed that virulence of EPNs on the FAW larvae varies not only among nematode species but among isolates of the same species (Acharya et al. 2020). Meanwhile in laboratory studies where most environmental conditions were uniform, differences in mortality rates were attributed to the impact of different symbiotic bacteria in the nematode isolates which are responsible for killing the insect host. The genus of the symbiotic bacteria, Photorhabdus, is associated with all nematode species belonging to Heterorhabditidae family (Boemare et al. 1993). These species of bacteria are reported to release numerous toxins (Hinchliffe et al. 2010) that restrain the immune response of the target insect host or disrupt the normal immune development by disturbing host tissues (Dowling and Waterfield 2007).

The majority of insect pests at early developmental stages are susceptible to the infection by EPN and thus they are the best candidates to unravel pest problems (Dillon et al. 2006). Actually native isolated of EPN is more adapted to local environmental conditions (Sun et al. 2021). Consequently, and in support of the findings, the use of native nematode isolates may reduce the potential risk of applying genetically diverse alien isolates and/or species as biological control agents in a certain region, which greatly reduces the damage to the native environment (Fallet et al. 2022).

Conclusions

The present study elucidates the discovery of a new species of the EPNs, Heterorhabditis spp. in Egypt. This new species named Heterorhabditis alii after the late Professor Mohamed Ali of Al-Azhar University. The results were confirmed by morphological using light and scanning electron microscopes (SEM) as well as molecular analysis of the DNA sequencing. The discovered new species lack the presence of males and amphimictic females which is a unique phenomenon. Three heterorhabditid species, including the newly isolated one, a foreign Heterorhabditis bacteriophora (HP88), and a local H. indica (Mango 2), were tested against four larval instars of the FAW, Spodoptera frugiperda. H. alii showed the highest mortality level in shorter times than H. bacteriophora (HP88) and H. indica (mango 2) against the FAW. Yet, more field studies are required to explore the usage of the new species as in the biological control programs against this devastative pest of corn in Egypt and other world countries.

Availability of data and materials

Not applicable.

Abbreviations

EPNs:

Entomopathogenic nematodes

FAW:

Fall armyworm

IJs:

Infective juveniles

ITS:

Internal transcribed spacer

NCBI:

National Center for Biotechnology Information

LM:

Light microscope

SEM:

Scanning electron microscope

References

  • Abbas W, Javed N, Haq IU, Ahmed S (2021) Pathogenicity of entomopathogenic nematodes against cabbage butterfly (Pieris brassicae) Linnaeus (Lepidoptera: Pieridae) in laboratory conditions. Int J Trop Insect Sci 41:525–531

    Article  Google Scholar

  • Abd-El-Rahman RM (2006) Isolation and identification of Heterorhabditis baujardi (Phan et al, 2003) as a first record from Egypt and studying some of its biological traits. Egypt J of Appl Sci 8(2A):298–307

    MathSciNet  Google Scholar

  • Acharya R, Hwang HS, Mostafiz MM, Yu YS, Lee KY (2020) Susceptibility of Various Developmental Stages of the Fall Armyworm, Spodoptera frugiperda, to Entomopathogenic Nematodes. InSects 11(12):868–678. https://doi.org/10.3390/insects11120868

    Article  PubMed  PubMed Central  Google Scholar

  • Batalla-Carrera L, Morton A, García-del-Pino F (2010) Efficacy of entomopathogenic nematodes against the tomato leafminer Tuta absoluta in laboratory and greenhouse conditions. Biocontrol 55(4):523–530

    Article  Google Scholar

  • Bhairavi KS, Bhattacharyya B, Devi G, Bhagawati S, Das PPG, Devi EB (2021) Evaluation of two native entomopathogenic nematodes against Odontotermes obesus (Rambur) (Isoptera: Termitidae) and Agrotis ipsilon (Hufnagel) (Lepidoptera: Noctuidae). Egypt J Biol Pest Control 31:111

    Article  Google Scholar

  • Bhat A, Chaubey A, Shokoohi E (2020) Molecular and Phenotypic Characterization of Heterorhabditis indica (Nematoda: Rhabditida) Nematodes Isolated During a Survey of Agricultural Soils in Western Uttar Pradesh India. Acta Parasitol. https://doi.org/10.1080/002229331810352

    Article  PubMed  Google Scholar

  • Boemare N, Akhurst R, Mourant R (1993) DNA relatedness between Xenorhabdus spp (Enterobacteriaceae), symbiotic bacteria of entomopathogenic nematodes, and a proposal to transfer Xenorhabdus luminescens to a new genus, Photorhabdus gen nov. Int J Syst Evolut Microbiol 43(2):52249–52255

    Google Scholar

  • Caccia MG, Del Valle E, Doucet ME, Lax P (2014) Susceptibility of Spodoptera frugiperda and Helicoverpa gelotopoeon (Lepidoptera: Noctuidae) to the entomopathogenic nematode Steinernema diaprepesi (Rhabditida: Steinernematidae) under laboratory conditions. Chil J Agric Res 74(1):123–126

    Article  Google Scholar

  • Choo PW, Donahue JG, Manson JE, Platt R (1995) The epidemiology of varicella and its complications. J Infect Dis 172(3):706–712

    Article  CAS  PubMed  Google Scholar

  • Dillon AB, Ward D, Downes MJ, Griyn C (2006) Suppression of the large pine weevil Hylobius abietis (L.) (Coleoptera: Curculionidae) in pine stumps by entomopathogenic nematodes with different foraging strategies. Biol Control 38:217–226

    Article  Google Scholar

  • Dowling A, Waterfield NR (2007) Insecticidal toxins from Photorhabdus bacteria and their potential use in agriculture. Toxicon 49(4):436–451

    Article  PubMed  Google Scholar

  • Ehlers RU (1996) Current and future use of nematodes in biocontrol: practice and commercial aspects with regard to regulatory policy issues. Biocontrol Sci Tech 6(3):303–316

    Article  Google Scholar

  • Fallet P, Gianni LD, Machado RAR Bruno P, Bernal JS, Karangwa P, Kajuga J, Waweru B, Bazagwira D, Degen T (2022) Comparative screening of Mexican, Rwandan and commercial entomopathogenic nematodes to be used against invasive fall Armyworm Spodoptera frugiperda. InSects 13:205

    Article  PubMed  PubMed Central  Google Scholar

  • Garcia LC, Raetano CG, Leite LG (2008) Application technology for the entomopathogenic nematodes Heterorhabditis indica and Steinernema sp. (Rhabditida: Heterorhabditidae and Steinernematidae) to control Spodoptera frugiperda (Smith) (Lepidoptera: Noctuidae) in corn. Neotropical Entomol 37(3):305–311. https://doi.org/10.1590/S1519-566X2008000300010

    Article  Google Scholar

  • Georgis R, Gaugler R (1991) Predictability in biological control using entomopathogenic nematodes. J Econ Entomol 84(3):713–720

    Article  Google Scholar

  • Gozel U, Gozel C (2016) Entomopathogenic Nematodes in Pest Management [Internet]. Integrated Pest Management (IPM): Environmentally Sound Pest Management. In Tech. https://doi.org/10.5772/63894.

  • Hall TA (1999) A user-friendly biological sequence alignment editor and analysis program for windows 95/98/NT. Nucleic Acids Symp Ser 41:95–98

    CAS  Google Scholar

  • Hazir S, Kaya H, Touray M, Cimen H, Ilan DS (2022) Basic laboratory and field manual for conducting research with the entomopathogenic nematodes, Steinernema and Heterorhabditis, and their bacterial symbionts. Turkish J Zool 46(4):305–350

    Article  Google Scholar

  • Hinchliffe SJ, Hares MC, Dowling AJ (2010) Insecticidal toxins from the Photorhabdus and Xenorhabdus bacteria. The Open Toxinology Journal 3(1):83–100. https://doi.org/10.2174/1875414701003010083

    Article  CAS  Google Scholar

  • Kajol Y, Bhat AH, Rana A, Chaubey AK (2020) Biochemical and molecular characterization of associated Photorhabdus symbiont of Indian strain of Heterorhabditis indica and its efficacy. Pak J Nematol 38(1):15–24. https://doi.org/10.18681/pjn.v38.i01.p15-24

    Article  Google Scholar

  • Kaya HK, Stock SP (1997) Techniques in insect nematology. In Manual of Techniques in Insect pathology pp 281–324.

  • Khashaba AE, Azim, (2021) Isolation, identification, and study of the genetic diversity between three entomopathogenic nematodes belonging to Heterorhabditis sp. using ISSR technique. Egyptian J Biol Pest Control 31(84):2–7

    Google Scholar

  • Kumar KK, George A, Behere GT, Thorat YE, Ingle D, Sinh DP (2022) Pathogenicity of Heterorhabditis indica against developmental stages of Eudocima materna L. (Lepidoptera, Erebidae). Egypt J Biol Pest Control 32:65. https://doi.org/10.1186/s41938-​022-​00563-1

    Article  Google Scholar

  • Nguyen KB, Smart GC Jr (1990) Steinernema scapterisci n. sp. (Rhabditida:Steinernematidae). J Nematol 22(2):187

    CAS  PubMed  PubMed Central  Google Scholar

  • Nguyen KB, Smart GC Jr (1995) Morphometrics of infective juveniles of Steinernema spp and Heterorhabditis bacteriophora (Nemata: Rhabditida). J Nematol 27(2):206

    CAS  PubMed  PubMed Central  Google Scholar

  • Patil J, Linga V, Vijayakumar R, Subaharan L, Navik O, Bakthavatsalam N, Mhatrec PH, Sekhard J (2022) Biocontrol potential of entomopathogenic nematodes for the sustainable management of Spodoptera frugiperda (Lepidoptera: Noctuidae) in maize. Pest Manag Sci 78:2883–2895

    Article  CAS  PubMed  Google Scholar

  • Peat C, Mitchell JE, Hoek HW, Wonderlich SA (2009) Validity and utility of subtyping anorexia nervosa. Int J Eat Disord 42(7):590–594

    Article  PubMed  PubMed Central  Google Scholar

  • Půža V, Campos-Herrera R, Blanco-Pérez R, Jakubíková H, Vicente-Díez I, Nermuť J (2020) Steinernema riojaense n. sp., a new entomopathogenic nematode (Nematoda: Steinernematidae) from Spain. Nematology 22(7):825–841

    Article  Google Scholar

  • Sankaranarayanan S, Balaji Y, Jain A, Lim SN, Chellappa R (2017) Unsupervised domain adaptation for semantic segmentation with gans. arXiv preprint arXiv:1711.06969 2(2):2.

  • Shapiro-Ilan DI, Gouge DH, Piggott SJ, Fife JP (2006) Application technology and environmental considerations for use of entomopathogenic nematodes in biological control. Biol Control 38(1):124–133

    Article  Google Scholar

  • Strauch O, Stoessel S, Ehlers RU (1994) Culture conditions define automictic or amphimictic reproduction in entomopathogenic rhabditid nematodes of the genus Heterorhabditis. Fundam Appl Nematol 17(6):575–582

    Google Scholar

  • Subbotin SA, Halford PD, Warry A, Perry RN (2000) Variations in ribosomal DNA sequences and phylogeny of Globodera parasitising solanaceous plants. Nematology 2(6):591–604

    Article  CAS  Google Scholar

  • Sun B, Zhang X, Song L, Zheng L, Wei X, Gu X, Ruan W (2021) Evaluation of indigenous entomopathogenic nematodes in Southwest China as potential biocontrol agents against (Lepidoptera: Noctuidae). J Nematol 53(1):1–17

    Article  Google Scholar

  • Tarasco E, Kary NE, Fanelli E, Mohammadi D, Xingyue L, Mehrvar A, Troccoli DF, A, (2020) Modified bait insect technique in entomopathogens’ survey from the arasbaran biosphere reserve (Iran). Redia 103:129–132

    Article  Google Scholar

  • Tarasco E, Fanelli E, Salvemini C, El-Khoury Y, Troccoli A, Vovlas A, De Luca F (2023) Entomopathogenic Nematodes and their Symbiotic Bacteria: from Genes to Field Uses-the Italian experience. Front Insect Sci 3:1195254

    Article  Google Scholar

  • Viteri DM, Linares AM, Flores L (2018) Use of the entomopathogenic nematode Steinernema carpocapsae in combination with low-toxicity insecticides to control fall Armyworm (Lepidoptera: Noctuidae) larvae. Florida Entomologist 101(2):327–329

    Article  CAS  Google Scholar

  • Wattanachaiyingcharoen W, Lepcha O, Vitta A, Wattanachaiyingcharoen D (2021) Efficacy of Thai indigenous entomopathogenic nematodes for controlling fall Armyworm (Spodoptera frugiperda) (JE Smith) (Lepidoptera; Noctuidae). Egypt J Biol Pest Control 31(1):1–7

    Article  Google Scholar

  • White GF (1927) A method for obtaining infective nematode larvae from cultures. Science 66(1709):302–303

    Article  CAS  PubMed  ADS  Google Scholar
