Field evaluation of botanicals extracts for suppressing the mango scale insect, Aulacaspis tubercularis (Newstead) (Hemiptera: Diaspididae)


Insecticidal property of aloe, ginger, garlic, and hot pepper extracts were evaluated in the form of alone spray or in combination of two plant sources or as a mixture of all plant extracts in comparison to the insecticide Lambda on the mango scale insect, Aulacaspis tubercularis (Newstead) (Hemiptera: Diaspididae). Field experiments were carried out at Fayoum Governorate, Egypt, in February 2017 and March 2018. Results revealed that Lambda insecticide decreased the population of treated A. tubercularis, and the total reduction rates reached to 62.0 and 72.52% in seasons 2017 and 2018, respectively. Meanwhile, the used botanical mixture caused 83.60 and 72.52% reduction of the scale insects in the respective seasons. Also, results revealed that the combination of garlic and aloe was the most effective one in reducing A. tubercularis in the two successive seasons by 58.71 and 59.93%, respectively. The hot pepper was the least effective one in reducing population with the rates of 19.48% in season 2017 and 21.51% in season 2018.


Mango is one of the most economic fruit trees, because its fruits are rich in carbohydrates, natural fibers, vitamins, and minerals (Hassan et al. 2012). Mango yield has been drastically decreased by the attack of certain diseases and pests. One of those is the scale insect, Aulacaspis tubercularis (Newstead) (Hemiptera: Diaspididae), which causes severe problems represented by removal of plant sap, turning of trees to pale green or yellow, and excretion of honey dew the suitable medium for the growth of sooty mold fungi, which cover mango leaves (Tandon and Verghese 1985). Due to this, photosynthesis is reduced resulting in great reduction of the yield and the income of the farmers. Scale insects are covered with waxy layer, which protect them from contact pesticides (Morsi et al. 2002; Radwan 2003; Abo-Shanab 2012). A broad spectrum of insecticides used to control the pest has led to environmental pollution, mammalian toxicity, and increased resistance of the insects to the insecticides (Delobel and Malonga 1987). Keeping in view facts about severity caused by chemical insecticides, natural alternatives as certain plant products have been taken into account as natural pesticides (El Sayed 1982). Mainly, certain botanicals that comprise compounds that possess insecticidal properties are commonly used in traditional control (Golob et al. 1982). Aloe, Aloe vera (Family: Aloaceae), is one of the most useful plants exhibiting repellent and insecticidal properties by its bitter taste (Gayathri 2016). Ginger, Zingiber officinale Roscoe (Family: Zingiberaceae) used worldwide as a traditional medicine, has recently been found possessing an insecticidal effect on many insects (Okonkwo and Ohaeri 2013). Garlic, Allium sativum L. (Family: Alliaceae), has a strong odor, which helps in disturbing insects searching potential plant hosts. Besides, it contains salphone hydroxyl ion, which acts as a poison and repellent for insects including ants, moths, beetles, ticks, and termites in their developmental stages (Teklay et al. 2012). Hot pepper, Capsicum annum (Family: Capsaicidae), contains capsaicin compound and has many uses as spice and public medicine, as well as its ability to kill certain insects (Nesel et al. 2016). The present work dealt with the evaluation of spraying plant extracts either alone or as a mixture on mango trees to suppress the populations of scale insects on mango trees.

Materials and methods

Preparation of the plant extracts

The plant extracts were prepared at the rearing laboratory of Fayoum Governorate, Plant Protection Institute, Agricultural Research Center, Egypt. Fresh ginger rhizomes, garlic bulbs, and dry full grown hot pepper fruits were purchased, and aloe was collected from surrounding gardens of the laboratory. About 1 kg of ginger and garlic bulbs were cleaned, ground well, added to 1 kg of hot pepper in the form of well-developed fruits, dried well in electric oven, and then grinded by an electric grinder. All the plant sources were soaked in 10 l water for 72 h. Then, that mixture was refined by a piece of cotton cloth, squeezed well. One kilogram of aloe leaves was washed and cut into small pieces then blinded to collect the transparent gel, which was added to the resultant filtrate and diluted to 100 l water for spraying mango trees.

Field experiments

Field experiments were carried out on the 25th of February 2017 and the 3rd of March 2018, at a private orchard of mango trees (15 years old), at Naqalifah Village. Fayoum Governorate, Egypt. The tested botanical extracts and the insecticide Lambda (Chema Industries Company, Alexandria, Egypt) were evaluated and compared to the controls. In the two seasons, the experimental area used was one Feddan (4200 m2), divided into plots in a complete randomized block design with three replicates/treatment and five trees/replicate. Each plot was separated from the adjacent plot by a row of mango trees as a barrier. The treatments were sprayed by a knapsack motor sprayer of 600 l at a mean rate of 20 l/tree to assure full covering of the tree. The treatments were sprayed in the early morning. The treatments were as follows:

  • Each of the aloe, ginger, garlic, and hot pepper extracts were prepared by grinding 1 kg of each plant source and soaked in 10 l of water for 72 h, then filtered by means of a piece of cotton cloth, then the resultant was diluted to 100 l water and sprayed separately.

  • Two botanical sources were combined together and sprayed as follows: ginger + garlic; ginger + hot pepper; ginger + aloe; garlic + hot pepper; garlic + aloe; and hot pepper + aloe.

  • Mixture of ginger, garlic, and hot pepper with aloe.

  • Lambda cyhalothrin 5 EC with the rate of 0.5 ml/l.

  • Untreated control.

Data collection

Inspection was conducted by picking out 30 treated mango leaves (as there were no fruits at the time of the experiment) randomly per each replicate, placed in paper bags and transferred to the laboratory for examination, which was done by means of binocular microscope for counting live and dead individuals on both surfaces of the leaves. Inspection was accomplished pretreatment and post-treatment after 1, 3, and 7 days.

Statistical analysis

Reduction percentage of scale insect population was the base of the evaluation of the tested materials. It was calculated according to Henderson and Tilton (1955) equation:

$$ \mathrm{Reduction}\ \mathrm{percentage}=\left[1-\frac{\mathrm{No}.\mathrm{in}\ \mathrm{Control}\ \mathrm{before}\ \mathrm{Treatment}\times \mathrm{No}.\mathrm{in}\ \mathrm{Treatment}\ \mathrm{after}\ \mathrm{Treatment}\ }{\mathrm{No}.\mathrm{in}\ \mathrm{Control}\ \mathrm{after}\ \mathrm{Treatment}\times \mathrm{No}.\mathrm{in}\ \mathrm{Treatment}\ \mathrm{before}\ \mathrm{Treatment}}\right]\times 100 $$

Obtained data of botanical sources was compared to those of Lambda and control plots. Analysis of variance was used on all data (ANOVA), and means were separated by Duncan’s multiple range tests (Snedecor and Cochran 1980).

Results and discussion

Population number of scale insects on mango trees

Data in Table 1 revealed that the pre-count of A. tubercularis in all treatments ranged between 16.0 and 16.70 individuals/30 leaves. Controls recorded the highest number of scale insects after 1, 3, and 7 days of the treatments, respectively, with the means of 16.43, 16.33, and 16.6 individuals/30 leaves in season 2017 and 14.27, 14.43, and 13.93 scale insects/30 leaves in season 2018. The botanical extracts differed significantly in the counts of scale insects on mango leaves recorded 7.33, 1.17, and 0 scale insects/30 leaves in season 2017 and 7.0, 0.88, and 0 individuals/30 leaves in season 2018 after 1, 3, and 7 days, respectively. Also, in plots treated with Lambda insecticide the scale insects reduced to 10.0, 4.67, and 3.67 individuals/30 leaves in season 2017 and 7.33, 2.0, and 1.93 individuals/30 leaves in season 2018 at 1, 3, and 7 days post-treatment, respectively. Aloe extract decreased the population to 10.73, 8.67, and 5.33 scale insects/30 leaves in season 2017 and 10.4, 4.47, and 5.0 scale insects/30 leaves in season 2018, respectively, at the above mentioned intervals followed by the garlic extract, which recorded 11.1, 8.7, and 6.67 scale insects/30 leaves in season 2017 and 10.33, 8.37, and 5.33 scale insects/30 leaves in season 2018 at different tested intervals. Results revealed that the combination of garlic + aloe extracts decreased the population to 11.23, 6.67, and 3.33 scale insects/30 leaves in season 2017 and 9.9, 6.33, and 3.0 scale insects/30 leaves in 2018 season after 1, 3, and 7 days, respectively.

Table 1 Population of scales pre- and post-treatments in seasons 2017 and 2018 at Fayoum Governorate

Reduction percentages of the scale insect, A. tubercularis

The percentages of the scale insect reduction on mango leaves varied among the tested materials where it varied with the inspection intervals in season 2017. The most obvious reduction was calculated after the treatment with the botanical extracts as they indicated 56.45, 93.03 and 100% followed by that treated with Lambda insecticide, which recorded 39.4, 71.54, and 78.002% post the intervals of 1, 3, and 7 days, respectively. In season 2018, the same trend was noticed for the reduction of scale insects, A. tubercularis, on mango leaves treated with the botanical extracts, as they indicated percentages of 57.94, 95.05, and 100% at 1, 3, and 7 days, respectively, after treatments. Also, the plots treated with Lambda showed reduction in scale insects that reached to 47.34, 85.81, and 85.79% at the previous intervals, respectively. Results showed that aloe extract alone decreased the percentages of scale insects to 36.25, 48.21, and 68.64% in season 2017 and 37.52, 43.47, and 69.24% in season 2018 at the intervals of 1, 3, and 7 days, respectively, followed by the garlic extract, which were 33.41, 47.49, and 60.41% in 2017 and 37.27, 49.8, and 66.85% in 2018. Also, the combination of garlic + aloe extracts was superior in its lethal effect than the other combinations in seasons 2017 and 2018 as it decreased the scale insects ratio to 37.98, 59.35, and 80.002% and 39.28, 61.61, and 81.16% after 1, 3, and 7 days, respectively (Figs. 1 and 2).

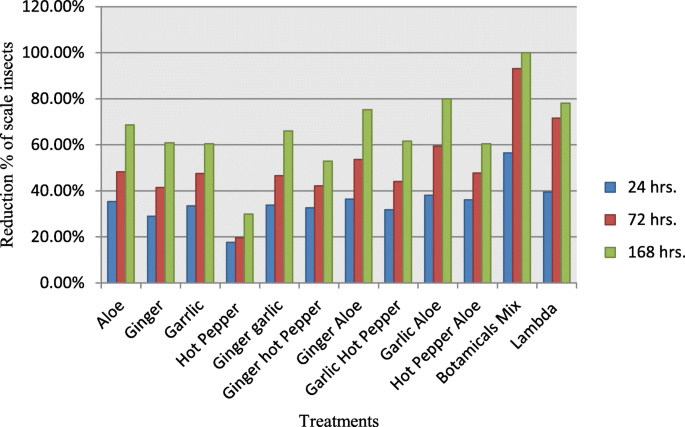

Fig. 1

Reduction percentage of mango scale insect, Aulacaspis tubercularis, after different treatments by plant extracts in season of 2017

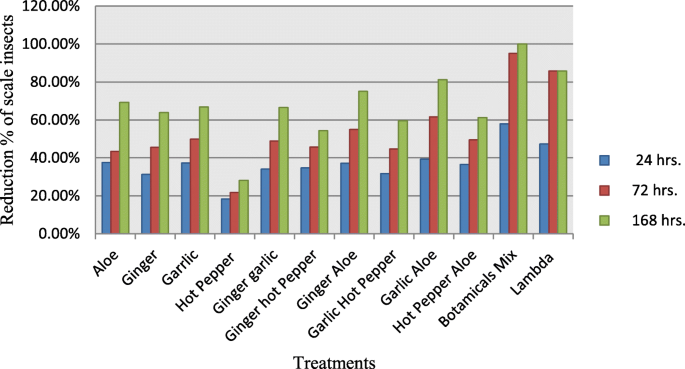

Fig. 2

Reduction percentage of mango scale insect, Aulacaspis tubercularis, after different treatments by plant extracts in season of 2018

Arutselvi et al. (2012) tested A. vera as a natural product on thrips and reported that A. vera showed a lethal effect on that insect. Teklay et al. (2012) assessed the efficacy of certain plants including A. vera and garlic against different insects and reported that A. vera extract was more effective in repelling than killing insects because of its bitter taste. Garlic bulbs extract had an insecticidal effect referred to its content of salphone hydroxyl ion, which penetrates the barrier of the insect blood brain acting as a poison to the insect (Douiri and Boughdad 2013). Many papers worked on different plant sources for pest control safely, as those of Wang 2015 who reported that ginger essential oil and rhizomes had a bio activity on agricultural stored product insects. Also, Okonkwo and Ohaeri (2013) tested Capsicum annum and Zingiber officinale on brown plant hopper and found that those plants had insecticidal properties against treated insects. Also, many trials using natural plants were conducted to control scale insects and mealy bugs like those of Ibrahim et al. (2001); Hollingsworth (2005); Alice (2008); Dubey and Srivastavab (2008); Cloy et al. (2009); and Amany et al. (2011) who tried to fight scales on citrus trees with natural products.


Botanical extracts of aloe, ginger, garlic, and hot pepper had potentials to control scale insects on mango trees as those plants are available locally and can be prepared easily. The safe use of such extracts can be alternative to the chemical pesticides saving farmer efforts, money, and time facing and controlling of such pests.

Availability of data and materials

The data and materials of this study have been presented in the manuscript.


  1. Abo-Shanab ASH (2012) Suppression of white mango scale Aulacapsis tubercularis (Hemiptera: Diaspididae) on mango trees in EL-Beheira Governorate. Egypt. Egypt. Acad. Biol. Sci. 5(3):43–50

    Google Scholar

  2. Alice RPS (2008) The biological and behavioral impact of some indigenous plant products on rice white backed plant hopper (WBPH) Sogatella furcifera (Horvath) (Homoptera: Delphacidae). J. of Biopest. 1(2):193–196

    Google Scholar

  3. Amany SEL-H, EL-Sahn OMN, Yacoub SHS (2011) Effect of some plant extraction on citrus mealy bug Planococcus citri (Risso). Egypt J. Agric. Res. 89(2):511–519

    Google Scholar

  4. Arutselvi, R., P. Ponumurugan, T. B. Saravanan and R. Suresh 2012. Formulation of natural insecticides against Panchaetothrips indicus Bagnall in Curcuma longa L. leaves of PTS and Erode varieties. J. Biopest. 5 (supplementary): 77-81.

  5. Cloy RA, Galle CL, Keith SR, Kalscheur NA, Kemp KE (2009) Effect of commercially available plant derived essential oil products on arthropod pest. J. of Econ. Entomol. 102(4):1567–1579

    Article  Google Scholar

  6. Delobel A, Malonga P (1987) Insecticidal properties of six plant materials against Caryedon serriatus Oliv. J. Stored Prod. Res. 23(3):173–176

    Article  Google Scholar

  7. Douiri LF, Boughdad A (2013) Chemical composition and biological activity of Allium sativum essential oils against Callosobruchus maculatus, Mohieddine Moumni. IOSR-JESTFT 2013(3):30–36

    Article  Google Scholar

  8. Dubey NK, Srivastavab KA (2008) Current status of plant products as botanical pesticides in storage pest management. J. Bio. Pest 2008(1):182–186

    Google Scholar

  9. ELSayed, E. I. 1982. Neem A. indica seeds as antifeedant and ovipositional repellent for the Egyptian cotton leafworm Spodoptera littoralis (Biosd.). Bull. Ent. Soc. Egypt, Econ. Ser. (49): 49-58.

  10. Gayathri P (2016) Aloe vera- a mini review. In Research and Reviews: J. of Chem. Special issue-S1 (September 2016)

  11. Golob O, Mwumbola JV, Ngulube F (1982) The use of locally available materials as protectants of maize grains against insect’s infestation during storage in Malawi. J. Stored. Prod. Res. 18:67–74

    Article  Google Scholar

  12. Hassan, N. A., S. G. Radwan and O. M. N. EL-Sahn 2012. Common scale insects (Hemiptera: coccoidea) in Egypt. Egypt Acad. J. Biol. Sci., 5(3): 153-160.

  13. Henderson CF, Tilton EW (1955) Tests with Acaricides against the brown wheat mite. J. Econ. Entomol. 48(2):157–161

    CAS  Article  Google Scholar

  14. Hollingoworth RG (2005) Limonine, a citrus extracts for control of mealy bugs and scale insects. J. of Econ. Entomol. 98(3):772–779

    Article  Google Scholar

  15. Ibrahim MA, Kainulainen P, Aflatuni A, Holopainen JK (2001) Insecticidal repellent, antimicrobial activity and phytotoxicity of essential oils: with special reference to limonene and its suitability for control of insect pests. Agric. and Food Sci. in Finland 10:243–259

    CAS  Article  Google Scholar

  16. Morsi, G. A., M. F. Girgis and M. A. Abdel-Aziz 2002. The population density of the mango scale Aulacaspis tubercularis (Newstead) (Homoptera: Diaspididae) and its parasitoids in Middle Egypt. 2nd International Conference, Plant Protection Research Institute, Cairo, Egypt, 21-24 December 2002.

  17. Nesel, A., B. G. Charleston, J. A. Genovia, M. D. E. Paye and G. S. Rosales 2016. Testing the insecticidal potential of Chili pepper (Capsicum frutescens) fruit extract against termites (Coptotermes gestroi). Bio 182. Biotech. 2016.

  18. Okonkwo CO, Ohaeri OC (2013) Insecticidal potentials of some selected plants. J. of chem. and pharma. Resear. 5(4):370–376

    Google Scholar

  19. Radwan, S. 2003. Toxicological studies on some scale insects infesting mango and guava trees. Ph. D. Thesis, Fac. Agric. Cairo Univ., 221 pp.

  20. Snedecor, G. W. and W. G. Cochran 1980. Statistical methods, 2nd The Iowa State University Press Ames Iowa.

  21. Tandon, P. L. and A. Verghese 1985. World list of insect, mite and other pests of mango. Technical Document No. 5. IIHR. Banglore, P: 22 (1985).

  22. Teklay M, Prasad SHKR, Etana B, Belay K, Aregai T (2012) Insecticidal and repellent properties of selected medicinal plants collected from Sofoho, Axum, North East Africa. Int. J. Int. Sci. Inn. Tech. Sec. A 1(3):1–8

    Google Scholar

  23. Wang Y (2015) Bioactivity of essential oil of Zingiber purpureum rhizomes and its main compounds against two stored product insects. J. Entomol. 2015(108):925–932

    Google Scholar
