Biocontrol potential of entomopathogenic nematodes against the Khapra beetle Trogoderma granarium (Everts) (Coleoptera: Dermestidae)

Abstract

Background

The Khapra beetle, Trogoderma granarium (Everts) (Coleoptera: Dermestidae) is one of the most destructive pests of stored wheat and barley worldwide. The broad practice of insecticides has been connected with insect resistance development coupled with the renaissance treated primary insects, environmental contamination, and toxicity to animals, man and other non-target organisms. These harms have invigorated the usage of alternative methods of managing this insect pest.

Results

For biocontrol potential, four species of entomopathogenic nematodes (EPN) were tested: Steinernema pakistanense PCSIR-10, S. bifurcatum PCSIR-39, S. saimkayai PCSIR-6 and S. abbasi PCSIR-17, against adult and larval stages of Khapra beetle under laboratory conditions. At 250 IJs/ml, S. pakistanense and S. bifurcatum caused 100 and 90% at larval stages and 92 and 89% against adult beetles, respectively.

Conclusion

This study documented that EPNs had a potential to control stored grain pest and could be utilized as alternatives of insecticides, which provide an adequate control of insect pest at postharvest stage, but in future more experiment will be required in commercial storage conditions.

Background

Trogoderma granarium (Everts) (Coleoptera: Dermestidae) (Khapra beetle) is one of the most destructive pests of stored wheat and barley worldwide. It ranked as one of the 100 worst invasive species worldwide (Lowe et al. 2000). Adults and larvae of T. granarium both caused damage, but the larvae are voracious feeder (Athanassiou et al. 2019). They have potential to survive for a lengthier period (Honey et al. 2017). All types of stored grains’ pests have effect the quality and quantitative loss of grains. The most popular method of controlling the pest is the application of synthetic pesticides, which are pricy, harmful to non-targeted organisms due to the direct influence on the targeted organism and have hazardous effect on the environment. Biological control is now frequently utilized as an alternative tool to synthetic pesticides (Quarcoo et al. 2014). There is a need to develop safe and sustainable control measures in the pest management. Hence, biological control is growing more than three times faster than synthetic pesticides (Van Lantern et al. 2018).

Entomopathogenic nematodes (EPNs) of the Phylum Nematoda (Kanzaki et al. 2017) belong to genera Steinernema and Heterorhabditis are obligatory pathogens in nature and are distinguished by their connection with mutualistic bacteria of the genera Xenorhabdus (Bhat et al. 2020). They have been discovered in a variety of biological environments, including farmed fields, woodlands, grasslands, deserts and ocean beaches (Hominick et al. 1996). They release mutualistic bacteria carried in their intestine and survive in the soil (Morris et al. 2020). They complete 2–3 generations within the host and have ability to seek their host actively (Campbell and Lewis 2002). The infective juveniles release their symbiotic bacteria which infect the host and then kill it within 48 h (Gulcu et al. 2017). The large number of nematodes release, invade the pest population and obtain pest suppression (Gaugler 2018). They have potential to control economically important pests of insect orders: Coleoptera, Diptera, Lepidoptera, Hemiptera and Orthoptera (Hatting et al. 2019). Most of EPNs species have a wide range of hosts, but the susceptibility of pest depending on the EPNs species (Labaude and Griffin 2018). They are distributed all over the world with different habitation and growing as biological control agents against insect pest (Cranshaw and Zimmerman 2013).

Keeping in view the above constraints, the present study was conducted to determine the biocontrol potential of four species of EPNs against the adult and larval stages of the Khapra beetle, T. granarium under laboratory conditions.

Methods

Collection of Trogoderma granarium

Fresh cultures of adult and larval stages of T. granarium were obtained from Pakistan Agriculture Research Council, University of Karachi, Pakistan. Wheat seeds (500 gm) were used as rearing medium in the 1000 ml glass jar covered with muslin cloths. Jars were kept in a rearing chamber 28 ± 2 °C and 65 ± 5 relative humidity in the rearing laboratory of NNRC, University of Karachi, Karachi, Pakistan.

Stock culture of entomopathogenic nematodes

The EPNs used in this study were isolated from soil samples collected from different plantation sites of Pakistan Council of Scientific and Industrial Research Laboratories Complex, Karachi, Pakistan. Four species of EPNs: Steinernema pakistanense PCSIR-10 (Shahina et al. 2001), S. bifurcatum PCSIR-39 (Shahina et al. 2014), S. saimkayai PCSIR-6 (Stock et al. 1998) and S. abbasi PCSIR-17 (Elawad et al. 1997), were maintained in the laboratory and identified byNNRC, University of Karachi, Pakistan. All the nematodes species were produced on Galleria mellonella L larvae of the greater wax moth at 28 ± 2 °C as described by the Duky et al. (1964). Insects killed by nematodes turned grayish. The infective juveniles were harvested by the white trap (White 1927), collected and stored in 50 ml beaker having distilled water at 10 °C for two weeks for their applications in the experiments.

Bioassay experiment

Batches of 20 larvae and adults were kept in a sterilized glass Petri dish (9-cm) bottomed with moistened filter paper (Whatman No. 1) separately. Four species of nematodes were applied at the concentrations 50, 150, and 250 IJs/ml with few drops of 2% Tween 80 as an emulsifier and wrapped with Parafilm incubated at 25 °C. Mortality rate was analyzed after 48 h, and control treatment had 1 ml of aqueous solution with few drops of 2% Tween 80 without nematodes. The entire experiments were repeated 3 times with five replications. The cause of mortality was confirmed by emergence of IJs from dead cadaver of larvae and adult beetle (Figs. 1, 2).

Fig. 1
figure 1

Trogoderma granarium larva infected with entomopathogenic nematodes after treatment (40× magnifications)

Fig. 2
figure 2

Trogoderma granarium adult infected with entomopathogenic nematodes after treatment (40× magnifications)

Data analysis

Data were subjected to analysis of variance (ANOVA) in SAS (ver.9.1, SAS Institute, Cary, NC). Abbott (1925) formula was used to correct mortality percentages. Mortality means were separated with DMRT Duncan’s multiple range test (Duncan 1955).

Results

Bioassay experiment on T. granarium larvae

All the four EPNs biocontrol potential significantly affected corrected mortalities against larval stage of Khapra beetle T. granarium (ANOVA F = 49.012, df = 3, P < 0.001) with three concentrations (ANOVA F = 7.247, df = 2, P = 0.001). At 250 IJs/ml S. pakistanense PCSIR-10 gave the 100% mortality rate, while the S. bifurcatum PCSIR-39, S. saimkayai PCSIR-6 and S. abbasi PCSIR-17showed 95, 90 and 75% mortality rates, respectively (Fig. 3). They were the highest mortality effect among other concentrations of EPN species. At 150 IJs/ml S. pakistanense, mortality rates were as follows: PCSIR-10 (90%), S. bifurcatum PCSIR-39 (82%), S. saimkayai PCSIR-6 (66%) and S. abbasi PCSIR-17 (58%) at the same concentration (Fig. 3). The mortality of targeted pest reduced by two nematodes species S. saimkayai PCSIR-6 and S. abbasi PCSIR-17, while mortality increased by S. pakistanense PCSIR-10, which caused the highest mortality ratio (100%) at 250 IJs/ml. At the 50 IJs concentration, S. pakistanense PCSIR-10 showed (72%), whereas S. bifurcatum PCSIR-39, S. saimkayai PCSIR-6 and S. abbasi PCSIR-17 showed 48, 68 and 34%, respectively.

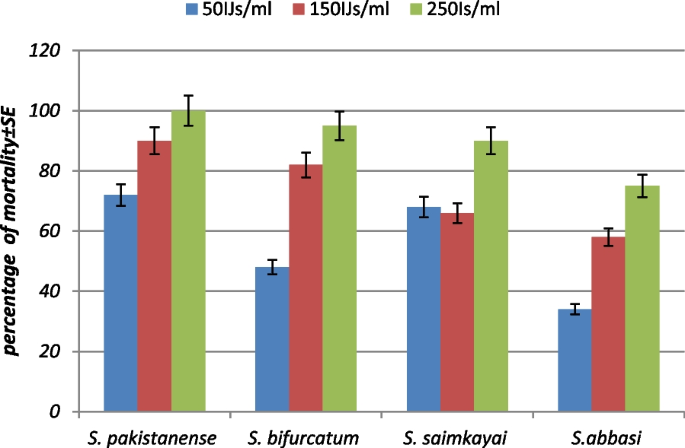

Fig. 3
figure 3

Trogoderma granarium larval mortality treated with four different species of Entomopathogenic nematodes in Petridishes depending on their concentrations

Bioassay experiment on T. granarium adult beetles

Corrected mortality rates of T. granarium adults significantly varied by concentrations (ANOVA F = 9.2567, df = 2, P = 0.001) and nematode species (ANOVA F = 51.452, df = 3, P < 0.001) as in larval stage after 48 h. The highest mortality ratio was observed in S. pakistanense PCSIR-10 (92%), while S. bifurcatum PCSIR-39, S. saimkayai PCSIR-6 and S. abbasi PCSIR-17 showed 89, 80 and 78% mortality rates at the same concentration of nematodes, respectively. The mortality rate of S. pakistanense PCSIR-10 (72%), S. bifurcatum PCSIR-39 (68%), S. saimkayai PCSIR-6 (58%) and S. abbasi PCSIR-17 (52%) was at 150 IJs/ml (Fig. 4). The lowest mortality rate was observed (30%) in S. abbasi PCSIR-17 at 50 IJs/ml, while it was 38% in S. saimkayai PCSIR-6, 40% in S. bifurcatum PCSIR-39 and 45% in S. pakistanense PCSIR-10.

Fig. 4
figure 4

Trogoderma granarium adult mortality treated with four different species of Entomopathogenic nematodes in Petridishes depending on their concentrations

The results revealed that all the four species of EPNs had the potential to kill the T. granarium at adults and larvae with the increase in concentration of EPNs and with increase in time.

Discussion

The EPNs provide the evidence that they can be used as a biological control agent against the stored grains pest (Lacy and Georgis 2012). The present study conducted to evaluate the efficacy of four EPNs species S. pakistanense PCSIR-10, S. bifurcatumPCSIR-1139, S. saimkayai PCSIR-6 and S. abbasi PCSIR-17 used highly effective against the adult and larval stages of T. granarium. The result revealed that the efficacy of the four EPNs species at high concentrations. Salma et al. (2020) studies on four species of EPNs S. pakistanense (LM-07) and S. bifurcatum (LM-30) were the most virulence at 150 IJs/beetle at 30 °C, while S. affinae and S. cholashanense (GB-22) at the same concentration at 20 °C give the maximum mortality rate of T. confusium and R. dominica adult beetles. Mortality rate of targeted insects varied by time, EPN species and their concentration were positively correlated with nematodes concentration and time (Caglayan et al. 2021). Karanastasi et al. (2020) observed that the efficacy of S. feltiae, S. carpocapsae and H. bacteriophora that killed the large larvae of T. granarium was 87.8, 63.3 and 60%, respectively, on stored wheat treated with the EPNs concentration of 50,000 IJs/ml after 8 days of exposure at 30 °C under laboratory conditions. The research studies on the efficacy of T. granarium are limited; many studies have been carried out to determine the virulence of EPNs against stored grain pest (Ramos-Rodríguez et al. 2006).Ali et al. (2011) studied the efficacy of S. masoodi Ali, Shaheen, Pervez and Hussain (Rhabditida: Steinernematidae) showed 100% mortality of T. granarium larvae on filter paper at the concentration of 500 IJs/individual after 2 days. Shahina and Salma (2010) reported the increased susceptibility of rice weevil Sitophilus oryzae adults to six Pakistani EPNs strains. Karanastasi et al. (2020) reported that complete mortality of small T. granarium larvae and 88% of largelarvae. This result co-relates along with the present study that S. pakistanense PCSIR-10 and S. bifurcatum PCSIR-39 gave 100 and 92% mortality rates, respectively, at the concentration of 250 IJs/ml after 48 h of treatment. Qader et al. (2021) reported that the highest mortality rate was recorded in H. bacteriophora of all concentration 500, 1000, 2000 and 3000 IJs/ml. Mortality was recorded between 24 and 72 h against the larvae of T. granarium. It was also observed that the efficacy of S. riobrav and H. bacteriophora showed the highest mortality of 16.67% at 2000 IJs/ml after 72 h of post-treatment of C. maculates and T. granarium. The result of the study provides the use of EPNs for controlling T. granarium larvae and adults in the future.

Conclusion

The present study was carried out to evaluate the virulence of four EPNs species against the T. granarium adult and larval stages under laboratory condition. Four species of EPN provided appropriate control of T. granarium. The utilization of EPNs against the stored grains insect provides at strong control at laboratory conditions, but in future more experiment will be required. All the four species of EPNs may be alternative to reduce the use of chemical pesticides in the pest management.

Availability of data and materials

Not applicable.

Abbreviations

EPNs:

Entomopathogenic nematodes

IJs:

Infective juveniles

PCSIR:

Pakistan Council of Scientific and Industrial Research

References

  • Abbott WS (1925) A method of computing the effectiveness of an insecticide. J Econ Entomol 8(2):265–267

    Article  Google Scholar

  • Ali SS, Arif M, Srivastava SP, Shankar P (2011) First report on susceptibility of Khapra beetle (Trogodermagranarium) against Steinernemamasoodi and its vivi production. Trend Bio Sci 4:140–141

    Google Scholar

  • Athanassiou CG, Phillips TW, Walil W (2019) Biology and control of the Khapra beetle, Trogodermagranarium, a major quarantine threat to global food security. Annu Rev Entomol 64:131–148

    Article  CAS  PubMed  Google Scholar

  • Bhat AH, Chaubey AK, Askary TH (2020) Global distribution of entomopathogenic nematodes Steinernema and Heterorhabditis. Egypt J Biol Pest Control 30:30–31

    Article  Google Scholar

  • Caglayan A, Atay T, Kepeneki L (2021) Efficacy of native entomopathogenic nematodes against the alfaalfa weevil, Hyperapostica (Gyllenhal) (Coleoptera: Curculionidae) and the Lucerne beetle, Gonioctena fornicate (Bruggemann) (Coleoptera: Chrysomelidae) adults under laboratory condition. Egypt J Biol Pest Control 31:89

    Article  Google Scholar

  • Campbell JF, Lewis EE (2002) Entomopathogenic Nematode host search strategies. In: Lewis EE, Campbell JF, Sukhdeo MVK (eds) The behavioral ecology of parasites. CABI Publishing, Wallingford, pp 13–38

    Chapter  Google Scholar

  • Cranshaw WS, Zimmerman R (2013) Insect parasitic nematodes. Fact Sheet No.5.573. Colorado State University Extension. http://extensioncolostate.edu/docs/pubs/insect/05573

  • Duncan DB (1955) Multiple ranges and multiple F-tests. Biometrics 1:1–14

    Article  Google Scholar

  • Duky SR, Thompson JV, Cantwell GE (1964) A technique for the mass production of the DD-136nematode. J Insect Pathol 6:417–422

    Google Scholar

  • Elawad AS, Ahmad W, Reid AP (1997) Steinernema abbasis p.n. (Nematoda:Steinernematidae) from the Sultanate of Oman. Fundam Appl Nematol 20:435–444

    Google Scholar

  • Gaugler R (2018) EPNs. In: Biological control. CRC Press, Boca Raton

  • Gulcu B, Cimen H, Raja RK, Hazir S (2017) Entomopathogenic nematodes and their mulualistic bacteria: their ecology and application as microbial agent. Bio Pestic Int 3:79–112

    Google Scholar

  • Hatting JL, Moore SD, Malan AP (2019) Microbial control of phytophagous invertebrate pests in South Africa: current status and future prospects. J Invert Pathol 1:54–66

    Article  Google Scholar

  • Hominick WM, Reid AP, Bohan DA, Briscoe BR (1996) Entomopathogenic nematodes: biodiversity, geographical distribution and the convention on biological diversity. Biocontrol Sci Technol 6:317–332. https://doi.org/10.1080/0958315963130710.1080/09583159631307

    Article  Google Scholar

  • Honey SF, Bajwa B, Mazhar MS, Wakil W (2017) Trogoderma granarium (Everts)(Coleoptera: Dermestidae) an alarming threat of rice supply chain in Pakistan. Int J Entomol Res 5:23–31

    Google Scholar

  • Kanzaki N, Kiontke K, Tanaka R, Hirooka Y, Schwarz A, Müller-Reichert T, Pires-daSilva A (2017) Description of two three-gendered nematode species in the new genus Auanema (Rhabditina) that are models for reproductive mode evolution. Sci Rep 7(1):11135

    Article  PubMed  PubMed Central  Google Scholar

  • Karanastasi E, Kavallieratos NG, Boukouvala MC, Christodovlopoulou AD, Papadopoulou AA (2020) Effect of three entomopathogenic nematodes species to Trogoderma granarium Everts(Coleoptera: Dermestidae) larvae on stored wheat. J Stored Prod Res 88:101641

    Article  Google Scholar

  • Labaude S, Griffin CT (2018) Transmission success of entomopathogenic nematodes used in pest control. InSects 9:72

    Article  PubMed  PubMed Central  Google Scholar

  • Lacy LA, Georgis R (2012) EPNs for the control of insect pest above and below ground with comments on commercial production. J Nematol 44:218–225

    Google Scholar

  • Lowe S, Browne M, Boudjelas S, DePoorter M (2000) 100 of the World’s Worst Invasive Alien Species A selection from the Global Invasive Species Database. Published by The Invasive Species Specialist Group (ISSG) a specialist group of the Species Survival Commission (SSC) of the World Conservation Union

  • Morris C, Malan AP, De Waal JY, Johnson S (2020) Laboratory bioassays on the susceptibility of trimen’s false tiger moth. Agomatrimenii (Lepidoptere: Agaristidae) to entomopathogenic nematodes and fungi. S Afr Enol Vitic 41(2):183–188

    Google Scholar

  • Qader F, Mohammed B, Husham A (2021) Efficacy of entomopathogenic nematodes against three species of stored product insects. IOP Conf Ser Earth Environ Sci 910:012047. https://doi.org/10.1088/1755-1315/910/1/012047

    Article  Google Scholar

  • Quarcoo F, Bonsi C, Tackie N (2014) Pesticides, the environment, and human health. In: Agricultural and biological sciences: “pesticides—toxic aspects”, vol 20. In Tech Europe, Rijeka, pp 81–103

  • Ramos-Rodríguez O, Campbell JF, Ramaswamy SB (2006) Pathogenicity of three species of the entomopathogenic nematode to some major stored products insect pest. J Stored Prod Res 42:241–252. https://doi.org/10.1016/j.jspr.2004.08.004

    Article  Google Scholar

  • Salma J, Tabassum KA, Samreen K (2020) Biocontrol potential of entomopathogenic nematodes species against Trifolium confusum (Jac.)(Coleoptera: Tenebrionidae) and Rhizopertha dominica (Fab.) (Coleoptera: Bostrichidae) under laboratory conditions. Egypt J Biol Pest Cont 32:91

    Google Scholar

  • Shahina F, Salma J (2010) Laboratory evolution of seven Pakistani strains of entomopathogenic nematode against stored grain insect pest Sitophilus oryzae L. Pak J Nematol 28:295–305

    Google Scholar

  • Shahina F, Anis M, Reid AP, Janet R, Maqbool MA (2001) Steinernema pakistanense sp. N. (Rhabditida: Steinernematidae) from Pakistan. Int J Nematol 11:124–133

    Google Scholar

  • Shahina F, Xun Y, Lihong Q, Richou H, Mehreen G, Tabassum AK, Salma J (2014) A new entomopathogenic nematodes, Steinernema bifurcatum n. sp. (Rhabditida: Steinematidae) from Punjab. Pak Nematol 16:821–836

    Article  Google Scholar

  • Stock SP, Somsook V, Reid AP (1998) Steinernema saimkayai n. sp. (Rhabditida:Steinernematidae) an entomopathogenic nematode from Thailand. Systa Parasito 41:105–113

    Article  Google Scholar

  • Van Lentern JC, Bolck K, Kohl J, Ravensberg WJ, Urbaneja A (2018) Biological control using invertebrates and microorganisms: plenty of new opportunities. Bio Control 63:39–59

    Google Scholar

  • White GF (1927) A method for obtaining infective nematode larvae from culture. Science 66:302–303

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgements

Not applicable.

Funding

Not applicable.

Author information

Authors and Affiliations

Authors

Contributions

BN performed the experiment, BN and SJ designed and wrote the text, and SJ analyzed the data. Both authors read and approved the final manuscript.

Corresponding author

Correspondence to Bushra Nawab.

Ethics declarations

Ethics approval and contents to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Nawab, B., Javed, S. Biocontrol potential of entomopathogenic nematodes against the Khapra beetle Trogoderma granarium (Everts) (Coleoptera: Dermestidae). Egypt J Biol Pest Control 33, 56 (2023). https://doi.org/10.1186/s41938-023-00700-4

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s41938-023-00700-4
