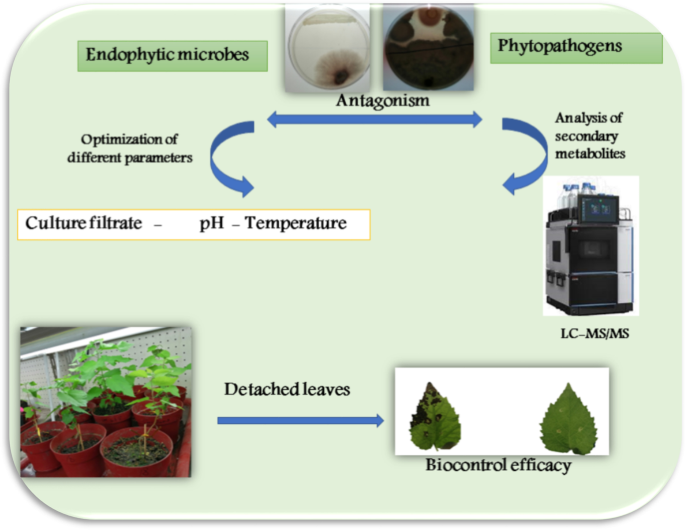

An overview of the work done in this study is depicted in Fig. 1.
Endophytic microbes
Five bacterial strains, namely Enterobacter tabaci 24RB (MN540932.1), Bacillus velezensis 33RB (MN559965.1), Bacillus megaterium 59SB (MN540915.1), Pantoea eucrina 85LB (MN541091.1), and Bacillus aryabhattai 88LB (MN540958.1), and six fungal strains, Lasiosphaeriaceae sp. 17 RF (MN541090.1), Chaetomium globosum 37 RF (MN541117.1), Aspergillus niger 46SF (MN540962.1), Peyronellaea sp. 48SF (MN540968.1), Talaromyces amestolkiae 52SF (MN540956.1), and Alternaria sp. 63LF (MN541096.1), were isolated from different parts (roots, stems, and leaves) of Populus tomentosa (Sehim and Dawwam 2022).
Phytopathogens
Fusarium oxysporum 20RF, F. solani 15RF, C. gloeosporioides BJ02, and C. fructicola were used as the representative phytopathogens. The Colletotrichum isolates were kindly provided by the Laboratory of Genetics and Breeding in Forest Trees and Ornamental Plants at Beijing Forestry University, Beijing, China, while F. oxysporum 20RF and F. solani15RF were isolated from the roots of infected Populus tomentosa.
Isolation of Fusarium isolates
The infected root tissues of P. tomentosa were obtained from the greenhouse of Beijing Forestry University, Beijing, China (40° 0′ N, 116° 20′ E). Root parts were collected and rinsed under running tap water to remove the soil. Then, they were cut into 5–10 mm segments, surface sterilized using 1% sodium hypochlorite solution for 1–2 min, rinsed thrice using sterile distilled water, and dried on a sterile filter paper. The sterilized tissue segments were placed on potato dextrose agar (PDA) plates supplemented with 50 mg/l streptomycin sulfate. The plates were incubated at 28 °C for 5 days for fungal mycelial growth. Mycelial disks were excised from the growing point, subcultured on PDA slants, incubated at 28 °C for 5 days, and stored at 4 °C until further use (Yamauchi et al. 2004).
Molecular identification
The fungal DNA was extracted using the EZgene™ Fungal DNA Miniprep kit, according to the manufacturer’s instructions. The fungal ITS region was amplified using forward ITS1 (5′-TCCGTAGGTGAACCTGCGG-3′) and reverse ITS4 (5′-TCCTCCGCTTATTGATATGC-3′) primers (White et al. 1990). The PCR cycle included preheating for 5 min at 94 °C, followed by 35 cycles of 1 min at 94 °C, annealing at 55 °C for 40 s, extension at 72 °C for 1 min, and a final extension of 72 °C for 10 min. The size of the PCR products was checked using 1% agarose gel and sequenced on the ABI3730XL DNA Analyzer at the Beijing Ruibio Biotech, Co., Ltd.
In vitro assessment of endophytic microbes against several fungal phytopathogens
An antagonistic test to study the effect of endophytic bacterial and fungal isolates against several growth-inhibiting fungal pathogens was performed. The biocontrol strains were tested preliminarily using the dual culture method (Huang et al. 2015). The endophytic bacteria and fungi were placed at one end of the PDA plate (d = 90 mm), while the pathogenic fungi were placed on the other end, approximately 3 cm away. The plates were cultured at 28 °C for seven days. The control plates were inoculated only with the pathogens. Each treatment was performed in triplicate. The pathogens and control colony diameters were measured after incubation (Boukaew and Prasertsan 2014). The inhibition rate was determined using the formula below:
$${\text{Inhibition}}\;{\text{growth}}\;{\text{radial}}\;\left( {\text{\% }} \right) = \frac{{{\text{Radial}}\;{\text{growth}}\;{\text{of}}\;{\text{control}} - {\text{Radial}}\;{\text{growth}}\;{\text{of}}\;{\text{treatment}}}}{{{\text{Radial}}\;{\text{growth}}\;{\text{of}}\;{\text{control}}}} \times 100.$$
B. velezensis 33RB and A. niger 46SF against C. gloeosporioides and F. oxysporum were selected for further experiments as they displayed the highest growth inhibitory activity.
Optimizing cultural filtrate
Cultural filtrate method according to the method described by Dennis and Webster (1971) was performed. The bacterial and fungal isolates were inoculated separately for 48 h and 14 days, respectively, in liquid PD medium at 28 °C and 120 rpm. After incubation, the fermentation broth was centrifuged at 10,000 rpm at room temperature for 2 min to remove the remaining bacterial cells and mycelial fragments from the supernatant. The supernatant was transferred into fresh tubes and then filtered twice using sterilized filter paper, followed by 0.45 µm pore membrane filters. Four volumes (50, 25, 12.5, and 6.25 ml) of bacterial and fungal supernatants were mixed thoroughly with molten PDA medium to reach a final concentration of 100% (v/v). The filtrates were poured into Petri plates, and after solidification, a 5-mm disk of test pathogens was placed at the center of the plates. All the treatments were conducted in triplicates and incubated at 28 °C for seven days. The growth inhibition percentage was measured using the equation mentioned above.
Effect of cultural filtrate pH on the growth inhibition
The selected endophytic bacterial and fungal isolates were separately grown on PDA and distributed into media adjusted to five different pH values (3, 5, 7, 9, and 11). Sterilized cultural filtrate (12.5 ml) was added to an appropriate amount of molten PDA till a final concentration of 100% (v/v). After pouring into Petri dishes, it was inoculated with 5-mm mycelial disks containing a 5-day-old colony of test pathogens. After incubation at 28 °C for seven days, the colony diameter of the test pathogens was measured to assess the growth inhibition rate compared to control. This test was done in triplicate.
Effect of cultural filtrate temperature on the growth inhibition
To investigate the effect of temperature on fungal growth, the sterilized cultural filtrate was exposed to 4, 28, 37, 60, 80, and 100 °C for 30 min. After cooling the samples at room temperature, they were tested using the same procedure as the pH test. The formula for relative inhibition rate was described above.
Evaluation of biocontrol efficiency using detached leaves
To evaluate the biocontrol efficacy of bacterial and fungal isolates, sterilized leaves of P. tomentosa without any apparent disease symptoms were added into Petri dishes containing a wet filter paper. The petioles of the leaves were wrapped with sterilized pledges and soaked in sterile distilled water for 5 s. These leaves were inoculated with 10 μl of spore suspension with the different test pathogens (1 × 106 spore/ml). After 24 h, all the punctured locations on the leaves were injected with the same volume of biocontrol bacterial and fungal isolates. The positive control was treated with the pathogen only. The leaves were kept at 25 °C in the dark. After 14 days, the lesion diameters were observed and compared.
Identification of antimicrobial secondary metabolites using liquid chromatography–mass spectroscopy (LC–MS spectroscopy)
Metabolites preparation and extraction
The metabolites were extracted with partitioning with ethyl acetate according to the instructions by Novogene, Beijing, China. Then, the bacterial and fungal supernatants (100 μl) were combined with 400 μl of 80% methanol and 0.1% formic acid and vortexed. After centrifuging at 15,000 g, the samples were incubated at 4 °C for 5 min on ice. Then, some of the supernatants were diluted to a final concentration with 53% methanol using LC–MS grade water. The samples were subsequently transferred to fresh Eppendorf tubes and centrifuged at 15,000 g at 4 °C for 10 min. Finally, the supernatant was injected into the LC–MS/MS system for analysis.
UHPLC–MS/MS analysis
LC–MS/MS analyses were conducted using a Vanquish UHPLC system (Thermo Fisher), Beijing, China, coupled with an Orbitrap Q Exactive series mass spectrometer (Thermo Fisher). The samples were injected onto a Hyperil Gold column (100 × 2.1 mm, 1.9 μm) using a 16-min linear gradient at a flow rate of 0.2 ml/min. The eluents for the positive polarity mode were eluent A (0.1% formic acid in water) and eluent B (methanol). The eluents for the negative polarity mode were eluent A (5 mM ammonium acetate, pH 9) and eluent B (methanol). The solvent gradient was set as follows: 2% B, 1.5 min; 2–100% B, 12 min; 100% B, 14 min; 100–2% B, 14.1 min; 2% B, 17 min. The Q Exactive series mass spectrometer was operated in positive/negative polarity mode with a spray voltage of 3.2 kV, capillary temperature of 320 °C, sheath gas flow rate of 35 arb, and aux gas flow rate of 10 arb. KEGG database (http://www.genome.jp/kegg/) and LIPID MAPS database (http://www.lipidmaps.org/) were used to annotate the metabolites.
Data analysis
The data were statistically analyzed using R software (version 3.6.1) (Team 2016).
