Effect of entomopathogenic fungi against banana pseudostem weevil Odoiporus longicollis (Olivier) and elucidation of infection process

Abstract

Background

The banana stem weevil, Odoiporus longicollis (Olivier), is a serious threat to banana cultivation world over. Since banana is a food crop, the use of naturally infecting biological control agents could be an effective alternative to manage the insect pest instead of harmful chemicals. Also, the efficacy of entomopathogenic fungi against O. longicollis was used in bioassay.

Results

Among the Beauveria bassiana isolates tested the median lethal concentration (LC₅₀) 10.468 × 10⁵ conidia ml⁻¹ when treated with B. bassiana (NRCBEFPMP1), two other isolates of B. bassiana, namely NRCBEPF22 and NRCBEPF2, were also effective against O. longicollis and recorded LC₅₀ of 12.617 × 10⁵ and 12.891 × 10⁵ conidia ml⁻¹, respectively. The results of bioassay with different Metarhizium spp. showed variations in efficacy, where the most virulent isolate was M. quizhouense (NRCBEPF11) with LC₅₀ 8.050 × 10⁵ conidia ml⁻¹. Scanning electron microscopic analysis showed that B. bassiana and M. quizhouense caused infection by cuticle penetration and completed the infection process in 15 days. The composition of volatile organic compounds released by B. bassiana and M. anisopliae during pathogenesis showed that a significantly high number of known insect volatiles were present in infected insects. Consequently, these volatiles were emission in Insect attractant, Odorant receptor agonist, Plant hormone Plant, and Microbial Metabolites, through the biological activity, such as Methyl salicylate, Benzaldehyde, alpha-Terpineol, Limonene, Benzene, 1,2-dimethoxy, Phthalic acid, 1-Octadecene, Phenylacetaldehyde, 3-Octanone, Octanal, Methylheptenone and 2-Ethyl-1-hexyl alcohol.

Conclusion

Overall, the results show that EPF could significantly reduce damage by O. longicollis and produce a wide profile of secondary metabolites. Further, analysis was used for principal components to determine whether separated classes of fungi can be distinguished from one another based on their metabolite profiles.

Background

Banana (Musa sp.) is the second most important fruit crop in India next to mango. Over nineteen species of insects have been reported to infest banana cultivars (Padmanaban et al. 2001). One important pest is the banana pseudostem borer, Odoiporus longicollis (Olivier) (Coleoptera: Curculionidae). Also known as banana stem weevil (BSW). It can cause substantial damage in terms of production and productivity of banana (David 2008). Recent reports suggest that O. longicollis is distributed over diverse geographical locations in India (Isahaque 1978) and serious crop loss due to BSW (Jayanthi and Varghese 1999).

In India, application of synthetic chemical insecticides is the most common option to control BSW (Thippaiah et al. 2011). Since banana is a food crop, safer control methods of BSW are needed. One important safe alternative is use of biological control for entomopathogenic fungi (EPF), as they can grow naturally in soils and are capable of infecting various insects (Sharmila and Mohan 2015). Researchers have tried to use Metarhizium anisopliae, and Beauveria bassiana and their related species to control O. longicollis (Velavan et al. 2021; Sripriya et al. 2000). In addition, foliar application of EPF formulation against BSW has also been attempted in the fields (Azam et al. 2010). Studies have also shown certain endophytic isolates of B. bassiana can be highly effective on O. longicollis, if allowed to colonize in early stages of crop (Alagesan et al. 2019). Padmanaban et al. (2019) could identify endophytic EPF within the Musa germplasm cultivars that induced natural protection against banana pests. While EPF are identified based on their morphological and molecular characteristics, species identification among Metarhizium spp. is difficult because of its structural simplicity and the lack of distinctive features (Velavan et al. 2021). Recently the diversity of Beauveria spp. occurring in India was studied through phylogenetic analysis (Kisaakye et al. 2021) and taxonomic status of Beauveria spp. occurring worldwide was attempted using both morphological and molecular methods (Rehner et al. 2011).

At National Research Centre on Banana in India, six EPF, namely B. bassiana, B. brongniartii, M. anisopliae, M. robertsii, M. quizhouense and M. pinghaense native isolates, have been tested against leaf and fruit scarring banana pest Basilepta subcostata. Thus, B. brongniartii, M. anisopliae and M. pinghaense strains were found effectively infecting B. subcostata (Viswakethu et al. 2021). Although a number of EPF have been evaluated to control insect pests of banana, very limited data is available on use of EPF against O. longicollis. The present study was undertaken to know the biological control ability of EPF strains, isolated from naturally infected pests of banana. Consequently, electron microscopy analyses of the infection process and identification of insect specific volatiles released during pathogenesis were also studied.

Methods

Entomopathogenic fungi

Twenty-seven native strains of EPF belonging to Beauveria bassiana, B. brongniartii, Metarhizium anisopliae M. robertsii, M. quizhouense and M. pinghaense were obtained from the culture collection of ICAR-National Research Centre on Banana (ICAR-NRCB), India. Naturally isolated at Odoiporus longicollis, Cosmopolites sordidus, Basilepta subcostata and Galleria mellonella identity was established by morphological and molecular studies (Table 1).

Table 1 Entomopathogenic fungi used in the study, their source and identity

Rearing of Odoiporus longicollis

Specimens of banana stem weevils were collected from banana-growing regions of Thanjavur, Tiruchirappalli, and Theni in Tamil Nadu during 2017–2018. The weevils were maintained at Entomology Laboratory, Division of Crop Protection ICAR-NRCB, Tiruchirappalli. Banana pseudostem pieces (4–8 cm) were kept in plastic containers (10 kg volume) and weevils were released into the containers for feeding, mating and oviposition (Padmanaban et al. 2001). Pseudostems were changed once in 15 days. After hatching, for further development, the first instar grubs (larvae) were transferred on to fresh pieces of pseudostem. Larvae were reared in various stages viz. egg, 1st, 2nd, 3rd larval instars and adults. After adult emergence, they were placed in jars and supplied with cotton wicks saturated with 8–10% honey. Adults were fed with banana leaf sheath at 28 ± 1 °C, 75 ± 5% RH.

Bioassay

The EPF cultures were grown on potato dextrose yeast agar (PDAY) medium for 10–15 days at 25 ± 0.5 °C. Mycelial mats containing spores were harvested in 100 ml sterile distilled water in tubes with continuous stirring. The harvested contents were filtered through a single layer of muslin cloth to remove debris and mycelia. Conidial concentration was estimated using a hemocytometer under a light microscope (Olympus model BX100). Subsequently conidial suspensions (1 × 10⁷, 1 × 10⁶, 1 × 10⁵, 1 × 10⁴, and 1 × 10³ conidia ml⁻¹) were prepared with 0.1% TritonX-100, 0.2% Tween 80 and 0.1% glycerol. Adults of stem weevils were transferred aseptically to fresh plastic boxes (10 cm diameter and 30 cm height). The conidial suspensions of EPF isolates were swabbed on leaf sheaths (8–10 cm length) individually. For comparison, two commercial isolates, namely M. anisopliae (M1, M2) and B. bassiana (BCRL, TARI) were included in the experiment. Five replications were maintained for each treatment and each replication had 15 test adults. Leaf sheaths treated with water containing 0.1% Triton X-100, 0.2% Tween 80 and 0.1% glycerol served as control. Mortality was recorded every day up to 15 days after inoculation. Infected insect cadavers were transferred to the wet chamber and the pathogenic fungus was re-isolated and confirmed based on culture characteristics and spore morphology.

Volatile organic compound detection from insect–fungus interaction

Virulent EPF isolates, namely Beauveria bassiana, B. brongniartii, Metarhizium anisopliae, M. robertsii, M. quizhouense and M. pinghaense, were selected to identify secretion of volatile organic compounds (VOC) or organic compound emission of secondary metabolites during insect–fungus interaction. Infected dead insects were carefully returned to individual flasks and maintained without feeding under rearing conditions as previously described (Crespo et al. 2006). VOC were sampled from adults previously treated with either 1 × 10⁸ conidia ml⁻¹ or sterile distilled water containing 0.01% Tween-80 (controls). For each condition, one adult of known sex was gently placed in a 20-ml glass vial sealed with a Teflon cover having a rubber septum. The vial was vortexed for 10 s to elicit the release of volatiles; the released volatiles were immediately sampled from the headspace corresponding to the gaseous phase in contact with the insect sample (Arthur and Pawliszyn 1990). Three independent replicates (each replicate from a different individual) were performed for each condition (fungus-treated and untreated males and females). A vial containing no insect was used as controls. Volatile collections from EPF uninfected and infected adults were performed with a (polydimethylsiloxane PDMS) fiber with a 50-μm film thickness (Supelco, Inc., Bellefonte, PA, U.S.A.). The fiber had been previously conditioned according to the manufacturer’s instructions and was systematically reconditioned before each analysis.

Statistical analysis

The corrected mortality rate was calculated using the Abbotts formula. The lethal concentration LC₅₀ was analyzed by using Probit analysis software in SPSS® version 25. The concentration responses of each replicate were observed for estimation of median lethal concentration (LC₅₀) to kill 50% of exposed adults only. Principal components analysis (PCA), to illustrate the differences in the profiles of volatile compounds released during Insect–Fungal interaction, was also subjected to statistical analysis (Origin vs. OriginPro).

Results

Bioassay against Odoiporus longicollis

Twelve B. bassiana isolates that included two commercial (BCRL & TARI) and two B. brongniartii strains were tested against adults of O. longicollis. The adults of O. longicollis were susceptible to all the tested Beauveria spp. used in a concentration-dependent manner in five concentrations (1 × 10³, 1 × 10⁴, 1 × 10⁵, 1 × 10⁶, 1 × 10⁷ conidia ml⁻¹). High mortality was observed at low conidial concentrations that varied significantly (Table 2). It was observed that median lethal concentration (LC₅₀) value for weevils was 10.468 × 10⁵ conidia ml⁻¹ in B. bassiana (NRCBEFPMP1) indicating that this isolate was the most virulent (Table 1). Two other isolates, namely (NRCBEPF22 and NRCBEPF2), were also virulent and showed LC₅₀ of 12.617 × 10⁵ and 12.891 × 10⁵ conidia ml⁻¹ (Table 2). The highest concentration requirement was exhibited by the two commercial strains BCRL and TARI and they exhibited the same LC₅₀ value of 29.962 conidia ml⁻¹. The results established that B. bassiana strains (NRCBEFPMP1, NRCBEPF22 and NRCBEPF2) were virulent and had potential to be deployed in the field.

Table 2 Probit analysis of concentration-mortality response at 15 days post inoculation of Beauveria spp. against Odoiporus longicollis

Bioassay of 19 Metarhizium spp., to determine concentration dependent virulence against O. longicollis showed significant differences in mortality (Table 3). Probit analysis showed a variation in virulence among the different Metarhizium isolates. Based on LC₅₀ values the most virulent isolate was M. quizhouense (NRCBEPF11) that exhibited the ability to kill 50% of the tested adults with 8.050 × 10⁵ conidia ml⁻¹. Other virulent isolates were M. pinghaense (NRCBEPF7), M. robertsii (NRCBEPF23) and M. robertsii (NRCBEPF24) with median lethal concentration (LC₅₀) of 10.155, 10.497 and 12.443 × 10⁵ conidia ml⁻¹, respectively (Table 3). Hence, these isolates could be further tested in the field. The least virulent was M. anisopliae M1 (25.448 × 10⁵ conidia ml⁻¹). There was no evidence of mycosis in any control cadavers, whereas mycosis was confirmed on all dead O. longicollis treated with Beauveria or Metarhizium spp.

Table 3 Probit analysis of concentration-mortality response at 15 days post inoculation of Metarhizium spp. against Odoiporus longicollis

Scanning electron microscope (SEM) studies

SEM analysis was conducted by the model number TM3030 Plus (Hitachi) at Indian Institute of Horticultural Research, Bengaluru, India. SEM images of adults treated with strains of B. bassiana (NRCBEFPMP1) and M. quizhouense (NRCBEPF11) revealed that after adhesion of conidia onto the cuticle of O. longicollis, some of the conidia germinated and mycelia appeared after 10 days. The SEM studies revealed detailed information about the attachment and infection process of B. bassiana and M. quizhouense. In the sporulated cadavers, hyphae were detected in cuticle, inter-segments of legs, antenna and abdomen. Conidiogenesis was observed on the cuticle (Figs. 1 and 2). The images showed that the virulent EPF infected approximately 15 days to complete its infection process (Fig. 3).

Fig. 1

SEM image showing the process of Beauveria bassiana infection in Odoiporus longicollis. A, B Conidia adhered to the surface of adults insect (2 mm & 500 μm), C, D the cuticle surface of the insect of hyphae (scale par 50 μm), E, F large amount formed in mycelia of B. bassiana (scale par 20 μm & 20 μm)

Fig. 2

SEM image showing the process of Metarhizium quizhouense infection in Odoiporus longicollis. A, B Conidia adhered to the surface of adults insect (2 mm), C, D the cuticle surface of the insect of hyphae (scale par 50 µm & 30 µm), E, F large amount formed in mycelia of M. quizhouense (scale par 50 µm & 20 µm)

Fig. 3

Bioassays performed in entomopathogenic fungi native isolated were affected by mummification of insects after 15 days of infection; a, b Beauveria brongniartii, and Beauveria bassiana cadaver fully covered by bright white mycelia power; c Metarhizium robertsii; d Metarhizium quizhouense; e Metarhizium pinghaense; f Metarhizium anisopliae the conidia formatted and the insect cadaver green

Identification of volatile organic compounds during pathogenesis

The composition of volatile organic compounds (VOC) released during pathogenesis by virulent EPF was investigated. Gas chromatography mass spectrometry (GC–MS) analyses showed that a significantly higher number of known insect volatile compounds were present among fungus-treated insects, when compared to untreated control. Insect toxic compounds were detected only in the volatiles of the fungus-exposed insects. These toxic compounds were identified as: Dihydrothiophenone, Benzaldehyde, Phenylacetaldehyde, Methylheptenone, 3-Octanone, 1-Hexanol, 2-ethyl-, Methyl salicylate, alpha-Terpineol, N-(3-Butenyl)-N-methylcyclohexanamine, Benzene, 1,2-dimethoxy-4-(methoxymethoxy), N,N'-Ethylenedi-beta-alanine, Palmitic acid, Caryophyllene oxide, 1-Octadecene, Hexadecanoic acid, Cyclohexane, 1,1'-dodecylidenebis [4-methyl] and these compounds were mainly categorized as insect repellents, attractants, plant metabolite, antimicrobial or antioxidants..

The PCA plot is presented in Fig. 4. PCA was applied to reduce the redundant information in data and to group the correlated responses into principal components (Hammoudaa et al. 2017). Each of the first principal components explains a variance of 88.53%. The relative peak areas of all identified volatile compounds were selected for the calculation of the main components. A multivariate analysis showed clear class separation of Metarhizium quizhouense species (Table 4). Slight differences were observed in the metabolite profiles of B. bassiana, B. brongniartii, M. robertsii, M. pinghaense and M. anisopliae.

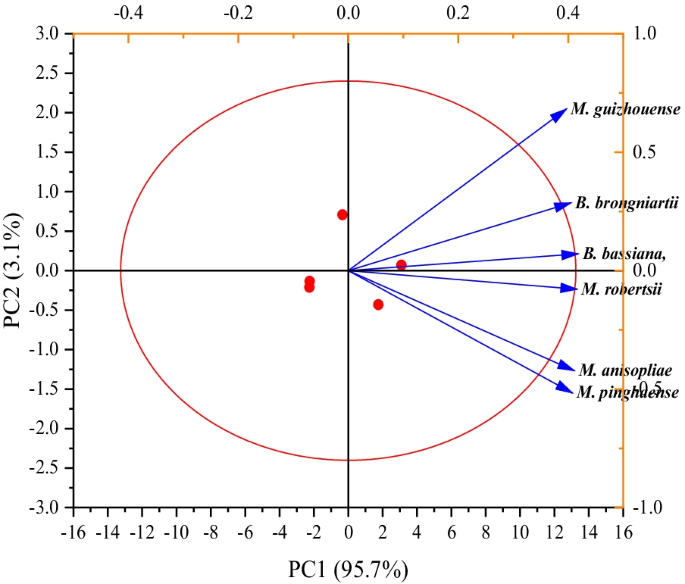

Fig. 4

Principal component analysis (PCA) obtained from the profiles of volatile compounds released by entomopathogenic fungi

Table 4 Percentage rate of total variability explained by principal components obtained in the PCA analysis

Discussion

In the present study, 27 native strains of EPF belonging to B. bassiana, B. brongniartii, M. anisopliae, M. robertsii, M. quizhouense and M. pinghaense (Table 1) against adults of banana stem weevil O. longicollis were tested under laboratory conditions. Among the tested organisms, M. quizhouense (NRCBPF11) was observed to be the most virulent needing 8.050 × 10⁵ conidia/ml to kill 50% of the beetles. However, isolates such as M. pinghaense, M. robertsii, B. brongniartii and B. bassiana were also found to be virulent (LC₅₀ of 10.468 to 12.617 × 10⁵conidia ml⁻¹).

Bioassay studies showed that the dead adults were wholly covered by white or green conidia of the tested virulent fungi (Fig. 2). Fungal germination was also observed on dead insect, while the insect’s color became white with spongy mycelia of dark green or yellowish-green. The strategy of the present study was to see if adults get infected through treated leaf sheath and the results establish this fact. Systemic fungicides worked well in controlling the larval stages of O. longicollis as they feed on the inside of the leaf sheath. Adults were found feeding on fallen leaves and spraying these leaves helped infecting them. Studies showed that M. anisopliae and B. bassiana) were found to be infective at 1 × 10⁸ conidia ml⁻¹ against adults O. longicollis (Alagesan et al. 2019). In other studies, a high mortality was obtained with “beauvericide” B. bassiana-based formulation when used @ 1 × 10⁷ spores ml⁻¹ (Awasthi et al. 2017). Formulations of B. bassiana and M. anisopliae exhibited LC₅₀ value of 1.25 × 10⁶ conidia ml⁻¹ against O. longicollis at 15 days (Sharmila and Mohan 2015). The present studies showed that Metarhizium spp. needed less conidia to cause 50% mortality. Similar results were obtained against other banana pests like Cosmopolites sordidus (stem borer) with conidial suspension (1.1 × 10⁷ conidia ml⁻¹) of B. bassiana (Lopes et al. 2011). Reports also suggested that with a high conidial concentration, a high mortality can be obtained (Akello et al. 2007). Further studies are needed to evaluate the virulent EPF so as to verify whether the mechanism observed in vitro occurs also in vivo.

Lozano-Soria et al. (2020) reported that in infected banana black weevil (BW), Cosmopolites sordidus and EPF can secrete (styrene, benzothiazole, camphor, borneol, 1,3-dimethoxy-benzene, 1-octen-3-ol and 3-cyclohepten-1-on, Alcohol (3-Octanone), and Phthalic acid) volatile compounds that can behave as attractants and repellents. This was also found in EPF infected banana fruit scarring beetle Basilepta subcostata Jac (Padamnaban et al. 2019). In another study Kavitha et al. (2020) could show that steroid in Stigmasterol-3-O-Glucoside was toxic to O. longicollis. Through, volatile was investigate in secondary metabolites, such as (Z)-9-octadecenamide, (Z,Z)-9,12-octadecadienoic acid (linoleic acid), (Z,Z,Z)-9,12,15-ocatadecadienoic acid (linolenic acid) and n-hexadecanoic acid (palmitic acid) for the identified and other invertebrates were evaluated as attractants or repellents (Rivero-Borja et al. 2018). VOCs mediate interactions between micro-organisms such as fungal insects that have been correlated with their pathogenic activity (Hummadi et al. 2021). Overall, EPF was emitted through the Volatile organic compounds (VOCs) can be used in chemotaxonomic profiling such as antifungal activity, phytotoxicity, symbiotic regulation, insect attractant, and repellent activities also other environmental parameters (Lobo et al. 2018).

In the present study, a total of 50 volatile compounds were identified from EPF infected banana stem weevil with major constituents having methyl group, methyl ester, aromatic aldehyde, carbon atoms, carboxyl groups, and alcohol. These compounds may alter the behavior of O. longicollis and hence some of the identified chemicals could interrupt and modify its behavior and in general its search ability for the host (banana) and could be served as a tool for management of O. longicollis. Recently researchers have reported the attraction of O. longicollis towards “male aggregation pheromone” such as “2-methyl-4-heptanol” but it was less effective but when it was used in combination with pseudostem extract it resulted in significant attraction (Palanichamy et al. 2019).

As the adults were targeted in this study, the infection process through SEM was targeted. During, infection process by both B. bassiana and M. anisopliae was typical with adhesion of conidia on surface, germination, penetration of the host cuticle and completion of life cycle by mycelial growth and sporulation on surface (Aw and Hue, 2017). Hydrophobins and cuticles were degrading enzymes such as chitinases, proteases and lipases are produced by EPF which help in penetration (Aw and Hue, 2017). The host was killed by the pathogen growth and release of fungal toxins in 15 days.

Conclusion

Biological control agents such as EPF could be used for management of banana pseudostem weevil. In the present study virulent isolates belonging to Metarhizium sp., and Beauveria sp., were identified as promising alternatives to chemical control. SEM studies showed that the infection process was completed in 15 days. The study had also identified volatiles produced during pathogenesis of virulent Beauveria sp. and Metarhizium sp. The development of possible new bio-control agents against the invasive banana pest is now possible with a better understanding of the potential use of indigenous EPF.
