Endophytic ability of indigenous Bacillus thuringiensis strain VKK-BB2: new horizons for the development of novel insect pest-resistant crops

Abstract

Background

Brinjal shoot and fruit borer (BSFB), Leucinodes orbonalis Guenee is the key pest of brinjal that causes a significant yield loss. Farmers spray wide range of insecticides right from vegetative stage till last harvesting stage to protect the crop from the notorious BSFB, which leads to pesticide residue and insecticide resistance problems. To overcome this, now focus has shifted to bio pesticides but their commercial application is limited due to their susceptibility to abiotic factors. To overcome these bottlenecks, a hidden ecological role played by entomopathogenic bacteria as endophytes was sought. The control of pests by establishment of potential entomopathogenic bacteria as an endophyte is an alternative method of pest management that may contribute to reduce or eliminate the use of pesticides.

Results

Present study describes the colonization of green fluorescent protein (GFP)-tagged potential native Bacillus thuringiensis strain VKK-BB2 (BtVKK-BB2) in brinjal plants. Seeds and seedlings of brinjal were inoculated with gfp-tagged BtVKK-BB2 cells through seed treatment, soil drenching and foliar spray. After inoculation gfp-tagged bacterium could be re-isolated from all parts of the plant. Presence of bacteria within the leaves was confirmed by amplification of gfp and cry gene in the re-isolated Bt colonies from brinjal leaves and shoot. Leaves taken from the BtVKK-BB2 colonized plants were able to cause mortality when fed to neonates of Leucinodes orbonalis.

Conclusions

Establishment of native Bt strain as endophytes in plants, accompanied by the production of Cry proteins opens new horizons for the development of a novel pest-resistant crops which could be an alternative to Bt transgenic crops. However, inoculation of Bt through seed and foliar spray has to be further explored against larval herbivores especially internal borers to enhance its biocontrol potential through endophytic mediation which may open a novel set of strategies to control the insect pests in a sustainable way.

Graphical Abstract

Background

Brinjal (Solanum melongena L.), also known as eggplant, is an important vegetable crop grown in India and many other parts of the world. It is tasty and nutritious vegetable rich in minerals (Choudhary and Gaur 2009). India is the second leading producer of brinjal crop in the world after China (FAO 2012). Brinjal has a wide spectrum of insect pests (Srinivasan 2009). The brinjal shoot and fruit borer (BSFB), Leucinodes orbonalis (Guenée) (Lepidoptera: Crambidae), is the key pest that causes a significant yield loss to the tune of 70% (Singh and Nath 2010). The infestation starts from the seedling stage till the final harvest, within few hours of the egg hatching, BSFB larvae bore into and feed on the tender shoots and the fruits of the brinjal plant. It is well known that farmers spray wide range of insecticides right from vegetative stage till last harvesting stage to protect the crop from the notorious BSFB, which leads to pesticide residue and insecticide resistance problems. Recently, a slow shift has been observed toward green chemicals including microbial-based products as the legal restrictions are imposed on synthetic chemicals and increased awareness among the consumers on food safety issues. Among the biopesticides, Bacillus thuringiensis (Bt) usage are in growing demand in recent years on vegetables and other high value crops where high level of safety and selectivity are desirable and resistance to synthetic insecticides is a problem (Elsayed et al. 2014). But their commercial application is limited due to their susceptibility to abiotic factors viz., temperature, humidity and UV rays. To overcome these bottlenecks, a hidden ecological role played by entomopathogenic bacteria as endophytes was sought. As the endophytes symbiotically live inside the plants thus gets protection against abiotic stresses and UV rays furthermore play a defensive role against insect pests. Endophyte-related research is promising but still in its budding stage. Only few studies demonstrated this novel approach of pest management (Praca et al. 2012).

Recently, green fluorescent protein (GFP) has been widely used as a reporter for the in-situ detection and localization of bacterial cells in plants (Zhang et al. 2011) by using confocal laser scanning microscopy (CLSM) or fluorescence microscopy. Colonization of Bt as endophytes in plants, accompanied by the production of Cry proteins, opens new horizons for the development of novel pest-resistant crops. Therefore, colonization of Bt as endophyte in the plant is one of the possible approaches to combat the internal borer such as L. orbonalis. Hitherto no detailed studies are available on colonization of Bt on brinjal plant. Hence, the present study was conducted on the colonization of potential native BtVKK-BB2 strain as endophyte and it’s validation against BSFB in the brinjal plant.

Methods

Bacterial strain and plasmid culture conditions

Native B. thuringiensis strain VKK-BB2 (GenBank accession number KT714045) was retrieved from the bacterial stock of Insect Physiology and Molecular Biology Laboratory, Division of Entomology, IARI, New Delhi which was originally isolated from the cabbage aphid, Brevicoryne brassicae (Mandla et al. 2017). The BtVKK-BB2 strain was found to be the most potential out of 12 native strains screened against neonate of BSFB (data not shown here). Thus, BtVKK-BB2 strain was selected for gfp tagging through electroporation. This strain is resistant to ampicillin and penicillin therefore maintained on Luria Bertani agar (LA) supplemented with ampicillin and penicillin (HiMedia Laboratories Pvt Ltd, India) at 50 µg/ml at 30 °C. The Escherichia coli harboring pCAMBIA1302 plasmid (Fig. 1) was grown in Luria Bertani broth (LB) supplemented with 50 µg/ml kanamycin (HiMedia Laboratories Pvt Ltd, India) at 37 °C.

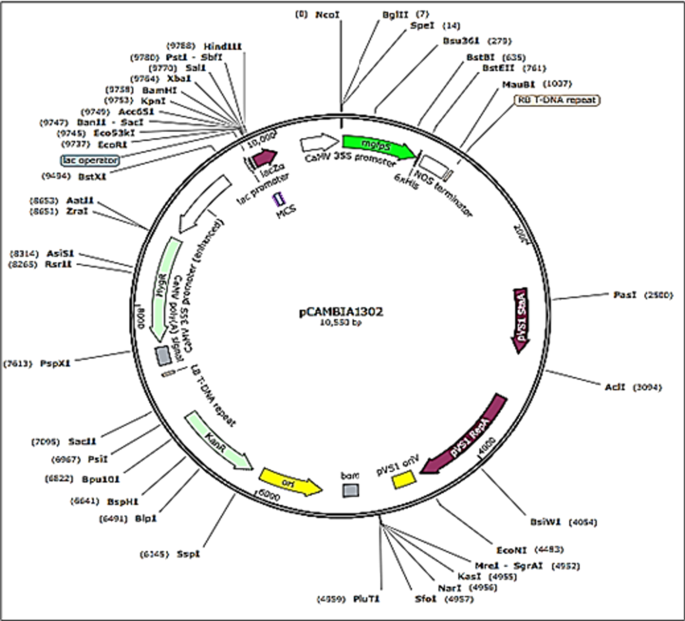

Fig. 1
figure 1

Plasmid vector pCAMBIA 1302 with kanamycin resistance and GFP genes

Preparation of electrocompetent cells

Electrocompetent cells were prepared according to the method described by Peng et al. (2009) with modification. Single colony of Bt VKK-BB2 was inoculated into 5 ml of LB supplemented with ampicillin and penicillin at 50 µg/ml concentration and incubated overnight at 30 °C in incubator shaker with 180 rpm. The overnight culture was diluted tenfold to get the optical density (OD600) (Evolution™ 201/220 UV–Visible Spectrophotometers, Himedia Lab., India) of 0.02 at 600 nm) and incubated at 30 °C with shaking at 200 rpm until an OD600 was reached 0.4. Then cell wall weakening agent glycine (10%) (Sisco Research Laboratories Pvt Ltd, India) 15 ml was added to the culture and kept for incubation for one more hour to get an OD600 0.5. The culture was chilled on ice for 5 min, and the pellets were collected by centrifugation at 5000g for 5 min at 4 °C. The pellet was suspended in 10 ml of ice-cold electroporation medium [272 mM sucrose, 0.5 mM MgCl2, 0.5 mM K2HPO4 and 0.5 mM KH2 PO4 at PH 7.2 (Sisco Research Laboratories Pvt Ltd, India)], incubated on ice for 5 min and centrifuged at 5000g for 5 min at 4 °C and this step was repeated thrice. The washed cells were re-suspended in electroporation medium to obtain cells concentration of approximately 1 × 1010 cells/ml. The electrocompetent cells were aliquoted into 100 µl and stored at − 80 °C until use.

Construction of gfp expressing Bt VKK-BB2 strain

An aliquot (100 µl) of Bt VKK-BB2 electrocompetent cells were mixed with 1 µg of plasmid of pCAMBIA 1302 and electroporated at 1.5 kV/cm and 200 Ω, 25 µF, 4.5 ms in 1 mm cuvette by using Gene-Pulser (Bio–Rad Laboratories, Richmond, CA) as per Peng et al. (2009). The electroporated cells were immediately mixed with 900 µl of Luria broth and incubated at 30 °C for 3 h. After the incubation, cells were plated on LB-agar plates supplemented with selective ampicillin, penicillin and kanamycin at 50 µg/ml concentration and incubated at 30 °C for overnight. Transformed colonies were selected by their resistance to kanamycin (Vector specific) in the medium, and fluorescence of the cells was corroborated under a fluorescence microscope.

Confirmation of gfp expressing cells of BtVKK-BB2 strain

The GFP gene-specific primers F-(5′TCAGTGGAGAGGGTGAAGGT3′), R-(5′GTGGTGGTGGCTAGGTTTGT3′) were designed by NCBI blast and oligocalc (Kibbe 2007). The positive gfp expressing cells of BtVKK-BB2 were screened by using colony-PCR with GFP gene-specific primers by using PCR programme was initial denaturation at 94 °C for 3 min, 30 cycles at 94 °C for 45 s, annealing at 54.3 °C for 50 s, extension at 72 °C for 55 s and final extension at 72 °C for 10 min. Further, the putative positive cells were confirmed by the isolation of plasmid DNA (High-Speed Plasmid Mini Kit Protocol) by overnight grown cells of BtVKK-BB2 into 5 ml of LB containing ampicillin, penicillin and kanamycin (50 μg/ml of each) at 30 °C at 180 rpm. The plasmid of pCAMBIA1302 vector was visualized on 1% agarose gel prepared in 1 × Tris–acetate-EDTA (TAE) buffer and stained by ethidium bromide (0.5 μg/ml) through gel-electrophoresis in a gel documentation system (AlphaimagerTM). This plasmid was used for the PCR detection of gfp gene with the same PCR conditions described earlier.

Plant inoculation

The potting mixture was prepared by mixing soil, vermiculite and coco peat in 1:1:1 ratio and autoclaved for three times at 24 h interval. Seeds of brinjal (variety: Bhagyamati) were obtained from Vegetable Research Station, SKLTS Horticultural University, Hyderabad. Two seeds were sown in the 20 cm × 10 cm size pots and 10 pots per treatment were maintained during the experiment. The seedlings were maintained in plant growth chamber under 12 L:12 D at 30 °C temperature and 65–70% relative humidity. Pots were watered, whenever the top 2–3 inches soil was found dry. gfp-tagged BtVKK-BB2 (gfp-BtVKK-BB2) strain was inoculated by three different methods viz., seed treatment, soil drenching and foliar application as given below.

Seed treatment

Seeds were washed with tap water thrice, followed by 70% ethanol for 2 min and 2% sodium hypochlorite for 5 min and finally washed with sterile distilled water (sdw) thrice. A gfp-BtVKK-BB2 strain was grown in LB with selective antibiotics (ampicillin, penicillin and kanamycin) until OD600 of 0.8 and diluted to achieve the required concentration (108 cfu/ml) by serial dilution method before use. The surface sterilized seeds were soaked in the GFP-BtVKK-BB2 suspension (108 cfu/ml) for 3 h and dried on sterilized tissue for sowing in soil.

Soil application

Five ml of gfp-BtVKK-BB2 (108 cfu/ml) was given near the root zone of 30-day-old seedling once a week.

Foliar application

The leaves of 30-day-old seedling were sprayed once and twice a week with gfp-BtVKK-BB2 (108 cfu/ml) till they became wet.

Soil and foliar application

Five ml of gfp-BtVKK-BB2 (108 cfu/ml) was given to 30-day-old seedlings near the root zone as well as leaves were sprayed with it till, they became wet. In all the treatments, respective controls were treated with sdw.

Visualization of gfp-tagged BtVKK-BB2 in plant tissue using confocal laser scanning microscopy (CLSM)

Samples of leaves and shoots (2 cm) were selected randomly from inoculated and control plant groups at 5, 10, 15 and 30 days after inoculation (DAI) by various treatments. Sections of surface-sterilized leaf, and shoot tissues emitting green fluorescence were observed using 488 nm excitation and 500–550 nm emission wavelength filter settings using CLSM (Leica).

Confirmation of cry1 gene in BtVKK-BB2 colonies recovered from leaves

Samples of 2-cm leaves and stems were selected randomly from respective treated and control plant groups at 3, 10, 15 and 30 days after inoculation. The leaves were surface sterilized with 70% alcohol and 2% sodium hypochlorite solution followed by three washes of sdw. Surface-sterilized leaves were homogenized in sdw and supernatant was plated on selective antibiotic plates [penicillin (50 µg/ml)]. Plates were incubated at 30 °C for 48–72 h. The fluorescence of the cells of colonies thus recovered from treated plants was verified under a fluorescence microscope in order to confirm that the re-isolated colonies were of gfp-tagged BtVKK-BB2.

To ensure the presence of cry1 gene in the recovered colonies from leaves cry 1 gene-specific primers FP-CATGATTCATGCGGCAGATAAAC; RP-TTGTGACACTTCTGCTTCCCATT (Bravo et al. 1998) were used. A loopful cell was transferred to 100 µl of sdw, and the mixture was frozen for 20 min at − 80 °C and then transferred to boiling water for 10 min to lyse the cells. The resulting cell lysate was centrifuged at 10,000 rpm for 30 s and supernatant was used as a DNA template in the PCR. DNA template (10 μl) was mixed with reaction mixture of 4.3 μl consisting of Taq assay buffer (10×) with MgCl2 (15 mM), 1 μl dNTPs (10 mM), 1 μl of each primer (10 pM), 0.2 μl Taq DNA polymerase (5 U/μl) and 7.5 μl nuclease free water. The reactions were placed in a thermocycler (Flexigene Techne, UK) programmed as initial denaturation at 94 °C for 5 min followed by 35 cycles of denaturation at 94 °C for 1 m, annealing at 50 °C for 1 min, extension at 72 °C for 2 min and a final extension at 72 °C for 5 m. After amplification, 2 μl of loading buffer (0.5% bromophenol blue in glycerol 50%) was added to 5 μl of each amplified PCR product and was electrophoresed (at 70 V for 10 min, followed by 90 V for 45 min) on a 1 × Tris–acetate-EDTA (TAE with ethidium bromide) buffer in 1.2% agarose gel. Gels were visualized in a gel documentation system (AlphaimagerTM) and analyzed with AlphaEaseFC.

Rearing of Leucinodes orbonalis and evaluation of colonized gfp-BtVKK-BB2 strain in brinjal by detached leaf assays

Infested brinjal fruits were collected from the fields of IARI, New Delhi brought to insectary and kept in plastic containers till the larvae comes out of fruits and become pupae. The pupae were separated and kept in a small plastic container lined with blotting paper till the adult emergence. On emergence, 25–30 adults were transferred in mating jars (15 cm diameter and 20 cm height) covered with cotton cloth having 10% fortified honey solution for adult feeding. A fresh brinjal leaf was placed daily for egg laying and old leaf with eggs was removed from mating jar and kept in a plastic container covered with tissue paper till hatching. The neonates were reared on semi synthetic diet as per Sethi et al. (2016) with some modification till pupation (Additional file 1: Table S1). The culture was maintained under controlled laboratory condition, i.e., at 27 ± 2 °C, 65 ± 5% RH and 14:10 L:D photoperiod. The neonates (< 24 h old) were used for bioassays.

The leaves were detached from brinjal plants in which BtVKK-BB2 strain was colonized as endophytes by different inoculation methods viz., seed treatment (ST), soil application (SA), foliar spray (FS), SA + FS and control plants of brinjal. Three leaves were detached randomly from each treatment. On each leaf, 10 neonates were released and kept in plastic plates and covered with lid. The observations were taken daily till 7 days.

Results

Confirmation of GFP gene in positive transformants

Transformation of strain VKK-BB2 by electroporation with plasmid pCAMBIA1302 was successful. The expected fluorescence of BtVKK-BB2 transformants harboring pCAMBIA1302 was confirmed by the fluorescence under CLSM observation and plasmid extraction (Fig. 2A, B) and amplification of GFP gene of 644 bp from positive bacterial culture grown on Luria broth with selective antibiotic kanamycin (50 µg/ml) (Fig. 2C). These gfp-tagged BtVKK-BB2 was used to inoculate brinjal seedling by various methods in brinjal.

Fig. 2
figure 2

A Gel image of plasmid extracted from GFP-tagged BtVKK-BB2 strain; B GFP-tagged BtVKK-BB2 cells under confocal microscope; C GFP gene amplification in positive colonies after transformation

Visualization of GFP-tagged BtVKK-BB2 in plant tissue

CLSM studies on gfp-BtVKK-BB2 were carried out in the leaf and shoot tissues of brinjal and tagged BtVKK-BB2 cells were detected in all the methods, i.e., seed treatment, soil application and foliar spray. Whereas, stem and leaf tissues of untreated brinjal seedlings did not show any fluorescent signals during these studies (Fig. 3F). Thus, established that BtVKK-BB2 strain has endophytic ability and it will translocate from seed to shoot as well as leaves and subsist even up to 30 days after seed germination. Moreover, have the ability to migrate from rhizosphere to leaves after soil application. However, the fluorescence signals were reduced over the period of time in all the inoculation methods. The gfp-tagged Bt cells could be distinguished easily from the background fluorescence of the leaf and stem and showed different colonization patterns with different inoculation methods. The CLSM images showed that there was a difference in fluorescence signals in plant parts as per inoculation methods. On the other hand, no florescence was observed in the negative control of all inoculation methods.

Fig. 3
figure 3

Confocal microscopy images of brinjal shoot and leaves tissue colonized by GFP-tagged VKK-BB2 cells by seed inoculation method. 15 days after emergence of seedlings (AC); A Shoot; B and C Leaf. 30 days after emergence of seedlings (DF); D Shoot; E Leaf; F Leaf (control)

The leaf and stem tissues which were collected on 15 and 30 days after seed treatment were detected with fluorescing VKK-BB2 cells (Fig. 3A–E). Few cells appeared to be embedded in between the tissues in leaf (Fig. 3B) and xylem cells (Fig. 3E). The bright fluorescence signals in stem (Fig. 3A) were reduced on 30th DAI (Fig. 3D). In addition, the CLSM images showed that the gfp-BtVKK-BB2 could also colonize near stomata of the leaf (Fig. 3C). The low fluorescence signals on 30th DAI indicated that there was reduction in colonization. Pertaining to soil application of gfp-BtVKK-BB2 as single dose, CLSM images of plant parts revealed that at 3rd day after inoculation, stem and leaf tissues were detected with gfp-BtVKK-BB2 cells while on 10th DAI the signals were less due to low number of colonies and on 15th DAI, no fluorescence was detected (Fig. 4). Whereas, in single dose of foliar spray bright fluorescence has been exhibited by brinjal leaf tissues on 3rd DAI, 10th DAI even up to 15th DAI (Fig. 5A–C).

Fig. 4
figure 4

Confocal microscopy images of brinjal shoot and leaves colonized by GFP-tagged VKK-BB2 cells by soil inoculation method. A Shoot (3DAI); B Leaf (3DAI); C Shoot (10 DAI); D Leaf (10 DAI)

Fig. 5
figure 5

Confocal microscopy images of brinjal leaves colonized by GFP-tagged VKK-BB2 cells by foliar spray method @ single application (AC) [A 3 days after inoculation; B 10 days after inoculation; C 15 days after inoculation] and twice/week (DF) [D 3 days after inoculation; E 10 days after inoculation; F 15 days after inoculation]

Further, it has been noticed that when gfp-BtVKK-BB2 was inoculated to soil twice in a week, there was a slight increase in fluorescence signals on 3rd DAI over the single dose of soil application but there was no much variation in colonies at 10th DAI over the single dose. On the other hand, strong fluorescence signals were detected in brinjal leaf tissues on 3rd, 10th and 15th DAI with two doses of foliar spray per week over the single dose. The brinjal plant treated with SA + FS twice/week showed more fluorescence up to 15th DAI in leaves which was found to be equivalent to that of foliar spray twice/week treatment (Fig. 5D–F; Fig. 6). Further, GFP positive cells were detected in stem sections up to 10th DAI only but not seen when tested up to 15th DAI. These results suggested that Bt-VKK-BB2 was a systemic colonizer of brinjal through seed treatment, soil application and foliar spray.

Fig. 6
figure 6

Confocal microscopy images of brinjal shoot and leaves colonized by GFP-tagged VKK-BB2 cells by soil + foliar application method. A Shoot (10 DAI); B Leaf (10DAI); C Shoot (15 DAI); D Leaf (15 DAI)

Confocal microscopic studies indicated that gfp-BtVKK-BB2 cells were efficiently colonized brinjal leaf and colonization was detected up to 10 days in soil application while 15 days in foliar spray, whereas it was up to 30 DAI in seed treatment. However, the bright fluorescence was seen in plants treated by foliar spray followed by seed treatment and soil application.

Confirmation of cry gene in BtVKK-BB2 colonies recovered from leaves through PCR

BtVKK-BB2 colonies which were re-isolated from leaves collected from seed inoculated plant, soil application plant as well as foliar-sprayed plants amplified expected amplicon size of 276 bp of cry1 gene (Fig. 7). Thus, confirmed that BtVKK-BB2 could persist and produce Cry toxins in the leaves in all the inoculation methods.

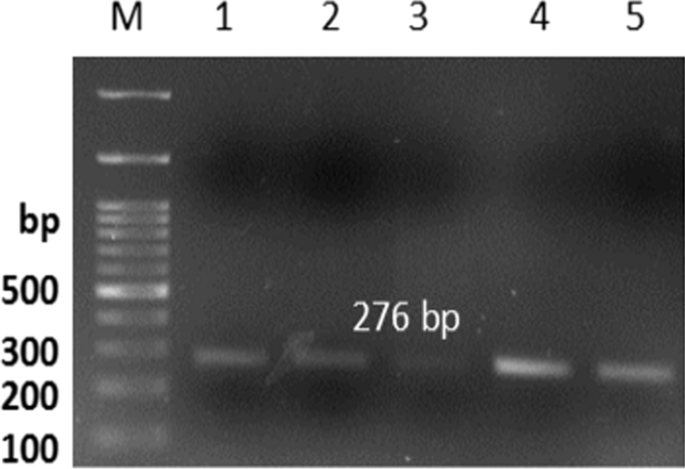

Fig. 7
figure 7

Amplification of cry1 gene in BtVKK-BB2 colonies re-isolated from leaf samples of different treatments (Lane 1–5) and Lane M: Marker

Bioassays with brinjal plants inoculated with gfp-BtVKK-BB2 against Leucinodes orbonalis

The efficacy of gfp-BtVKK-BB2 established as endophyte by different inoculation methods in brinjal plants was carried out by detached leaf feeding assays as shown in Fig. 8 against neonates of BSFB. The observations on feeding of neonates on leaves in all the inoculation methods indicated that the larvae were found to feed by tunneling of leaves including untreated control but the dead larvae were seen on leaves from 5th day to 7th day after release on leaves. 26.85–39.26% mortality was observed on 7 days after treatment (Fig. 9).

Fig. 8
figure 8

Detached leaf bioassay showing leaf damage by neonates of Leucinodes orbonalis in A Control; B BtVKK-BB2-colonized plant

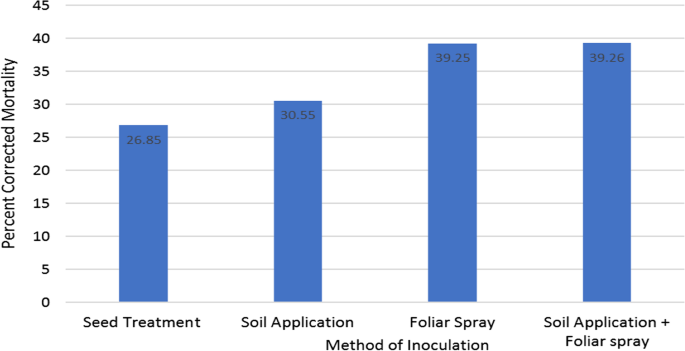

Fig. 9
figure 9

Effect of different inoculation methods used for establishment of GFP-BtVKK-BB2 strain as endophytes in brinjal plant on its efficacy against neonates of Leucinodes orbonalis

Discussion

During the past decade, numerous studies have been carried out on plant disease control, growth promotion and biomass improvement through use of bacterial endophytes, and many useful strains have been identified, resulting in several commercial products (Mei and Flinn 2010; Pérez-García et al. 2011; Alfonzo et al. 2012; Li et al. 2012). Recently various reports demonstrated that entomopathogenic fungi and bacteria can be easily established inside plants and can be used for management of insect pests (Praça et al. 2012; Russo et al. 2021; Resquín-Romero et al. 2016; Sánchez-Rodríguez et al. 2018; Sauka and Benintende 2017). In view of that, bacterial (Bacillus spp.) have received increasing attention as a promising alternative to chemical control and offer a good option as biocides over transgenes. Scientific advancement of endophytic nature of bacterial (Bacillus spp.) open new avenue for the pest control, as once the endophytes are inoculated into plants, they will self-perpetuate and interfere with biosynthetic pathways which results in systemic production and translocation of secondary metabolite, enhancement of micronutrient content and production of toxins throughout the plant, which do not allow the ingestion by insect pests. But the studies are limited with respect to the endophytic ability of entomopathogenic B. thuringiensis showing resistance against insect species. In the present study, an attempt has been made to colonize potential native Bt strain VKK-BB2 in brinjal plant and validated by CSLM, cry1 gene amplification and feeding bioassay.

The long-term persistence of bacteria in the sampled leaf and stem tissues through seed treatment in the present study clearly demonstrated that they were able to colonize rapidly and can compete with other internal microbes inside the seedling. The seed endophytic microbial load was probably low during inoculation of gfp-BtVKK-BB2 to the seed which might have allowed the inoculant strain to thrive inside the seedling which could be visualized under CLSM after 4th week of inoculation. Similarly, Praça et al. (2012) revealed that the four Brazilian B. thuringiensis strains were able to colonize cabbage seedlings through seed treatment and further confirmation of presence of vegetative cells, spores and crystals of the strains in different parts of cabbage seedlings has been done by using scanning electron microscopy. According to previous reports, the bacterial isolates that have selective ability to use the nutrients released during seed germination have an advantage in colonizing the internal tissues of seed (Subrahmanyan et al. 1983). However, in the present study, at 5th week after seed treatment no fluorescence signals were perceived including stem and leaf tissues.

In case of soil application, the probable route for systemic colonization in the plant might be the vascular system of the plant and xylem vessels of stem. Thus, the bacterium could be able to translocate more possibly, through the xylem up to the stem and leaves of the plant and persisted up to 10th day after single inoculation. The fluorescence signals in the leaf tissues clearly demonstrated that the bacteria have shown rhizosphere competence against endophytic microbes in root, stem and leaf tissues. However, the inoculant strain gfp-BtVKK-BB2 has not been traced at 15th day of inoculation which could be probably due to the high competition from the plant associated microbes. Earlier, it has been reported that plant growth promotion ability of B thuringiensis in legumes and Bt that has been inoculated into legumes rhizosphere not only colonize its root interior, but also improve root nodulation and plant growth (Mishra et al. 2009). Monnerat et al. 2009 reported the capability of Bt kurstaki strain HD-1 marked by GFP that inhabit plants as an endophyte. After successful inoculation of cotton and cabbage seedlings to the roots, GFP marked bacteria has been visualized from all parts of the plant and confirmed the translocation of bacterium in the xylem.

In the foliar spray, the more fluorescent signals were detected after 1 week of inoculation due to high colonies of bacterium inside the leaf tissues. So, it can be ascribed that the bacterium could reach leaf tissues which might be due to less competition compared to the soil application method. Moreover, it has been predicted that the bacteria made the entries through stomata and signals were more near the stomatal walls as the colonization of bacteria was confirmed by CLSM images. While, on 15th day after inoculation, relatively low signals were recovered in leaf tissues due to decline in the number of colonies of inoculant inside the leaf tissue. The inoculant strain could not persist inside the plant for longer period might be due to availability of limited nutrients or inhibitory effects of the diverse secondary metabolites of plant and antimicrobial secretions from surrounding microbes. Maduell et al. (2008) reported that few green fluorescent cells were detected through epifluorescence microscopy of the given leaf surfaces at 2 days after foliar spray of B. thuringiensis strain on bean leaves. Further, it has been added that Bt was unable to grow at relatively low nutrient concentrations on bean leaf surfaces compared to other epiphytic microbes. Nevertheless, various lines of evidence suggest that B. thuringiensis is unable to access nutrients that might be available on leaves.

The present study indicated that tagging of insecticidal Bt strain and CLSM imaging to visualize the endophytic ability of bacteria inside the brinjal plant is believed to be a potential tool for analyzing the colonization and localization of beneficial microbial population. Moreover, ability of Bt to systemically colonize inside the plant tissues also allow protection of Bt strain VKK-BB2 from environmental factors which are known to influence the colonization. Additionally, feeding bioassays with BtVKK-BB2-inoculated brinjal plants of different treatments ensure its insecticidal ability, which further has to be enhanced by increasing the rate of establishment in plant tissues. However, Bt was not detected inside the plant parts 2 weeks after soil application and foliar sprays raised the questions on survival fitness of Bt in terms of its interaction with other plant associated microbes and plant chemistry which are yet to be explored. Among the various methods, the seed treatment was better method in terms of long-term colonization inside the leaves and followed by foliar spray as the colonization was found to be more in the leaves.

Conclusions

Establishment of native Bt strain as endophytes in plants opens new horizons for the development of a novel pest-resistant crops which could be an alternative to Bt transgenic crops. However, the level of insect mortality reported in current study was not high as these were achieved by single-dose inoculum. Thus, further optimization of Bt strain concentration is required to attain viable level of control of L. orbonalis in the field conditions. Moreover, inoculation of Bt through seed and foliar spray has to be further explored against larval herbivores especially internal borers to enhance its biocontrol potential through endophytic mediation which may open a novel set of strategies to control the insect pests in a sustainable way.

Availability of data and materials

The datasets used during the current study are available from the corresponding author on reasonable request.

Abbreviations

Bt:

Bacillus thuringiensis

BSFB:

Brinjal shoot and fruit borer

CFU:

Colony forming unit

CLSM:

Confocal laser scanning microscopy

DAI:

Day after inoculation

min:

Minute

msec:

Milli second

sec:

Second

sdw:

Sterilized distilled water

µg:

Microgram

µl:

Microlitre

Fig.:

Figure

GFP:

Green florescent protein
