Efficacy of Beauveria bassiana and Beauveria pseudobassiana isolates against the pine processionary moth, Thaumetopoea wilkinsoni Tams, 1926 (Lepidoptera/Notodontidae)

Abstract

Background

The pine processionary moth, Thaumetopoea wilkinsoni Tams, 1926 (Lepidoptera/Notodontidae) is one of the most harmful insects that destroys pine ecosystems by feeding on pine leaves at its larval stage. Because of its urticating setae, the insect also causes severe skin reactions to animals and humans. Instead of chemical control, eco-friendly biological control methods are preferred to combat this species.

Results

The purpose of this study was to evaluate the efficacy of five different Beauveria bassiana Vuill, 1912 (Hypocreales/Cordycipitaceae) isolates (TR-SM-10, TR-SM-11, TR-SM-2, TR-SK-1 and TR-D-1) and one B. pseudobassiana Rehner & Humber (Hypocreales/Cordycipitaceae) isolate (TR-SM-1) against the fourth instar larvae of T. wilkinsoni under laboratory conditions. T. wilkinsoni larvae were collected from the Ondokuz Mayıs University Kurupelit Campus in Samsun, Turkey, in 2021, and the fourth instar larvae were used in the experiment. Two ml of spray of the six fungal isolates were applied to every ten larvae at each concentration (1 × 10⁷ and 1 × 10⁸ conidia ml⁻¹). The experiment was carried out in five replicates per group, and the larvae were observed for 10 days. As a result, all isolates of B. bassiana caused 100% mortality at 1 × 10⁸ conidia ml⁻¹ concentration. B. pseudobassiana isolate also caused 100% mortality at both concentrations. At 1 × 10⁷ conidia ml⁻¹ concentration, the larvae treated with the B. pseudobassiana isolate (TR-SM-1) had the lowest LT₅₀ (2.89 days) and LT₉₀ values (4.79 days), while the larvae treated with TR-SM-10 isolate had the highest LT₅₀ (5.65 days) and LT₉₀ values (9.39 days). At 1 × 10⁸ conidia ml⁻¹ concentration, the larvae treated with TR-SK-1 isolate had the lowest LT₅₀ (2.89 days) and LT₉₀ values (4.79 days), while those treated with TR-SM-10 isolate had the highest LT₅₀ (3.95 days) and LT₉₀ values (8.15 days).

Conclusion

It has been recommended that the five different isolates of B. bassiana and B. pseudobassiana isolates were virulent to T. wilkinsoni larvae and can be used for biological control of T. wilkinsoni.

Background

The Pinaceae family has many genera, one of the most important genera is Pinus. The needles of the Pinus genus contain essential oils. Because of their various pharmacological properties, such as anti-ageing and anti-inflammatory effects, the needles are widely used in folk medicine and as food additives.

The Pinus species are distributed almost all over the world, including Turkey. Insect pests lead to the biological factors that threaten the continuity of pine forests in Turkey. The pine processionary moth, Thaumetopoea wilkinsoni Tams, 1926 (Lepidoptera/Notodontidae) is one of the most harmful needle-eating insects in pine ecosystems (Altunışık and Avcı 2016). The pest causes deformities in seedlings and stunting (Onaran and Katı 2010) and even tree deaths in young stands (Keleş et al. 2018). In addition, the larvae of the insect have urticating setae that cause skin reactions in both animals and humans (Rodriguez-Mahillo et al. 2012).

Both mechanical and chemical control methods are used to combat the pest in pine forests in Turkey. Given the adverse effects of chemical control on the ecosystem, biological control methods are preferred to combat the species. The use of entomopathogenic microorganisms as a biological control agent is critical in overcoming harmful species in terms of both targeting only a specific pest and being environmentally friendly. Entomopathogenic fungi (EPF) are one of the most effective biological control agent in pest control. B. bassiana Vuill, 1912 (Hypocreales/Cordycipitaceae), is the most common one (Zibaee et al. 2013). Studies on B. bassiana (Rehman et al. 2020) have revealed that the fungi are effective against a variety of insects. Furthermore, the effectiveness of B. pseudobassiana Rehner & Humber (Hypocreales/Cordycipitaceae), which is a cryptic species morphologically similar to B. bassiana but phylogenetically distant from B. bassiana (Rehner et al. 2011), has also been investigated against various insects (Bedini et al. 2018). There are various studies investigating the use of different B. strains to develop safe biological control strategies in the control of the pine processionary moth (Gök et al. 2018).

Combating with T. wilkinsoni is critical for protecting pine forests, which are important for both ecological and economic reasons, as well as reducing the threat to human and animal health. Therefore, in the present study, the efficacy of five different B. bassiana isolates was evaluated against the fourth instar larvae of T. wilkinsoni under laboratory conditions.

Methods

Sampling

The fourth instar larvae of T. wilkinsoni were collected from a pine forest at Ondokuz Mayıs University Kurupelit Campus in Samsun, Turkey (N 41° 22′ 26.5116″ E 36° 13′ 17.6340″), in 2021.

Preparation of entomopathogenic fungi

A total of six native EPF isolates (TR-SM-10, TR-SM-11, TR-SM-2, TR-SK-1, TR-D-1, and TR-SM-1) molecularly identified and isolated from infected Palomena prasina Linnaeus (Hemiptera/Pentatomidae) in hazelnuts orchards, Black Sea region of Turkey in 2018–2019, were used in this study (Table 1) (Ozdemir et al. 2021). All isolates were obtained from the same host and the same location.

Table 1 Species of the entomopathogenic fungi isolates used in the study

The six native EPF isolates belong to B. bassiana (TR-SM-10, TR-SM-11, TR-SM-2, TR-SK-1, and TR-D-1) and B. pseudobassiana (TR-SM-1). These isolates were inoculated into potato dextrose agar (PDA; Merck Ltd., Darmstadt, Germany) and incubated in complete darkness at 25 ± 1 °C for one week (Incubator; Binder KBWF 240; Germany). At the end of the growth period, each Petri dish was filled with sterile distilled water containing 0.02% Tween 20 and scraped with a glass bag to pass the conidia into the water. Following that, the conidia suspensions were filtered through three layers of sterile cheesecloth to remove mycelium and homogenized for 3 min by vortexing. The resulting conidia suspensions were adjusted to concentrations of the 1 × 10⁷ and 1 × 10⁸ conidia ml⁻¹ using a Neubauer hemocytometer under Olympus CX31 light microscope (Olympus America Inc., Lake Success, NY) (Tuncer et al. 2019).

Application of entomopathogenic fungi on T. wilkinsoni

In the experiment, two layers of sterile filter paper were lightly moistened and placed in 1-L plastic cups. Two ml of the 1 × 10⁷ and 1 × 10⁸ conidia ml⁻¹ were sprayed on the fourth instar larvae placed in plastic cups (ten larvae per dish) using a Potter spraying tower (Burkard, Rickmansworth, Hertz UK), and the appropriate amount of sterilized pine leaves were placed in the dishes to feed the larvae. After each application of EPF suspension, the spray tower was cleaned by 70% ethanol and sterile distilled water. Subsequently, the fourth instar larvae of the insect were released in plastic cups. Only sterile-distilled water containing 0.02% Tween 20 was sprayed to the control group. For 10 days, all plastic cups were incubated at 25 ± 1 °C, 70 ± 5% RH, and a 16:8 h light/dark period. The mortality rates were monitored for ten consecutive days. The dead larvae in each cup were counted 10 days after the application, and the mortality rates were determined. The same procedure was repeated every day for the control groups (Ozdemir et al. 2019).

Statistical analyses

Daily mortality rates were corrected using the Abbott formula when the mortality rate in the control group exceeded 5% (Abbott 1925). The LT₅₀ and LT₉₀ values were determined by Probit analysis using the log-Probit method (POLO-PLUS ver.2.0). The slopes of the regression lines were compared to each. The LT₅₀ and LT₉₀ values of the isolates were compared using confidence intervals (95%).

Results

Before bioassays, the conidial viability of B. bassiana (5) and B. pseudobassiana (1) isolates was determined, as well as the germination rate (100%). Beauveria isolates were applied to the fourth instar larvae of T. wilkinsoni at different concentrations, and the LT₅₀ and LT₉₀ values for each isolates differed (Tables 1 and 2). The LT₅₀ and LT₉₀ values for TR-SM-1 isolate against T. wilkinsoni were 2.89 and 4.79 days, respectively, at 1 × 10⁷ conidia ml⁻¹ concentration, whereas they were 3.01 and 7.47 days at 1 × 10⁸ conidia ml⁻¹. The LT₅₀ and LT₉₀ values for TR-D-1 isolate were 4.42 and 7.46 days at 1 × 10⁷ conidia ml⁻¹ while 3.27 and 6.39 days at 1 × 10⁸ conidia ml⁻¹, respectively. While the LT₅₀ and LT₉₀ values of TR-SK-1 isolate were 4.23 and 8.68 days at 1 × 10⁷ conidia ml⁻¹ concentration, the LT₅₀ and LT₉₀ values were 2.89 and 4.79 days at 1 × 10⁸ conidia ml⁻¹ concentration, respectively. The LT₅₀ values of the 1 × 10⁷ and 1 × 10⁸ conidia ml⁻¹ concentration of TR-SM-2 isolate were 4.22 and 3.64 days, whereas the LT₉₀ values of the same concentrations of the same isolate were 7.46 and 6.99 days, respectively. Similarly, the LT₅₀ values of the 1 × 10⁷ and 1 × 10⁸ conidia ml⁻¹ concentrations of TR-SM-10 isolate were 5.65 and 3.95 days, respectively. The LT₉₀ value of the 1 × 10⁷ conidia ml⁻¹ concentration of the same isolate was 9.39 days, while the LT₉₀ value for the 1 × 10⁸ conidia ml⁻¹ of the same isolate was 8.15 days. The LT₅₀ and LT₉₀ values for TR-SM-11 isolate at the 1 × 10⁷ conidia ml⁻¹ concentration were 4.01 and 8.57 days, whereas at 1 × 10⁸ conidia ml⁻¹ for the same isolate, they were 3.75 and 7.66 days, respectively (Tables 2 and 3).

Table 2 Probit analysis data on the mortality time (days) of Thaumetopoea wilkinsoni after the applications of the 1 × 10⁷ conidia ml⁻¹ concentration of Beauveria bassiana and B. pseudobassiana isolates

Table 3 Probit analysis data on the mortality time (days) of Thaumetopoea wilkinsoni after the applications of the 1 × 10⁸ conidia ml⁻¹ concentration of Beauveria bassiana and B. pseudobassiana isolates

It was determined that the two tested concentrations of nearly all isolates began to cause mortality 2 days after the application, and the mortality increased with time (Figs. 1 and 2). Except for TR-SM-10, TR-SM-11 and TR-SK-1 isolates, the 1 × 10⁷ conidia ml⁻¹ concentration of the isolates caused 100% mortality 10 days after the application, while the 1 × 10⁸ conidia ml⁻¹ concentration of all isolates caused 100% mortality. Although TR-D-1 and TR-SM-10 isolates caused 100 and 93.3% mortality (at 1 × 10⁷ conidia ml⁻¹ concentration), respectively, at 1 × 10⁸ conidia ml⁻¹ concentration, the two isolates caused 100% mortality 5 and 9 days after the treatment. Similarly, while the mortality rates by the two isolates, TR-SM-11 and TR-SK-1 at 1 × 10⁷ conidia ml⁻¹ concentration, were 96% within 10 days, these rates for the two isolates at 1 × 10⁸ conidia ml⁻¹ concentration were 100% 7 days after the treatment. The mortality rates in both concentrations of TR-SM-1 were recorded as 100% 10 days after the treatment. Similarly, the 1 × 10⁷ and 1 × 10⁸ conidia ml⁻¹ concentrations of TR-SM-1 isolate caused 100% mortality within 10 and 6 days, respectively (Figs. 1 and 2).

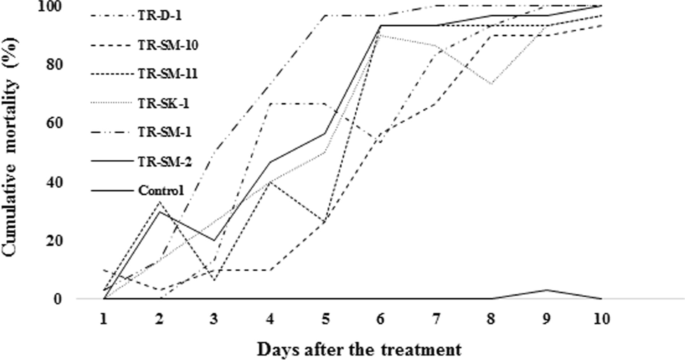

Fig. 1

Mortality rates of Thaumetopoea wilkinsoni treated with Beauveria bassiana and Beauveria pseudobassiana isolates at 1 × 10⁷ conidia ml⁻¹ concentration

Fig. 2

Mortality rates of Thaumetopoea wilkinsoni treated with Beauveria bassiana and Beauveria pseudobassiana isolates at 1 × 10⁸ conidia ml⁻¹ concentration

Discussion

B. bassiana, as one of the EPFs, is one of the most preferred species in terms of its effectiveness in pest control. The efficacy of five different B. bassiana and one B. pseudobassiana isolates against the fourth instar larvae of T. wilkinsoni was investigated. Since the pine processionary moth often overwinters as the fourth instar larvae (Ozdemir et al. 2019), the fourth instar larvae were chosen in this study.

It is critical to determine the lethal times (LT₅₀ and LT₉₀ values) to reduce the overall cost of pest control while maintaining a high level of control. While the most effective isolate was TR-SM-1 at 1 × 10⁷ conidia ml⁻¹ concentration, TR-SK-1 was the most effective isolate at 1 × 10⁸ conidia ml⁻¹ concentration. Both the LT₅₀ and LT₉₀ values ​​decreased with the increasing conidial concentrations in all isolates (except TR-SM-1). This situation has indicated that the highest conidial concentrations of B. bassiana isolates were more virulent for T. wilkinsoni larvae. The results of the previous studies showed that they were consistent with the findings obtained from this study (Tuncer et al. 2019). Ozdemir et al. (2019) determined that the B. bassiana strain applied to T. pityocampa Denis & Schiffermüller, 1775 (Lepidoptera/Notodontidae), larvae caused a decrease in LT₅₀ values with increasing conidial concentration. Similar results were obtained in studies where B. bassiana was treated with insect species from other orders other than Lepidoptera.

Ten days after the application, it was determined that B. bassiana isolates, except TR-SM-10, TR-SM-11, and TR-SK-1, caused 100% mortality at 1 × 10⁷ conidia ml⁻¹ concentration. All three isolates led to high mortality rates of 93.3, 96, and 96%, respectively. At the end of the experiment, it was determined that all isolates caused 100% mortality at 1 × 10⁸ conidia ml⁻¹ concentration. This situation proved that the concentration of the 1 × 10⁸ conidia ml⁻¹ for all isolates was highly virulent to T. wilkinsoni larvae. There are several studies showing the effectiveness of different Beauveria strains against the pine processionary moth. Draganova et al. (2013) determined that the pine processionary moth was affected by the B. bassiana strain. Sönmez et al. (2017) applied B. bassiana KTU-24 strain to the pine processionary moth, and noted that the strain caused more mortality with increasing concentration. Gök et al. (2018) showed that the B. bassiana LD2016 strain sprayed on the pine processionary moth caused 100% death on the fifth day, while the B. bassiana BMAUMM6-4 strain caused 100% death on the third day. In studies with different species, the efficacy of B. bassiana isolates was evaluated.

Studies on the effectiveness of B. pseudobassiana in insects of the order Lepidoptera are few. Of these, Schemmer et al. (2016) reported that six different B. pseudobassiana strains were applied to Cameraria ohridella Deschka & Dimić (Lepidoptera/Gracillariidae), and all strains caused 100% mortality on the tenth day. Gürlek et al. (2018) stated that B. pseudobassiana caused death in Cydia pomonella Linnaeus (Lepidoptera/Tortricidae). In addition, the effectiveness of B. pseudobassiana against insects in other orders was also discussed in the studies. B. pseudobassiana has been reported to be an entomopathogen for Hypera postica Gyllenhal (Coleoptera/Curculionidae) (Yücel et al. 2018). Álvarez-Baz et al. (2015) demonstrated that B. pseudobassiana was highly virulent against Monochamus galloprovincialis Olivier (Coleoptera/Cerambycidae), the vector of pine wilt disease. B. pseudobassiana isolates have been reported to be virulent against the Eastern pine weevil Pissodes nemorensis Germar (Coleoptera/Curculionidae) (Romon et al. 2017).

Conclusions

T. wilkinsoni is an important forest pest that causes significant allergic reactions in humans and animals. Biological control has an important potential in order to protect the ecosystem against T. wilkinsoni, which is common in forests. The pest is a candidate for the use of EPF with high humidity and low average temperatures. Beauveria isolates obtained from this region were applied against the pest and five different isolates of B. bassiana and B. pseudobassiana isolate were found to be virulent against T. wilkinsoni larvae in this study. Moreover, the study revealed that B. pseudobassiana, which is less studied compared to B. bassiana, is a promising entomopathogen and can be used to control T. wilkinsoni larvae. As a result, these fungal isolates can be applied in the field under controlled conditions.
