Effect of Bacillus safensis NBRC 100820 isolated from cotton plant against the spiny bollworm, Earias insulana (Boisduval)

Abstract

Background

Toxic effect of some local bacterial isolates, isolated from the Egyptian cotton plant (Gossypium barbadance L.), on larvae of the spiny bollworm (SBW), Earias insulana (Boisduval) (Lepidoptera: Nolidae) was studied as well as the biological effects of the most toxic isolate.

Results

Bacillus safensis NBRC 100820 had the most toxic effect on the SBW larvae compared to other isolates. Larval mortality percentages were 100, 90, 50, 50 and 30% for newly hatched, 3, 5, 7 and 10-day’s old larvae, respectively, after 2 days from treatment. Moreover, B. safensis NBRC 100820 caused latent effects on different stages of SBW. It decreased the larval and pupal weight, percentages of adult emergence and hatchability as well as number of deposited eggs/female more than the control. Using 16s rRNA confirmed the identification of B. safensis NBRC 100820 and its accession number is MW281809.

Conclusions

Use of B. safensis NBRC 100820 can be recommended for biological control of E. insulana. Further field studies are needed.

Background

Spiny bollworm (SBW), Earias insulana (Boisduval) (Nolidae: Lepidoptera) has been recorded as one of the most destructive insect pests, responsible for great economic losses of cotton yield in Egypt (Nada et al. 2010). Meanwhile, insecticides are considered the main protocol used for controlling the cotton pests due to their high efficacy (Wang et al. 2012). On the other hand, using of insecticides in cotton field has caused many problems such as environmental pollution, insecticides-resistance, and harmful effects to natural enemies (Yongqiang et al. 2016). Biological control represents one of the most effective choice to control many insect pests. The entomopathogenic bacterial strains, especially species belonging to the genus Bacillus, are one of the most effective groups of entomopathogenic bioagents (Glare and O’Callagan 2006).

Bacillus safensis originally isolated from spacecraft surfaces in California and Florida, USA (Satomi et al. 2006). Moreover, this species was currently isolated from surface soil (Ishag et al. 2016) and plants (Wahla et al. 2019). B. safensis, is a gram-positive bacterium, spore forming, aerobic, rod shaped and motile (Satomi et al. 2006). In addition, it can grow within a temperature range of 10–50 °C and pH range of 4.0–9.0 (Roohi et al. 2014). Bacillus thuringiensis dominates the insect pest-control agents’ market as it is efficient and specific (Chattopadhyay et al. 2004).

In Egypt, several researches studied the biological control of destructive cotton pests such as the leaf worms, spiny and pink bollworms, using some Bacillus species (Abd-Elazeem et al. 2017).

The aim of this study was to isolate bacterial isolates from the cotton plant and identify them then evaluated their pathogenic effect against the spiny bollworm, E. insulana. Moreover, it aimed to study the biological effects of the most affected isolates.

Methods

Spiny bollworm rearing

The SBW larvae used in this study were obtained from the mass rearing culture of bollworms. It had been reared on artificial diet for several generations away from any contamination of insecticides. This artificial diet was described previously by Amer (2015). The experiment was performed under controlled conditions in an incubator at 26 ± 1 °C and 65 ± 5% RH.

Cotton sampling

Different cotton plant samples (leaves, stems and roots) were collected from various areas of Sharkia governorate, Egypt. The collected samples were placed in clean plastic bags and transferred to the laboratory for the isolation steps. The plant material was identified by Dr. Samir Teleb, Lecture of taxonomy of higher plants, Botany Department, Faculty of Sciences. Voucher specimen of this material was deposited in a publicly available herbarium.

Microbiological analysis

Bacterial isolation

Plant samples were washed by tap water, followed by sterile distilled water. Each plant sample was cut into 2 cm long segments, using an aseptic sterile blade under the laminar flow hood and was allowed to dry. The cut surfaces of plant segments were placed in Petri plates containing Nutrient Agar (NA) media (Hi media, India). Each plant segment was inoculated in triplicate. Plates were then incubated at 30 °C for 48 h. Colonies of different pigmentation and morphology were randomly selected from each plate and streaked on fresh NA plates as described above. The pure isolates were preserved in 20% glycerol at − 20 °C for other studies (Girlanda et al. 2001).

Bacterial culture preparations

Bacterial culture prepared by the broth inoculum was taken from plated material and developed in 250 ml flasks, containing 50 ml of the broth. Then the bacterial broth was cultured at 35 °C in an orbital shaker for 24 then 48 h, shaking at 100 rpm.

Characterization of most potent bacterial isolate

Characterization of isolated bacterial colony by light microscope

Developed bacterial colonies were examined daily and the purified bacteria were identified to the species level whenever possible. The identification of bacterial genera and species was carried out by the help of the universally accepted keys for the characterization of the different isolates. Morphology was based on colony shape, height and color of the colony, growth rate and margin characteristics Benson (1998).

Molecular characterization (sequence of 16S rRNA gene of DNA)

Added 200 µl of sample (liquid media that contain bacteria) in micro centrifuge tube and add 95 µl water, 95 µl solid tissue buffer (blue) and 10 µl proteinase K. Mix thoroughly and then incubate the tube at 55 °C for 2 h. Mix thoroughly and centrifugation at 12,000×g for 1 min. Transfer aqueous supernatant to a clean tube (300 ul). Add 600 ul genomic binding buffer and mix thoroughly. Transfer the mixture to a zymo-spin™ IIC-XL column in a collection tube. Centrifuge (≥ 12,000×g) for 1 min. Discard the collection tube with the flow through. Add 400 µl DNA pre-wash buffer to the column in a new collection tube and centrifuge at (12.000×g) for 1 min. Add 700 µl g-DNA wash buffer and centrifuge at (12.000×g) for 1 min. Empty the collection tube. Add 200 µl g-DNA wash buffer and centrifuge at (12.000×g) for 1 min. Discard the collection tube. Add 30 µl elution buffer, incubated for 5 min and then centrifuge at (12.000×g) for 1 min. The primers used were 27F AGAGTTTGATCMTGGCTCAG and 1492R CGGTTACCTTGTTACGACTT. Characterization was done at sigma scientific technical support laboratory Cairo, Egypt.

Bioassay

Pathogenicity effect of 70 bacterial isolates on the newly hatched spiny bollworm larvae

Pathogenicity of 70 isolated bacteria was tested against the newly hatched larvae of SBW as follow: One ml of each selected bacterial isolated broth was distributed on the surface of Petri-dishes (9 cm in diameter) containing 5 g of the artificial diet without antimicrobial agent and left until complete dryness. Twenty newly hatched larvae of SBW were transferred by a soft brush to the surface of treated diet in Petri-dishes then, they were covered by fine and soft paper below the glass cover. Other Petri-dish as a control were prepared containing the same diet but treated with one ml of sterile distilled water and left till dryness and an also twenty larvae were placed on each surface. Treated and control Petri-dishes incubated in an incubator at 26 ± 1 °C and 65 ± 5%RH. The treated and untreated larvae were transferred individually after 24 h from treatment to glass tubes (2 × 7 cm) containing untreated diet (4 g). Tubes were plugged with absorbent cotton and incubated at the above-mentioned conditions. Larval mortality was recorded after two days of treatment.

Pathogenicity of the most affected bacterial isolates on different day-old larvae of SBW

Virulence of the most affected bacterial isolates (no. 12, 18, 36, 66 & 70) against 3, 5, 7 and 10-day old larvae of the SBW were prepared as above. Then, they were fed on treated diet for 24 h. Larval mortality was recorded after 48 and 96 h of treatment (El-Didamony et al. 2016).

Biological effects of B. safensis on some biological aspects of SBW

The latent effects of B. safensis on certain biological aspects of SBW; serial dilutions of B. safensis culture (10–1, 10–2, 10–3, 10−4and 10–5) were studied to provide the most suitable concentration on studying the biological effect. Artificial diet (5 g) without antimicrobial agent was placed in a Petri dish. One ml of B. safensis 10–5 concentration and one ml of water as control were distributed on the surface of diet and left till complete dryness. Twenty-five newly hatched larvae were transferred to the surface of each Petri-dish. Each treatment and control were replicated 4 times. Treated and control Petri-dishes were covered by soft paper below their covers and placed in an incubator at standard conditions of 26 ± 1 °C and 65 ± 5% R H. After 24 h, the alive larvae were transferred to glass tubes (2 × 7 cm) containing untreated diet, kept at the same previous conditions, and followed up daily till pupation. The pupae were transferred to clean tubes until adult emergence. The newly emerged moths of each treatment and control were sexed, placed in glass chimney cages for mating (5 pairs/cage) and replicated 4 times. Inside the cage, a piece of cotton wool previously soaked in 10% sugar solution was suspended to be renewed every 48 h for moths feeding. The cages were examined daily until death of moths. The number of eggs laid by females was counted, placed in clean glass jar and incubated under the same conditions until hatched. Main parameters were estimated such as larvae and pupal durations, weight of full-grown larvae and pupae (one-day old) and pupation percent. The emergence percent and sex ratio were measured as percent of females from the total number of emerged adults. Fecundity (eggs’ number) per female and fertility were calculated. In addition to female longevity as pre-oviposition, oviposition and post-oviposition periods and male longevity were determined.

Statistical analysis

Obtained results were analyzed to compare the mean of treated and control according to Little and Hills (1975) and CoStat computer program Cohort Software. P. O. Box 1149, Berkeley CA 9471 (CoStat program 2005).

Results

Pathogenicity studies

Pathogenicity of 70 bacterial isolates against the newly hatched spiny bollworm larvae

Pathogenicity of the isolates was screened against the newly hatched larvae of the SBW. Only 5 isolates (no. 12, 18, 36, 66 and 70) of them gave mortality 90% and more. The mortality percentages were 90, 95, 90, 90 and 95% for the isolates, respectively. While, the remaining isolates gave a mortality rate less than 90%, represented by 92.85% of the total isolates (Table 1).

Table 1 Pathogenicity of some bacterial isolates on newly hatched spiny bollworm larvae

Pathogenicity of the selected bacterial isolates on SBW different day-old larvae

Results presented in Table 2 represent the efficacy of selected bacterial isolates (no. 12, 18, 36, 66 & 70) against the different days old larvae of the SBW. The larval mortality was detected as follow: For the 3 day-old larvae, the highest mortality was (90.00%) for the isolate number 12. For the 5 day-old larvae, the highest larval mortality (50.00%) was recorded for the isolates number 12 &18. However, for the 7 day-old larvae, the highest larval mortality (50.00%) was recorded for the isolate number 12. For the 10 day-old larvae, the highest larval mortality (30.00%) was recorded for the isolate number 12 compared to 0.00% for the control. Therefore, the most effective isolate was the isolate no. 12 at all treatments.

Table 2 Virulence of the most affected isolates on different days old larvae of the spiny bollworm

Characterization of most potent bacterial isolate

Characterization of isolated bacteria by light microscope

The gram staining of the most affected bacterial isolates on SPW larvae was done as shown in Fig. 1 which illustrated that all isolates were gram positive bacteria bacilli but the isolate n. 66 was coccobacilli.

Fig. 1
figure1

Gram staining of the most effective bacterial isolates

Molecular characterization (sequence of 16S rRNA gene of DNA)

From the previous illustrated identifications in Figs. 2, 3, 4, 5, the most affected isolate n. 12 of the 70 isolates was identified as Bacillus safensis NBRC 100820 and took accession number MW281809.

Fig. 2
figure2

16S ribosomal RNA gene of Bacillus safensis and its similarity schedule

Fig. 3
figure3

Large subunit partial sequence of 16S ribosomal RNA of Bacillus safensis

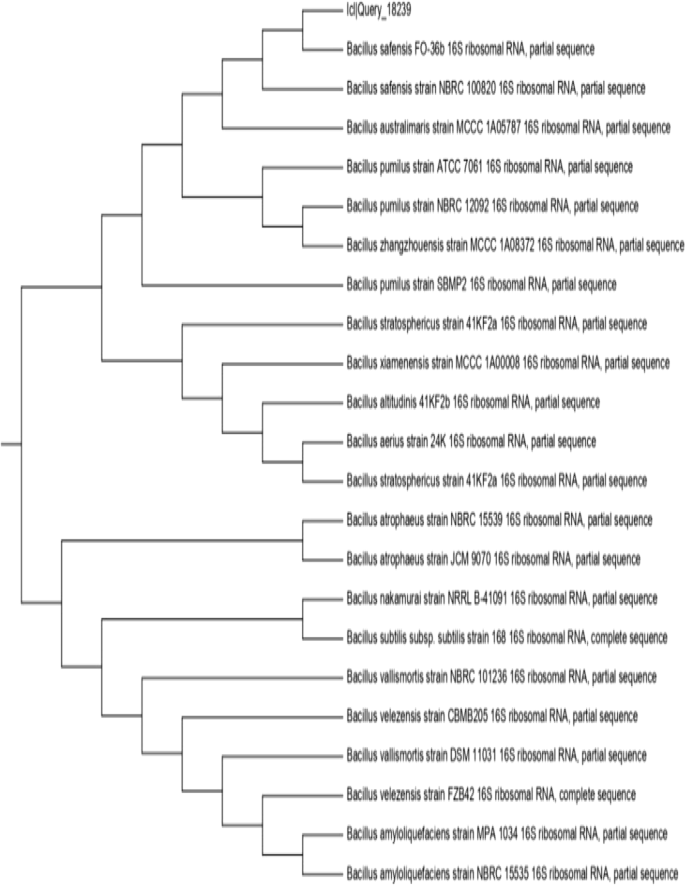

Fig. 4
figure4

Phylogenetic tree of Bacillus safensis compared to closely related organisms in GenBank

Fig. 5
figure5

PCR product of 16S rRNA region of Bacillus safensis bacteria on agarose gel, a isolates no. 12, b isolates no. 18, c isolates no. 6, d isolates no. 66, e isolates no. 70, f: Bacillus safensis (1500 bp), g Ladder (10,000 bp)

Biological studies

Results presented in Table 3 showed that increasing the bacterial concentration caused an increase in mortality percentage of SBW newly hatched larvae. The highest larval mortality percentage was recorded with stock (100%) after 96 h of treatment. The lowest larval mortality percentage recorded 30% with 10–5 concentration.

Table 3 Pathogenicity of tested Bacillus safensis NBRC 100820 concentrations on newly hatched the spiny bollworm larvae

Larval stage

Larval mortality percentage of SPW was 52% after treated with B. safensis NBRC 100820, concentrated at 10–5, compared to 4.00% at the control. The results indicated that there was a highly significant difference between B. safensis NBRC 100820 and the control. It increased the larval duration, reaching 15.5 days compared to 13.50 days at the control. In addition, it decreased the larval weight (0.069 g /larvae) than 0.075 g /larvae at the control (Table 4).

Table 4 Effect of Bacillus safensis NBRC 100820 on immature stages of spiny bollworm

Pupal stage

Data in Table 4 indicated that the effect of B. safensis NBRC 100820 isolate on pupal mortality percentage of SBW was significant than the control. The pupal mortality percentage was 12.0% for treated compared to 3.0% for the control and caused insignificant elongation of the pupal duration of SBW. The pupal duration was 10.5 days against 9.50 days at the control. It caused a significant effect on the SBW pupal weight which was 0.047 g /pupa and 0.055 g/pupa at the control.

Adult stage

Data presented in Table 5 showed that the fed of the SBW newly hatched larvae on the B. safensis NBRC 100820 isolate induced some effects on the adult stage. It caused a significant reduction in adult emergence which was 88.00% compared to 97.00% at the control and decreased the sex ratio (47%: 53%) for female: male compared to (49%: 51%) for the control. Pre-oviposition period of the SBW female was 2.5 days and 2.0 days at the control. According to the oviposition period, there was significant difference between female emerged from treated larvae with B. safensis NBRC 100820 isolate and the control. The oviposition period was 10.0 days at the treatment and 13.0 days at control. B. safensis NBRC 100820 isolate affected insignificantly the post-oviposition period of the SBW and recorded 4.0 days compared to 3.0 days for the control. A significant difference in female and male longevity were found between treatment (16.50 and 15.50 days, respectively) compared to control (18.00 and 16.00 days, respectively). All moths that succeeded to emerge were able to lay a reduced number of eggs, varied significantly (145.00 eggs/female) than 225.00 eggs/female at the control. According to hatchability percent, it reached 96% for untreated larvae and 83% for treated diet by this isolate.

Table 5 Adult stage of the spiny bollworm fed as newly hatched larvae for 24 and 48 h on treated diet by Bacillus safensis NBRC 100820

Discussion

This study revealed that the isolated bacteria, identified as B. safensis, was characterized as gram positive bacteria and short bacilli as a result obtained by (Kothari et al. 2013). B. safensis can grow at 30 °C and the best temperature to give the best effect was at 35 °C. These results are in harmony with different study where B. safensis can grow within temperature range of 10–50 °C (Satomi et al. 2006). This study showed that B. safensis isolated from the cotton plant had a toxic effect on SBW larvae reached (95%) mortality percent. These results agree with many recent studies such as (Lateef et al. 2015) who proved that the larvicidal activity of B. safensis on the anopheline larvae reached to LC50 = 42.19 µg/ml. On the other hand, (Abd-Elazeem et al. 2017) also recorded the highly pathogenic effect of B. pumilus against the SBW larvae that reached 77.37% mortality percent.

Present results showed that B. safensis gave a latent effect on the different stages of the SBW. B. safensis, decreased the larval weight to 0.07 g than 0.08 g at the control and decreased the pupal weight to 0.05 g compared to 0.06 g at the control. The same result was reported by (El-Didamony et al. 2016) who showed that Paenibacillus xylaniticus decreased the larval weight to 0.07 g compared to 0.076 g of the control and decreased the pupal weight to 0.052 g compared to 0.056 g of the control.

Adult emergency percentage decreased as the effect of B. safensis to 88% than 97% at the control which is in harmony with (Abd-Elazeem et al. 2017) who recorded that B. pumilus decreased the adult emergency percentage by 80% than 100% at the control.

Deposition of eggs and its hatchability was also affected by B. safensis as it decreased the number of deposited eggs/females recording 145 eggs/female compared to 225 eggs/female at the control and also decreased the hatchability percentage to 83% compared to 96% at the control. These results totally agree with Hegab and Zaki (2012) who recorded a strong decrease in the number of deposited eggs/females reached to 149 eggs/females compared to 362 eggs/females of the control and a strong decrease in hatchability percentage reached 73% compared with 88% of the control when the larvae bio-assayed by Dipel 2x (B. thuringiensis).

Conclusions

It was concluded that 70 bacterial isolates were isolated from the cotton plant, one of these isolates identified using 16 s rRNA as B. safensis NBRC 100820. Therefore, it can be used in the biological and integrated pest management of E. insulana to reduce the using of insecticides which caused many problems in the ecosystem. Further field studies are needed.
