Pathogenicity of Pakistani isolates of Steinernema bifurcatum and S. affine (Rhabditida: Steinernematidae) in management of stored grain pests Lasioderma serricorne and Tribolium castaneum (Coleoptera: Ptinidae, Tenebrionidae)

Abstract

Background

Stored grain products suffer a considerable economic loss due to insect infestations. The resistance of pests to insecticide, and residues on crops are produced by the application of insecticide. Nowadays, incremental necessity has been occurred to find out alternatives to chemicals. As biological control agents, entomopathogenic nematodes (EPNs) attract attention increasingly in the research area recently.

Results

The aim of the study was to evaluate the pathogenicity of Pakistani isolates Steinernema bifurcatum and S. affine against the stored grain pests, Tribolium castaneum and Lasioderma serricorne, under laboratory conditions. Suspensions of nematodes were applied at 4 different concentrations 0, 50, 100, and 200 IJs/ml and 3 variable temperatures 15, 30, and 45°C. Pathogenicity rate was recorded after 48 h of application. The larval stage is found more susceptible than the adult. At 200 IJs, S. bifurcatum showed high mortality of L. serricorne larva (92%) and T. castaneum larva (93%), whereas S. affine showed 90 and 95% mortality of L. serricorne and T. castaneum larva, respectively, at 200 IJs. The results revealed that both species of EPN were able to control and reproduce on L. serricorne and T. castaneum. Maximum mortality was recorded at 45 °C from S. bifurcatum whereas S. affine at 15 °C.

Conclusions

Therefore, S. bifurcatum and S. affine could be suggested as a biological control agent for hot and cold climatic zones, respectively.

Background

Grain protectants and fumigants are widely used in warehouses and storage facilities for stored grain protection, especially in the case of insects and mites (Zettler and Arthur, 2000). However, several stored product insect species have developed a significant level of resistance to chemical residual insecticides and fumigants (Nguyen et al. 2015). The cigarette beetle (Lasioderma serricorne [Fabricius], Coleoptera, Ptinidae) is a damaging pest and known to effectively grow and infest the stored product mainly tobacco (Dimetry et al. 2004). In the international market, the production of chemical residue-free tobacco was in demanded that increase the studies of L. serricorne (Silva et al. 2009). The red flour beetle (Tribolium castaneum) [Herbst] (Coleoptera: Tenebrionidae) is a significant worldwide agricultural problem. It is classified as a secondary pest because adults and immature stages of red flour beetle feed on grains previously cracked, broken, or damaged by primary pests the insect’s ability to survive in undamaged grains. Stored product insects can survive on small amount of food that accumulate in inaccessible places such as cracks and crevices, under perforated floors, and inside machinery and may move from these refugees into packed and bulk stored products (Campbell et al. 2004). In addition to direct consumption of the product, stored insect pests inflict their damages on stored products through excretion, exuviations, dead bodies, and their own existence in the product, which is not commercially desirable.

Entomopathogenic nematodes (EPNs) possess incredible potential as a biological control agent of economically important insect pests (Shapiro-Ilan et al. 2016). EPNs have been recognized as one of the most effective, safe, and non-polluting bio-control agents for the control of insect pests that cause serious damage to major crops and fruit trees. These nematodes have already been effectively used to manage various insect pests of economically important crops (Campos-Herrera, 2015). Salma et al. (2020) reported S. bifurcatum for the control of against lesser grain borer and confused flour beetle under laboratory conditions.

In this study, the pathogenicity of the Pakistani isolates of Steinernema bifurcatum and S. affine was evaluated at different concentrations and temperatures in the management of stored grain pests Lasioderma serricorne and Tribolium castaneum under laboratory conditions.

Methods

Target pests

Tribolium castaneum and L. serricorne (larvae and adults) were provided by the Pakistan Agriculture Research Council, University of Karachi, Karachi, Pakistan, and maintained in a 1000-ml glass jar containing 500 g fresh wheat flour and coarsely ground wheat, respectively, and then incubated in a rearing cage (200 × 120 × 350 cm) at 35±2°C with 12:12-h day to night cycle.

Entomopathogenic nematodes

Entomopathogenic nematodes (EPNs), Steinernema bifurcatum (Shahina et al. 2014) and S. affine (Bovien 1937), were obtained from stock cultures of NNRC, University of Karachi, Karachi, Pakistan. The nematodes were cultured in the larvae of the greater wax moth, Galleria mellonella L. Two batches of 15 wax moth larvae were placed on each Petri dishes lined with a filter paper. The larvae in dishes were individually inoculated with approximately 1000 infective juveniles (IJs) of the 2 EPN species in 1 ml of distilled water. Sealed Petri dishes with Parafilm were placed in an incubator at 15 and 45°C for S. affine and S. bifurcatum, respectively. After incubation for 48 h, the infected wax moth larvae were collected from the Petri dishes and placed on modified white traps at respected temperatures (White, 1927). After 2 days, the nematodes moved from the G. mellonella cadavers to the water. Harvested juveniles were kept at 16°C for less than 2 weeks before the tests.

Pathogenicity test

Batches of 25 insects from each of T. castaneum and L. serricorne (larvae and adults) were placed in a 9-cm plastic Petri dish bottomed with moistened filter paper (Whatman No.1) with each batch separately with nematode suspension 100, 150, and 200 IJs in 1 ml with few drops of 2% Tween 80 as an emulsifier and sealed with Parafilm incubated at the temperatures 15, 30, and 45°C. Mortality was determined after 48 h and control with 1 ml of distilled water without nematodes. Each treatment was replicated 5 times and the entire experiments were repeated 3 times. The cause of mortality was confirmed by emergence of IJs from dead cadaver.

Statistical analysis

The pathogenicity of EPNs was statistically validated by a one-way ANOVA (SAS Institute, 2002). Differences at the P < 0.05 level were considered statistically significant under Duncan’s multiple range test (Duncan, 1955).

Results

Pakistani isolates of S. bifurcatum and S. affine were evaluated for pathogenicity of T. castaneum and L. serricorne (larvae and adults each) at different concentrations (Fig. 1) and temperatures (Fig. 2) by filter assay in laboratory conditions.

Fig. 1
figure1

Percentage mortality of insects at three different concentrations and temperatures inoculated by Steinernema bifurcatum

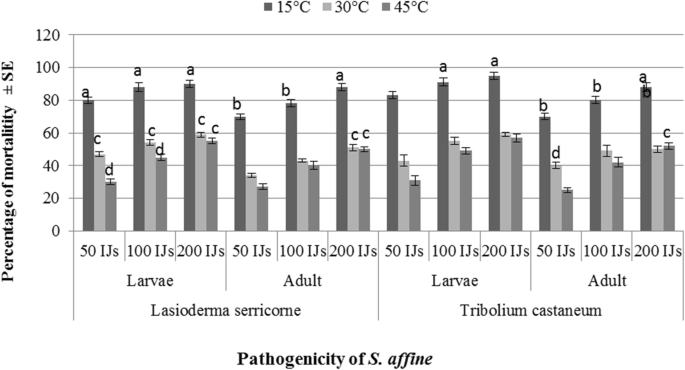

Fig. 2
figure2

Percentage mortality of insects at three different concentrations and temperatures inoculated by S. affine

Pathogenicity of Steinernema bifurcatum

Significant differences in mortality rates were detected among the insect tested (ANOVA: F = 6.56; df = 3, 12; P < 0.05), and the nematode concentration showed significant differences (ANOVA: F= 4.5; df = 3, 12; P < 0.05). S. bifurcatum caused a high mortality at 200 IJs of L. serricorne larva (ANOVA: F =0.051; df = 3, 8; P < 0.05), L. serricorne adult (ANOVA: F=0.069; df = 3, 5; P < 0.05), T. castaneum larva (ANOVA: F= 0.188; df = 3, 8; P < 0.05), and T. castaneum adult (ANOVA: F= 0.034; df = 3, 8; P < 0.05) as compared to 50 and 150 IJs. All insects showed significant mortality rates with 200 IJs of S. bifurcatum. Both insects’ larvae showed above 90% mortality with the concentration @ 200IJs (Fig. 1). The nematode concentration showed a significant variance (ANOVA: F= 0.311; df = 3, 5; P < 0.05) as compared to control treatment. Insect pests, L. serricorne and T. castaneum (larvae and adult each), were also exposed to 3 different temperatures 15, 30, and 45°C. Significant differences in mortality were detected among the insects tested at different temperatures. S. bifurcatum showed the highest mortality that was 92 and 88% of L. serricorne larvae and adult, respectively, at 45°C (ANOVA: F= 9.2; df = 3, 20; P < 0.05) and T. castaneum larvae and adult showed 95 and 93%, respectively (ANOVA: F= 9.2; df = 3, 20; P < 0.05). S. bifurcatum showed less significant at 15°C where 55% and 50% larval mortality of L. serricorne and T. castaneum, respectively, and 62% and 58% mortality of L. serricorne and T. castaneum adults, respectively, were recorded at 200 IJs (Fig. 1).

Pathogenicity of Steinernema affine

Significant differences in mortality were detected among the insects tested (ANOVA: F= 0.015; df = 3, 8; P < 0.05) and among concentrations (ANOVA: F = 0.011; df = 3, 5; P < 0.05). S. affine significant difference showed a high mortality rate 90% of L. serricorne larvae at the concentration of 200IJs (ANOVA: F= 4.2, df = 3, 12; P < 0.05) and L. serricorne adults showed 88% mortality (ANOVA: F=0.03, df= 3, 8; P < 0.05) (Fig. 2). There was a non-significant difference at concentrations of 50 and 100 IJs of S. affine which caused 30% and 45% larval mortality of L. serricorne and 27% and 40% adult mortality of L. serricorne, respectively. S. affine showed a significant difference against T. castaneum larvae at the concentration of 200 IJs (ANOVA: F= 0.39; df = 3, 8; P < 0.05); T. castaneum adult less significant at 50 and 100 IJs (ANOVA: F= 0.098; df = 3, 8; P < 0.05). S. affine was also tested at the 3 different temperature degrees 15, 30 and 45°C. Significant differences in mortality rates were also found among the tested temperature degrees (ANOVA: F = 0.011; df = 4, 10; P < 0.05) at 15, 30, and 45°C. S. affine showed 90% mortality rate of L. serricorne larvae at 15°C (ANOVA: F= 10.8; df = 3, 20; P < 0.05). There was a non-significant difference in case of adults of L. serricorne at 30 and 45°C (ANOVA: F= 10.8; df = 3, 20; P < 0.05), i.e., 59 and 55% mortality, respectively. Significant differences in mortality rates were detected among the T. castaneum larvae and adults (ANOVA: F= 15.8; df = 3, 8; P < 0.05). S. affine showed 95% mortality of T. castaneum larvae at 15°C (ANOVA: F= 10.8; df = 3, 20; P < 0.05) whereas 57 and 52% at 30 and 45°C, respectively. There was a non-significant difference (ANOVA: F= 15; df = 3, 8; P < 0.05) in case of adults of T. castaneum 50 and 52% at 30 and 45 °C, respectively.

Discussion

Obtained results indicated that the larval stage was more susceptible than the adults. Susceptibility of the 2 pests varied at different EPN species. Precisely, the pests’ larvae were more susceptible to EPN infection than adults. In this regard, several researches had similar results and confirmed these findings (Shapiro-Ilan et al. 2002 and Shahina and Salma, 2010). This has been attributed to the structural and behavioral characteristics of the different life stages. For instance, adult beetles are protected by the hard, chitinous exoskeleton, which acts as a mechanical hurdle to the invasion of EPNs, in contrast to the soft body of the larvae, which is more easily penetrable (Shahina et al. 2017).

Bedding et al. (1983) suggested testing EPNs at a concentration of 100 IJs/insect as a preliminary assessment of host susceptibility and to begin the process of selecting nematode species or strains as a potential biological control agent. Shahina and Salma (2010) tested the susceptibility of Tribolium castaneum (Herbst) to 7 entomopathogenic isolates from Steinernematidae and Heterorhabditidae and found promising results. Shahina et al. (2017) also reported promising results for the control of stored grain pests by EPNs. Various studies have also been conducted for the evaluation of the virulence of EPNs against the confused flour beetle, Tribolium confusum (Rumbos and Athanassiou, 2012). Larvae of T. castaneum were highly susceptible to 3 steinernematid species, i.e., S. feltiae, S. carpocapsae, and S. riobrave, whereas pupae and adults’ susceptibility was species dependent (Ramos-Rodríguez et al., 2006a, b). Different EPN species have also been evaluated against S. oryzae, with variable success (Shahina and Salma, 2010 and Barbosa-Negrisoli et al. 2013). Most studies suggest that S. oryzae adults are not highly susceptible to EPNs, with mortality levels of 9, 26, or 40% (Ramos-Rodríguez et al., 2006a, b). In contrast, Laznik et al. (2010) noted high mortalities (40–72%) at the highest nematode suspension concentration (2000 IJs/insect) of 3 S. feltiae strains, whereas Shahina and Salma (2010) reported increased susceptibility of S. oryzae adults (65–72%) to 6 Pakistani EPN strains. S. bifurcatum (Shahina et al. 2014) and S. affine isolated from Gilgit district Pakistan and reported by Tabassum et al. (2016).

Conclusion

The present study showed that the EPNs, S. bifurcatum and S. affine, had potentials against L. serricorne and T. castaneum (larvae and adult) under laboratory conditions. S. bifurcatum and S. affine showed potentials at hot and cold climates, respectively. Further investigations are required for the management of stored grain pests in stored product arenas.

Availability of data and materials

Not applicable

References

  1. Barbosa-Negrisoli CRDC, Negrisoli ASJ, Bernardi D, Garcia MS (2013) Activity of eight strains of entomopathogenic nematodes (Rhabditida: Steinernematidae, Heterorhabditidae) against five stored product pests. Exp Parasitolo 134(3):384–388. https://doi.org/10.1016/j.exppara.2013.03.008

    Article  Google Scholar

  2. Bedding RA, Molyneux AS, Akhurst RJ (1983) Heterorhabditis spp., Neoaplectana spp. and Steinernema kraussei: interspecific and intraspecific differences in the infectivity for insects. Exp Parasitol 55(2):249–257. https://doi.org/10.1016/0014-4894(83)90019-X

    CAS  Article  PubMed  Google Scholar

  3. Bovien P (1937) Some types of association between nematodes and insects. Videnskabelige Meddelelser Fra Dansk Naturhistorisk Forening Bd 101:1–114

  4. Campbell JF, Arthur FH, Mullen MA (2004) Insect management in food processing facilities. Adv Food Nutrit Res 48:239–295. https://doi.org/10.1016/S1043-4526(04)48005-X

    Article  Google Scholar

  5. Campos-Herrera R (2015) Nematode pathogenesis of insects and other pests: ecology and applied technologies for sustainable plant and crop protection. Springer International Publishing, Switzerland. https://doi.org/10.1007/978-3-319-18266-7

    Book  Google Scholar

  6. Dimetry NZ, Barakat A, AEl Metwally HE, Risha EM, Abd El Salam AME (2004) Assessment of damage and losses in some medicinal plants by the cigarette beetle (Lasioderma serricorne F.). Bullet National Res Cent Egypt 29:325–332

    Google Scholar

  7. Duncan DB (1955) Multiple range and multiple F-test. Biometrics. 11(1):1–41. https://doi.org/10.2307/3001478

    Article  Google Scholar

  8. Laznik Z, Tóth T, Lakatos T, Vidrih M, Trdan S (2010) The activity of three new strains of Steinernema feltiae against adults of Sitophilus oryzae under laboratory conditions. J Food Agric Environ 8:150–154

    Google Scholar

  9. Nguyen TT, Collins PJ, Ebert PR (2015) Inheritance and characterization of strong resistance to phosphine in Sitophilus oryzae (L.). Plos One. 10 (4): Odendaal, D, Addison, MF, Malan AP (2016) Entomopathogenic nematodes for the control of the codling moth (Cydia pomonella L.) in field and laboratory trials. J Helminthol 90:615–623

    Google Scholar

  10. Ramos-Rodríguez O, Campbell JF, Ramaswamy SB (2006a) Pathogenicity of three species of entomopathogenic nematodes to some major stored product insect pests. J Stored Prod Res 42(3):241–252. https://doi.org/10.1016/j.jspr.2004.08.004

    Article  Google Scholar

  11. Ramos-Rodríguez O, Campbell JF, Ramaswamy SB (2006b) Pathogenicity of three species of entomopathogenic nematodes to some major stored product insect pests. J Stored Product Res 42(3):241–252. https://doi.org/10.1016/j.jspr.2004.08.004

    Article  Google Scholar

  12. Rumbos CI, Athanassiou CG (2012) Insecticidal effect of six entomopathogenic nematode strains against Lasioderma serricorne (F.) (Coleoptera: Anobiidae) andTribolium confusum Jacquelin du Val (Coleoptera: Tenebrionidae). J. Stored Prod Res 50:21–26. https://doi.org/10.1016/j.jspr.2012.02.003

    Article  Google Scholar

  13. Salma J, Tabassum AK, Samreen K (2020) Biocontrol potential of entomopathogenic nematode species against Tribolium confusum (Jac.) (Coleoptera: Tenebrionidae) and Rhyzopertha dominica (Fab.) (Coleoptera: Bostrichidae) under laboratory conditions. EJBPC 30:1–6

    Google Scholar

  14. Shahina F, Salma J (2010) Laboratory evaluation of seven Pakistani strains of entomopathogenic nematode against a stored product insect pest, rice weevil (Sitophilus oryzae L.). Pak J Nematol 28:295–305

    Google Scholar

  15. Shahina F, Salma J, Christos IR, Christos GA (2017) Control of stored grain pests by entomopathogenic nematodes. Biocontrol agents, entomopathogenic and slug parasitic nematodes (Eds.) Elagawad, Tariq and James. 629pp. https://doi.org/10.1079/9781786390004.0000

  16. Shahina F, Xun Y, Lihong Q, Richou H, Mehreen G, Tabassum AK, Salma J (2014) A new entomopathogenic nematode, Steinernema bifurcatum n. sp. (Rhabditida: Steinernematidae) from Punjab, Pakistan. Nematol 821-836.

  17. Shapiro-Ilan DI, Mizell RF, Campbell JF (2002) Susceptibility of the plum curculio, Conotrachelus nenuphar, to entomopathogenic nematodes. J Nematol 34(3):246–249

    PubMed  PubMed Central  Google Scholar

  18. Shapiro-Ilan DI, Cottrell TE, Mizell RF, Horton DL (2016) Curative control of the peachtree borer using entomopathogenic nematodes. J Nematol 48:170–6

  19. Silva CAD, Zanuncio TV, Cunha GG, Castro AA, Canevari GC, Serrão JE (2009) Development and survival of nymphs of Podisus nigrispinus (Heteroptera: Pentatomidae) fed with caterpillars of Cholsyne lacinia saundersii (Lepidoptera: Nymphalidae). Braz Arch Biol Technol 52(1):105–109. https://doi.org/10.1590/S1516-89132009000100014

    Article  Google Scholar

  20. Statistical Analysis System (SAS) Institute (2002) SAS/STAT User’s Guide. Version 8, 6th Edition. Cary, SAS Institute. p. 112

  21. Tabassum KA, Shahina F, Nasira K, Erum YI (2016) Description of six new species of Oscheius, Andrassy, 1976 (Nematoda: Rhabditida) from Pakistan with a key and diagnostic compendium of the genus. Pak J Nematol. 34:109–161

    Article  Google Scholar

  22. White GF (1927) A method for obtaining infective nematode larvae from culture. Science. 66(1709):302–303. https://doi.org/10.1126/science.66.1709.302-a

    CAS  Article  PubMed  Google Scholar

  23. Zettler JL, Arthur FH (2000) Chemical control of stored product insects with fumigants and residual treatments. Crop Protection. 19(8-10):577–582. https://doi.org/10.1016/S0261-2194(00)00075-2

    CAS  Article  Google Scholar
