Selection of highly virulent entomopathogenic fungal isolates to control the greenhouse aphid species in Iraq
Egyptian Journal of Biological Pest Control volume 28, Article number: 71 (2018)
Aphids are one of the major insect pests of greenhouses and field crops worldwide. Several species of entomopathogenic fungi (EPF), including Lecanicillium spp. Beauveria bassiana, Isaria fumosorosea and Metarhizium anisopliae, have been developed commercially to control aphid species. However, there are no commercial products based on EPF that have been registered in Iraq. This study, therefore, was conducted to evaluate the virulence of four isolates of EPF, including, B. bassiana, Lecanicillium lecanii, M. anisopliae and Chaetomium globosum to select the highly virulent ones against the greenhouse aphids. Although the isolate of L. lecanii had the highest virulence against all tested aphid species in the laboratory bioassay, Myzus persicae Sulz and Aphis gossypii Gloy were more susceptible than Aphis fabae and Macrosiphum euphorbiae to infection with L. lecanii. Mortality caused by L. lecanii 7 days post-treatment with 108 conidia ml−1 was 100%. Further experiments in the greenhouses showed that L. lecanii significantly reduced the density of both M. persicae and A. gossypii 5 days after fungal applications. This isolate shows a promise for development of an alternative control agent against M. persicae and A. gossypii in Iraq.
Vegetable production in greenhouses is very common in Iraq, providing plentiful food and ornamental crops; however, this allows for a rapid spread of insect pests and microbial diseases. Aphids (Hemiptera: Aphididae) are some of the most serious and damaging insect pests, because they cause direct damage by feeding directly on crops and indirectly damage them through virus transmission (Blackman and Eastop 2007). In Iraq, aphids seriously impact several greenhouse crops, especially cucumber, eggplant, tomato and potato (Tarek 2013). The melon aphid (Aphis gossypii), the green peach aphid (Myzus persicae), the potato aphid (Macrosiphum euphorbiae) and the black bean aphid (Aphis fabae) are four of the most common and important aphid pest species of greenhouse crops in Iraq (Jasman et al. 2016). All these aphid species are extremely polyphagous and vectors of large numbers of plant viruses (Chan et al. 1991). Chemical insecticides are the most common control method of aphid species, but their use results in insecticide residues, high levels of insecticide resistance and high costs (Bielza 2008; Gao et al. 2012). These difficulties in using synthetic insecticides to manage aphid populations have led to a growing interest in novel and effective alternatives like biological control including the use of entomopathogenic fungi (EPF).
There is an interest in the commercial development of EPF (Milner 1997) because they have the capability to infect aphids under natural conditions (Latgé and Papierok 1988; Hajek and St Leger 1994). There are about 60 biocontrol products, including 38 species or varieties of EPF, which have been developed and used as biocontrol agents against insect pests around the world (Faria and Wraight 2007). However, there are no commercial microbial pesticides based on EPF registered to control aphids in Iraq. Natural epizootics of aphids are usually caused by entomophthoralean fungi such as Pandora neoaphidis (Roy et al. 2005) as well as by hypocrealean fungi such as Lecanicillium spp. and Beauveria bassiana (Milner 1997; Li and Sheng 2007).
Many research studies have been conducted on the potential control of aphids with EPF. Kim and Kim (2008) tested the efficacy of six isolates of EPF collected in Korea, including B. bassiana, Isaria fumosorosea and Lecanicillium attenuatum against the cotton aphid, A. gossypii. An isolate of L. attenuatum CS625 had the highest virulence against A. gossypii. Various isolates of EPF such as Lecanicillium lecanii, Isaria farinosus, B. bassiana, Metarhizium anisopliae, Cordyceps scarabaeicola and Nomuraea rileyi were screened for controlling A. gossypii and M. persicae. Among the tested ones, L. lecanii showed the highest virulent pathogenicity for both A. gossypii and M. persicae (Vu et al. 2007). In addition, B. bassiana and I. fumosorosea showed high efficacy against Phorodon humuli (Schrank) (Dorschner et al. 1991), Aphis craccivora Koch and Bemesia tabaci (Gennadius) (Zaki 1998). Mesquita et al. (1996) reported that different species/isolates of EPF induced similar mortalities in the Russian wheat aphid (Diuraphis noxia) even though these isolates were from different host insects. In contrast, Vandenberg (1996) found that isolates of any individual fungal species had different efficacy against the same cohort of the host aphid.
Despite the many studies in other countries around the world, there are few studies on the control of aphids with EPF in Iraq. Thus, the objective of this study was to evaluate different isolates of Iraqi EPF that originated from different insect hosts, against the greenhouse aphids in the laboratory. Based on the efficacy results of the laboratory trials, the best isolate was evaluated against A. gossypii and M. persicae on cucumber in greenhouse trials.
Materials and methods
Colonies of M. persicae, M. euphorbiae, A. gossypii and A. fabae were collected initially from the greenhouses at the Faculty of Agriculture, University of Kufa, Iraq, in 2016. The aphids were identified under a light compound microscope, using polyphagous aphid keys (Blackman and Eastop 2000). Aphid cultures were established on their main host plants (M. persicae on cucumber, A. gossypii on melon, A. fabae on beans and M. euphorbiae on potato) in 45 × 45 × 45 cm cages at 23 ± 2 °C and with 16:8-h daily photoperiod for several generations. Plants were replaced every 2 weeks by healthy 4–5-week-old plants. To produce even-aged nymphs, adult aphids were transferred onto 2-week-old cucumber leaves with a fine camel hair brush and maintained on the plant for 6 h. The adults were then removed and the newborn nymphs were left to develop on the cucumber leaf until use.
Source and preparation of fungal isolates
Four isolates of EPF (Table 1) were used in this study. Isolates were never isolated more than three times from the source and culture methods followed (Vu et al. 2007). The EPF were cultivated on potato dextrose agar (PDA) or Sabouraud’s agar at 25 °C. Aerial conidia were harvested from 10-day-old cultures by adding 12 ml of 0.02% Tween 80 to culture agar plates and gently scraping the surface of the cultures with a sterile inoculating loop to dislodge the conidia from the surface of the agar plates. The conidial suspension was pipetted from the plate and filtered through three layers of cheesecloth. The number of conidia in the suspension was determined using a haemocytometer (Neubauer improved, Superior Marienfeld, Germany). The resulting suspension was diluted to the desired concentrations with 0.02% Tween 80 (BDH Chemicals Ltd., Poole, UK) as required. The viability of the conidia was determined by spraying 0.1 ml of 1 × 106 conidia ml−1 on a sterile Petri dish with 1.5% Sabouraud dextrose agar (SDA). The dishes were sealed by a parafilm and incubated at 20 °C, 90 ± 2% RH and a photoperiod of 16:8 (L:D) h. After 24 h, the number of germinated spores per 100 spores of each plate was assessed under the microscope (400× magnification). Germination was considered positive when the length of the germ tube was at least half the spore length. The viability exceeded 90% for all isolates.
Obtaining a uniform age of aphids
In order to produce even-aged third instar nymphs of each aphid species for use directly in all bioassays, adult aphids were transferred from the stock cultures onto 3-week-old cucumber (20 adults per plant) using two 3-cm-diameter clip-cages and were allowed to produce nymphs for 12 h in a growth chamber at 20 °C, 75 ± 2% RH and a photoperiod of 16:8 (L:D) h. The adults were then removed and the offspring counted (50 nymphs were retained per plant) and allowed to develop on the plants for four additional days before the beginning of each experiment. If the number of nymphs was less than 50 per plant, the adults were kept on the leaves for another 12 h until they produced a total of 50 nymphs.
Two millilitres of conidia suspension (107 conidia ml−1) of each isolate was applied by a handheld sprayer onto the 4-week-old potted cucumber, which contained 50 third instar nymphs. A formulation of B. bassiana (Naturalis-L® by Fargro Ltd., UK) was included in the tests as a reference. Controls were sprayed with sterile 0.001% aqueous Tween 80 without conidia. The cucumber plants were air-dried on a bench top at room temperature for 1 h. Each cucumber leaf was cut from the treated cucumber plant and was placed on a 9-cm Petri dish that had a dampened filter paper on the bottom and 1-cm hole covered with nylon mesh on the lid. The Petri dishes were randomly placed in Plexiglas cages (35 × 40 × 35 cm) and were maintained at 20 ± 1 °C, ≥ 90% RH and a photoperiod of 16:8 (L:D) h. Aphid mortality was recorded after 1, 3, 5 and 7 days. Dead aphids were surface sterilised by rinsing twice with 70% ethanol for 30 s and then with sterilised distilled water and thereafter placed on water agar (3 g of agar/l of water) in Petri dishes for 5 days to confirm infection by EPF (Mohammed and Hatcher 2016). A cadaver was regarded as dead from infection by these fungi if the conidia were recovered from it. The entire experiment was repeated three times, giving a total of 30 replicates per treatment for each aphid species.
Multiple-dose bioassays of selected isolates against aphid nymphs
L. lecanii was selected, based on results of the single-dose screen, for more detailed multiple-dose bioassays against M. persicae and A. gossypii (highly susceptible aphid species). This experiment followed the method described in the ‘Screening bioassay’ section, except that the suspensions of L. lecanii sprayed onto cucumber plants contained different concentrations of conidia (1 × 104, 1 × 105, 1 × 106, 1 × 107, or 1 × 108 conidia ml−1). Aphid mortality rate was recorded after 1, 3, 5 and 7 days. The entire experiment was repeated twice, giving a total of 20 replicates per treatment for each aphid species.
Efficacy of L. lecanii against M. persicae and A. gossypii on cucumber in the greenhouse
L. lecanii was identified as the most virulent EPF in the laboratory and was selected for further assessment in a greenhouse experiment on cucumber plants infested with M. persicae or A. gossypii. The experiment was carried out in 16 4 × 6 m greenhouses from 6 February until 10 May 2017 at the Faculty of Agriculture, University of Kufa, Iraq. The treatments were as follows: (1) plants infested with M. persicae and exposed to L. lecanii: 20 ml per plant containing 1 × 108 conidia ml−1, applied using a Diaphragm CP 15 sprayer (Agratech NW Ltd., Waterfoot, Lancashire, UK); (2) plants infested with A. gossypii and exposed to L. lecanii similar to (1); (3) plants infested with M. persicae and exposed to 20 ml of sterile water and 0.02% Tween 80 per plant (control); and (4) plants infested with A. gossypii and exposed to water and Tween 80 similarly to (3) (control). Each treatment was replicated four times in a randomised complete block design. Each of the four blocks included four different treatment plots, and each plot (consisting of 40 plants) was contained in one greenhouse. The average high and low daily temperature and relative humidity were recorded using a data logger (Tinytag Explorer 4.8, Gemini Data Loggers (UK) Ltd., Chichester, UK), and these were 28.9 ± 3.2 °C and 14.2 ± 2.1 °C, and 93.5 and 40.8% RH, respectively, during the experiment.
Statistical analyses were carried out using GenStat (version 16; VSN International, Hemel Hempstead, UK). Normality of data distribution was estimated using a Shapiro–Wilk test (W test). The data were transformed using arcsine square root when it was necessary to meet the assumption of normality. For the screening test, aphid mortality data were corrected for natural death in the control using Abbott’s formula (Abbott 1925), then analysed using a generalised linear model with binomial errors. The effect of conidial concentration on the mortality of M. persicae and A. gossypii was analysed separately for each aphid species using a generalised linear model with binomial errors. For the greenhouse experiment, one-factor repeated measurement analysis ANOVA was used to determine the effect of L. lecanii against each aphid species. Mean comparisons were performed using Tukey’s test at 5% level of significance (P < 0.05).
Results and discussion

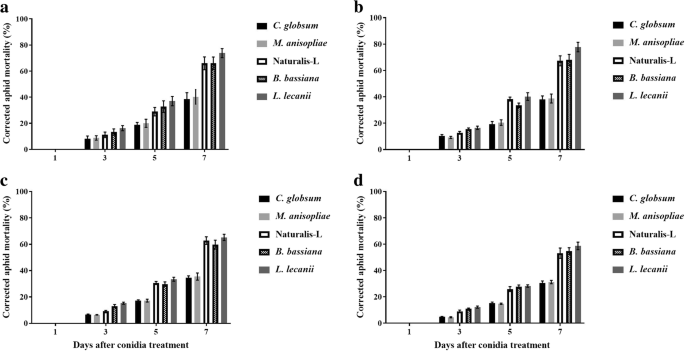

The results of a bioassay to determine the virulence of various EPF at 107 conidia ml−1 against M. persicae, A. gossypii, A. fabae and M. euphorbiae are depicted in Fig. 1. Corrected mortality varied according to the fungal isolate (F (4,140) = 95.72; P < 0.001) and aphid species (F (3,140) = 69.59; P < 0.001). L. lecanii originally isolated from an aphid was the most virulent one, among those tested, with the others being collected from the sunn pest, beetles and moths (Table 1). For control of M. persicae, L. lecanii caused 80% mortality in 7 days, while the other fungal isolates including commercially registered isolate B. bassiana ATCC 74040 attained 35–67% (Fig. 1a). For A. gossypii control, L. lecanii induced 82% corrected mortality in 7 days, whereas the other fungal strains induced a corrected mortality ranged between 50 and 72% at the same time (Fig. 1b). For A. fabae and M. euphorbiae controls (Fig. 1c, d), the virulence of L. lecanii, B. bassiana and Naturalis-L were insignificantly different (P ˃ 0.05), but were significantly higher than those of M. anisopliae and C. globosum (P < 0.05). Aphid mortality rate in control treatments ranged between 4 and 7%.
In this study, L. lecanii was originally isolated from an aphid host, supporting the hypothesis that fungal strains isolated from closely related insect hosts would have higher efficacy than isolates from phylogenetically distant hosts. This confirms the findings of Vu et al. (2007) who reported that the virulence of strains L. lecanii 41185 and 6541, which were originally isolated from aphid hosts, were significantly higher than those of the other tested fungi for both M. persicae and A. gossypii.
To be a successful candidate for use in greenhouse crops, isolates should provide effective control of multiple aphid species. The results of the present study indicated that efficacy of EPF depends not only on the tested isolate but also on the target aphid species, where M. persicae and A. gossypii were more susceptible than A. fabae and M. euphorbiae to infection with tested isolates under laboratory conditions (Fig. 1). Similarly, Harper and Huang (1986) found that V. lecanii caused a 60–90% mortality of Aphis pisum, 32–85% of M. dirhodum, that of M. persicae by 50–100% and that of Trialeurodes maculate by 37–75%. In addition, Helen et al. (2003) reported that A. fabae was more susceptible than M. persicae to the infection with the same fungus in the same environmental conditions.
Effect of conidial concentration on mortality of M. persicae and A. gossypii
L. lecanii was chosen to examine the effect of various conidial concentrations on the mortality rate of M. persicae and A. gossypii. The results showed that conidial concentration of L. lecanii significantly affected the mortality rate of both aphid species 7 days post-spraying (M. persicae F (3,105) = 134.05; P < 0.001; A. gossypii F (3,105) = 124.37; P < 0.001). The control values for aphids treated with 1 × 108 conidia ml−1 were much higher than those of 1 × 107, 1 × 106, 1 × 105 and 1 × 104 conidia ml−1 for both M. persicae and A. gossypii (Fig. 2). The interactions between fungus concentration and time after application were not significantly different (P ≥ 0.05). Aphid mortality rate in control treatments ranged between 4 and 7.6%.
It is very important to determine the optimal concentration of fungal conidia for spray applications to reduce the overall cost of insect pest control while achieving a high level of control. The results of the present study showed that 1 × 108 conidia ml−1 was the recommended dosage to spray to control aphids under greenhouse or field conditions. The results obtained in the present study are consistent with those of Vu et al. (2007) who reported that the control values for M. persicae treated with 1 × 108 conidia ml−1 of L. lecanii 41185 were much higher than those of 1 × 106, 1 × 105 and 1 × 104 conidia ml−1.
Efficacy of L. lecanii against M. persicae or A. gossypii in the greenhouse
Before exposure to L. lecanii, there was insignificant difference in the number of aphids in cucumber plants infested with either M. persicae or A. gossypii in all greenhouses (F (1,48) = 0.81; P = 0.544). Plants that were treated by L. lecanii showed a significant reduction in the number of M. persicae (F (1,48) = 44.24; P < 0.001) and A. gossypii (F (1,48) = 41.83; P < 0.001) between 5 and 20 days post-spraying, compared with the control treatment (Fig. 3).
The greenhouse results further supported the efficacy of L. lecanii in the laboratory, resulting in a reduction of aphid population for both A. gossypii and M. persicae significantly higher than the controls. The significant reduction in aphid populations was not evident until 5 days post-treatment; it lasted for a week, and then, aphid populations began increasing again. This time lag in the onset of insect mortality was similar for other studies with L. lecanii or other isolates of EPF (Kim et al. 2007; Wu et al. 2013). There are two possible reasons to explain the short-term effect of fungal treatment in reducing aphid populations in the greenhouse. One of the most important limitations in the use of EPF for the control of insect pests, which explain the short-term effect of fungal treatment in reducing aphid populations under greenhouse conditions, is that poor environmental conditions such as high or low temperature, UV light, rainfall and relative humidity during the treatment period are known to affect spore germination and penetration of the aphid host by entomopathogenic fungi (Mohammed and Hatcher 2016) and/or the persistence of the conidia applied on foliage (Maniania et al. 2003). For example, Daoust and Pereira (1986) reported that conidia of M. anisopliae and B. bassiana persisted for only 12 days on cowpea leaves after application. In addition, Shrestha et al. (2015) found that the cumulative percentage decline in the conidial population of B. bassiana was (92%) within 11 days post-spraying. Although persistence was not tested in the present study, obtained results suggested that L. lecanii was able to persist for 2 weeks in the greenhouse after spraying. Based on these observations, application of L. lecanii every 2 weeks could provide a potential control of both A. gossypii and M. persicae populations on greenhouse crops.
Obtained results showed that an Iraqi domestic isolate of L. lecanii was the most virulent to both A. gossypii and M. persicae populations in the laboratory and under greenhouse conditions when applied at a rate of 1 × 108 conidia ml−1. These results suggested that this isolate had the potential for development as a microbial biopesticide and can be included in integrated pest management programs designed for controlling the populations of green peach and cotton aphids in Iraqi agricultural systems.
