Phylogenic and antagonistic characteristics of novel Bacillus cereus isolates against desert locust, Schistocerca gregaria Forskal (Orthoptera: Acrididae)
© The Author(s) 2018
- Received: 29 July 2017
- Accepted: 28 May 2018
- Published: 12 June 2018
Thirty bacterial strains were successfully isolated from dead/diseased nymphs of the desert locust Schistocerca gregaria Forskal (Orthoptera: Acrididae) occurred in rearing cages at Locust and Grasshoppers Research Department, Plant Protection Research Institute, Agricultural Research Center, Dokki, Giza, Egypt. Among them, two isolates, DL3 and DL4, showed a high biocidal activity against locust at preliminary bracketing bioassay. Molecular identification of the two bacterial isolates was carried out by sequencing the 16S rRNA gene and nucleotide blast of international GenBank, and the results showed that DL3 isolate was Bacillus cereus (KY630646) and DL4 isolate was Bacillus cereus (KY630647) with a 100% similarity with Bacillus cereus strain SZAN-2 (GU222440) and Bacillus cereus strain KPRR3 (KY556439), respectively. The insecticidal activity of both isolates against locust nymphs using leaf dipping and per os techniques proved that DL4 isolate was more efficient than DL3 and both of them have the potential to be successful biocidal agents to control desert locust.
- Schistocerca gregaria
- Biological control
- Entomopathogenic bacteria
- 16S rRNA genes sequencing
Locusts are known as one of the most worldwide destructive pests, causing severe agriculture disaster due to the nature of damage caused by locust swarm (Lecoq 2001). Conventional control of locust is mainly relied on chemical insecticides which are effective in suppressing the locust swarm. However, lots of safety concerns were raised about agrochemical practices for controlling locusts. Also, exploring alternative biocontrol agents has become inevitability needed for locust management (Lomer et al. 2001). Biological control using antagonists has proven to be one of the most promising alternatives, either alone or as part of an integrated pest management policy, to reduce pesticide use (Bacon and Hinton 2002; Spadaro and Gullino 2004). In this respect, the 16S rRNA gene sequence analysis is an efficient method for specific identification of antagonistic bacteria on the genus level (Woese et al. 1985 and Clarridge 2004). Moreover, it clearly distinguishes the phylogenetic analytical differences between the newly identified isolates and other related strains (Woese et al. 1985). Bacterial insecticides have been developed for the control of lepidopteran, dipteran, and coleopteran pests. Some articles indicated that Bacillus cereus has been used successfully as a microbial control agent against the grubs of Amphimallon solstitiale, Melolontha melolontha, Anomala dimidiate, and Holotrichia seticollis (Sezen et al. 2005; Selvakumar et al. 2007 and Sushil et al. 2008). PCR primers were designed for the identification of 23 isolates via genotyping genes of phosphatidylcholine-specific phospholipase C, phosphatidylinositol-specific phospholipase C, immune inhibitor A, and vegetative insecticidal protein 3A (Guttmann and Ellar 2000).
The objective of the present work was to evaluate the antagonistic characteristics of two bacterial isolates against nymphal stage of the desert locust. In addition, the two isolates were identified, using 16S rRNA gene sequence analysis.
Source of used insects
Nymphs and adults of desert locust Schistocerca gregaria, reared in locust laboratory at Department of Locust and Grasshoppers Research, Plant Protection Research Institute, Agricultural Research Center, Dokki, Giza, Egypt, were examined daily for separation of the dead from the infected ones (presented certain symptoms that suggest bacterial infection; those become flaccid, lethargic, reddish or brownish, and stop feeding). Separated insects were brought in sterilized tubes to Microbiological Resources Center (MIRCEN) at the Faculty of Agriculture, Ain Shams University, Cairo, Egypt, for identifying the microbial causative of the symptoms.
Isolation of bacteria from infected insects
Dead and infected nymphs and adults were placed separately in sterile tubes and transferred to the microbiology lab for bacterial isolation. Isolation was carried out through three procedures: “body surface, internal swap, and dead locust paste.” Body surface of dead/infected locusts was ascetically swapped by sterilized swap into 10 ml of sterilized distilled water, and then streaking was conducted on nutrient agar plates. Internal swap was also taken from midgut and the cavity of dead/infected locusts into 10 ml of sterilized distilled water and then streaking was performed on nutrient agar plates. Dead locust paste was ascetically swapped and directly streaked on nutrient agar plates. All the plates were incubated at 28 °C/72 h. Distinguished isolates were picked up based on colony color and its morphological characteristics. Streaking was repeated three times on nutrient agar plates every 72 h for each selected colony. Isolates were examined by microscopic observation for parasporal inclusions and gram staining. All purified isolates were subjected to bioassay.
Screening for bioactive bacterial isolates against locust
Preparation of different cell concentrations (CFU/ml) of the two selected isolates used in leaf dipping technique
Stock solution (CFU/ml)
539 × 106
269 × 106
134 × 106
67 × 106
33 × 106
23 × 106
11.5 × 106
5.7 × 106
2.8 × 106
1.4 × 106
Preparation of different cell concentrations (CFU/ml) of the two selected isolates used in per os technique
Stock solution (CFU/ml)
1078 × 106
539 × 106
270 × 106
135 × 106
67 × 106
467 × 106
233 × 106
117 × 106
58 × 106
29 × 106
Preparation of bacterial stock solution
A culture from each selected isolate at a fixed cell concentration of colony-forming units (CFUs) and graduate dilutions was prepared according to Mashtoly et al. (2010 and 2011). One hundred milliliters of nutrient broth media was inoculated by each isolate and incubated overnight in 250 ml baffled flasks at 30 °C with a rotary agitation (150 rpm). Exponentially growing cells (~ 1 × 106cells/ml) were harvested by centrifuging broth culture at 4000 rpm/15 min/4 °C. The supernatants were disposed off, and pellets were washed twice by suspending cells in 40 ml phosphate buffer saline (PBS). Pellets were resuspended in 40 ml PBS, and absorbance of cell suspension was measured at 600 nm using an Eppendorf bio photometer 8.5 mm light center. A plate count of each isolate cell suspension was conducted in nutrient agar at 30 °C for 48 h with serial dilutions of cell suspension. All measures were performed in triplicate, and the mean values were used to measure colony-forming units that correspond to absorption at 600 nm. Bacterial concentrations used in bioassays were expressed as colony-forming units per milliliter.
Each pure culture of the two selected isolates was subjected to Gram stain test. Parasporal and inclusion bodies test was done using a light microscope to detect for spores and crystals for each individual effective isolate. One hundred milliliters of nutrient broth media was inoculated by one loop of each isolate and incubated at 30 °C with a rotary agitation of 150 rpm for 4 days. Fifty microliters of each cell suspension were placed on glass slide, covered, and examined by the × 100 lens of the light microscope.
A leaf dipping and per os bioassay techniques were used to evaluate the susceptibility of 4th nymphal instar of desert locust to the selected bacterial isolates.
Leaf dipping technique
Stock solution of the selected isolates was prepared, and colony-forming units per milliliter and four graduate dilutions were used as shown in Table 1. Calculation and use of these concentrations were suggested by preliminary bracketing bioassays (unpublished data). Adequate fresh sticks and leaves of clover were immersed in each bacterial concentration and water, as control treatment, for 3 min with gentle agitation, ensuring that the entire surface was immersed equally in suspended insecticides, and then allowed to dry at ambient temperature for 10 min. Treated sticks and leaves of the same isolate were introduced to three sets (replicates) of ten 4th instar nymph individuals. Nymphs in each replicate were placed in individual small wooden frame (30-cm-long, 18-cm-width, and 20-cm-height) with wire gauze in front and top for easy usage. Replicates were kept under the same rearing laboratory conditions. Control trial followed the same procedure, except using water instead of the bacterial suspension. Sticks and leaves were dipped in autoclaved distilled water and then allowed to dry, then introduced to 30 nymphs. Daily examination of treated and control insects was recorded to determine mortality rates which were subjected to statistical analysis.
Per os technique
Stock solutions of the two selected isolates were prepared, and cell concentration (CFU/ml) of each isolate was calculated. Serial dilutions of each were prepared and used per os as shown in Table 2. These concentrations were used after preliminary bioassays. All dilutions were expressed as colony-forming units per milliliter and administered per os via 1 cm Hamilton syringe equipped with 27-gauge needle to 4th instar nymph of S. gregaria. Per os treatment was done using different doses of cell concentrations in 0.2 ml (200 μl) per individual insect and subsequently for other strain. Five nymphs 4th instar were treated, and each of them was used as an individual replicate. Daily examination of treated and control trials was recorded. Mortality rates were recorded and subjected to statistical analysis.
Obtained mortalities of each of the two experiments were pooled together then subjected to probit analysis using the PROC PROBIT Statistical Analysis program Version 9.4. The average of control mortality (%) was 7.5%. Toxicity regression lines were drawn using Sigma Plot 12. When comparing LC50 values, a failure of 95% confidence limits to overlap was used as a measure to determine significant differences between treatments. In all cases, the likelihood ratio (L.R.) chi-square goodness-of-fit values indicated that the data adequately conformed to the probit model.
Molecular identification of the bacterial isolates using 16S rRNA sequencing: 16S rRNA genes amplification
Extraction of genomic DNA was conducted, using Promega Wizard® Genomic DNA Purification Kit. Amplification of 16S rRNA gene. One set of universal Primers 27F (5′- AGA GTT TGA TCM TGG CTC AG -3′); 1492R (5′- TAC GGY TAC CTT GTT ACG ACT T -3′) were used to amplify and sequence 500 bp of target 16S rRNA. Primers used for sequencing were 518F (5′- CCA GCA GCC GCG GTA ATA CG-3′); 800R (5’-TAC CAG GGT ATC TAA TCC-3′). The primer was synthesized and purchased from integrated DNA Technologies, Inc. Amplification was conducted using PTC-100TM Programmable thermal controller (MJ Research, Inc.) with a PCR mixture of 45 μl Platinum PCR Super Mix 1.1X (Invitrogen Crop.), 1.0 μl of each forward and reverse primer, and three of target DNA in a final volume of 50 μl. The anti-Taq polymerase DNA antibody, Mg++dNTPs, and recombinant Taq DNA polymerase were adjusted at concentrations sufficient to allow amplification during PCR process. The cycling conditions consisted of initial denaturation at 94 °C for 45 s, annealing at 55 °C for 60 s, and extension at 72 °C for 3 min with a final extension at 72 °C for 10 min. Blanks were routinely contained all components of the PCR reaction mixture, except the DNA template. PCR products were subjected to 2% agarose gels with 5 μl of SYBR® safe DNA gel stain (Invitrogen Corp.) in electrophoresis running buffer (0.2) M Tris base, 0.1 M Sodium acetate, 0.01 M NA2.EDTA, at PH 7.8). Digital images were obtained using a BIO-RAD Universal Hood ‖ ChemiDocTM CheXRS molecular imager and Mitsubishi P93 printer.
Gene sequencing and phylogenetic analysis
Amplified 16S rRNA genes were purified using QIA quick PCR Purification Kit (Qiagen), following the manufacturer’s instructions via spin-column technology with the selective binding properties of a uniquely designed silica membrane. Binding buffer (PB), washing buffer (PE), and elution buffer (EB) provided were optimized for efficient recovery of DNA. PCR products were also purified using Montage PCR Clean up kit (Millipore). Elution efficiency was strongly dependent on salt concentration and pH values of the elution buffer. Contrary to adsorption, elution was the most efficient under basic conditions with a low salt concentration. DNA was eluted with 30 μl, applied to the column center, of buffer EB (10 mM Tris. C1, Ph 8.5) or Ultra-pure DNAse/RNAse free water and then the column was incubated for 1 min at room temperature; the maximum elution efficiency was achieved between pH 7.0 and 8.5.The sequencing of the purified PCR products of approximately 1400 bp was carried out in the Macrogen sequencing service. Sequencing was performed using Big Dye terminator cycle sequencing kit (Applied BioSystems, USA). 16S rRNA genes sequences were resolved on an Applied BiosyStems model 3730XL automated DNA sequencing system (Applied BioSystems, USA) and analyzed by Sequence Scanner Version: 1.0(c) copyright Applied Biosystem. 2005. NCBI database at (https://blast.ncbi.nlm.nih.gov) was used to compare 16S rRNA gene sequences of the present isolates with other 16S rRNA sequences (Altschul et al, 1990). Multiple sequences were aligned using the CLUSTAL W program against corresponding nucleotide sequences (Thompson et al. 1994). This would display the closest matches to respective 16S rDNA sequences for identifying known species. Sequence analysis and Phylogenetic tree construction were then conducted using the Molecular Evolutionary Genetics Analysis (MEGA) software version 7. Partial 16S rRNA gene sequences of isolate DL3 and DL4 were compared with other 16S rRNA sequences of valid microbial strains published in NCBI database at (https://blast.ncbi.nlm.nih.gov).
Isolation and screening for bioactive isolates against desert locust
Isolation of the bacteria from the infected locusts resulted in 30 isolates (data not shown), of which the two, DL3 and DL4, were selected based on their bioactivity against the pest. These two isolates were used in the following experiments.
Bioassays of the two tested bacterial strains against desert locust
Toxicity values of DL3 and DL4 isolates to 4th nymphal instar of S. gregaria using leaf dipping technique
73 × 106 b
55 × 106–92 × 106
2 × 106 a
1 × 106–3 × 106
Toxicity values of DL3 and DL4 isolates to 4th instar nymphs of S. gregaria using per os technique
181 × 106 a
60 × 106–374 × 106
39 × 106 a
14 × 106–74 × 106
Molecular identification of bacterial isolates using 16S rRNA sequencing technique
16S rRNA genes sequence analysis and phylogenetic tree

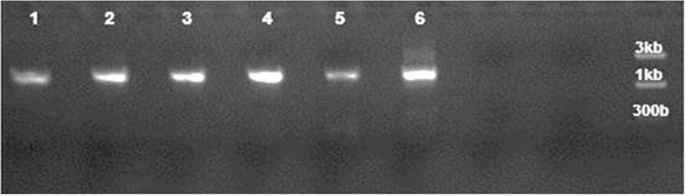

Universal PCR offers a great advantage for the identification of actinomycetes (Provost et al. 1997). Amplicons resulting from primer pairs were selected for the identification of isolates DL3 and DL4. The genus Bacillus was found to be the predominant identified bacteria when sequences were blasted against nucleotide database using a nucleotide query algorithm. The partial 16S rRNA gene sequence is already deposited in the GenBank under the accession number KY630646 and KY630647, respectively.
CCGCACAAGCGGTGGAGCATGTGGTTTAATTCGAAGCAACGCGAAGAACCTTACCAGGTCTTGACATCCTCTGACAACCCTAGAGATAGGGCTTCTCCTTCGGGAGCAGAGTGACAGGTGGTGCATGGTTGTCGTCAGCTCGTGTCGTGAGATGTTGGGTTAAGTCCCGCAACGAGCGCAACCCTTGATCTTAGTTGCCATCATTAAGTTGGGCACTCTAAGGTGACTGCCGGTGACAAACCGGAGGAAGGTGGGGATGACGTCAAATCATCATGCCCCTTATGACCTGGGCTACACACGTGCTACAATGGACGGTACAAAGAGCTGCAAGACCGCGAGGTGGAGCTAATCTCATAAAACCGTTCTCAGTTCGGATTGTAGGCTGCAACTCGCCTACATGAAGCTGGAATCGCTAGTAATCGCGGATCAGCATGCCGCGGTGAATACGTTCCCGGGCCTTGTACACACCGCCCGTCACACCACGAGAGTT and GAGTGATGAAGGCTTTCGGGTCGTAAAACTCTGTTGTTAGGGAAGAACAAGTGCTAGTTGAATAAGCTGGCACCTTGACGGTACCTAACCAGAAAGCCACGGCTAACTACGTGCCAGCAGCCGCGGTAATACGTAGGTGGCAAGCGTTATCCGGAATTATTGGGCGTAAAGCGCGCGCAGGTGGTTTCTTAAGTCTGATGTGAAAGCCCACGGCTCAACCGTGGAGGGTCATTGGAAACTGGGAGACTTGAGTGCAGAAGAGGAAAGTGGAATTCCATGTGTAGCGGTGAAATGCGTAGAGATATGGAGGAACACCAGTGGCGAAGGCGACTTTCTGGTCTGTAACTGACACTGAGGCGCGAAAGCGTGGGGAGCAAACAGGATTAGATACCCTGGTAGTCCACGCCGTAAACGATGAGTGCTAAGTGTTAGAGGGTTTCCGCCCTTTAGTGCTGAAGTTAACGCATTAAGCACTCCGCCTGGAGACGCCGAACGTG, respectively.
B. cereus strain WGPSB-2 was reported to cause 92 and 67% mortality in grubs of A. dimidiate and H. seticollis, respectively (Selvakumar et al. 2007 and Sushil et al. 2008). The insecticidal property of B. cereus has been attributed to the production of the lipase toxin phospholipase C (Lysenko 1972a, 1972b) and the paralytic toxin sphingomyelinase C (Nishiwaki et al. 2004). A complete mortality (100%) occurred to desert locust when subjected to a cell density of 539 × 106 DL3 and 23 × 106 DL4 after 48 h and 3 days, respectively. The body color of locust converted throughout the lethal treatment with antagonistic bacterial isolates from red to dark red and finally black when decomposed. B. cereus has the ability of producing enteric toxins that have agronomically useful traits such as antibiotic production.
Two Bacillus cereus isolated from infected desert nymphs in Egypt have the potential to be very efficient if they were formulated as biopesticide formulation and be part of the integrated locust management system to decrease the quantities of chemical synthetic pesticides usually used for this target.
Our bacteria were successfully isolated and identified to the species level, but further research needs to be done to confirm the strains level and to characterize the type of toxin excrete for each isolate and involved in causing sepsis in desert locust nymphs.
The authors wish to express their deep appreciation and gratitude to Dr. Ashraf Marzouk, Microbiology technician of Microbiological Resources Center (MIRCEN), Faculty of Agriculture, Ain Shams University, for helping in the laboratory experiment.
Availability of data and materials
The authors declare that they have no objection to the availability of data and materials.
MR and TAM carried out the microbiology stuff such as isolation of the entomopathogenic bacteria from the dead/infected locusts, bacterial purification, and then preparation of the bacterial suspension in order to bioassay them. Also, they carried out the molecular identification of the promised isolates. MESEZ carried out the experimental design and revised the final manuscript. AA participated in the sequence alignment. GMA participated with MR and TAM in the bioassay trials and statistical analysis and then drafted the manuscript. All authors read and approved the final manuscript.
The authors declare that they have no competing interests.
